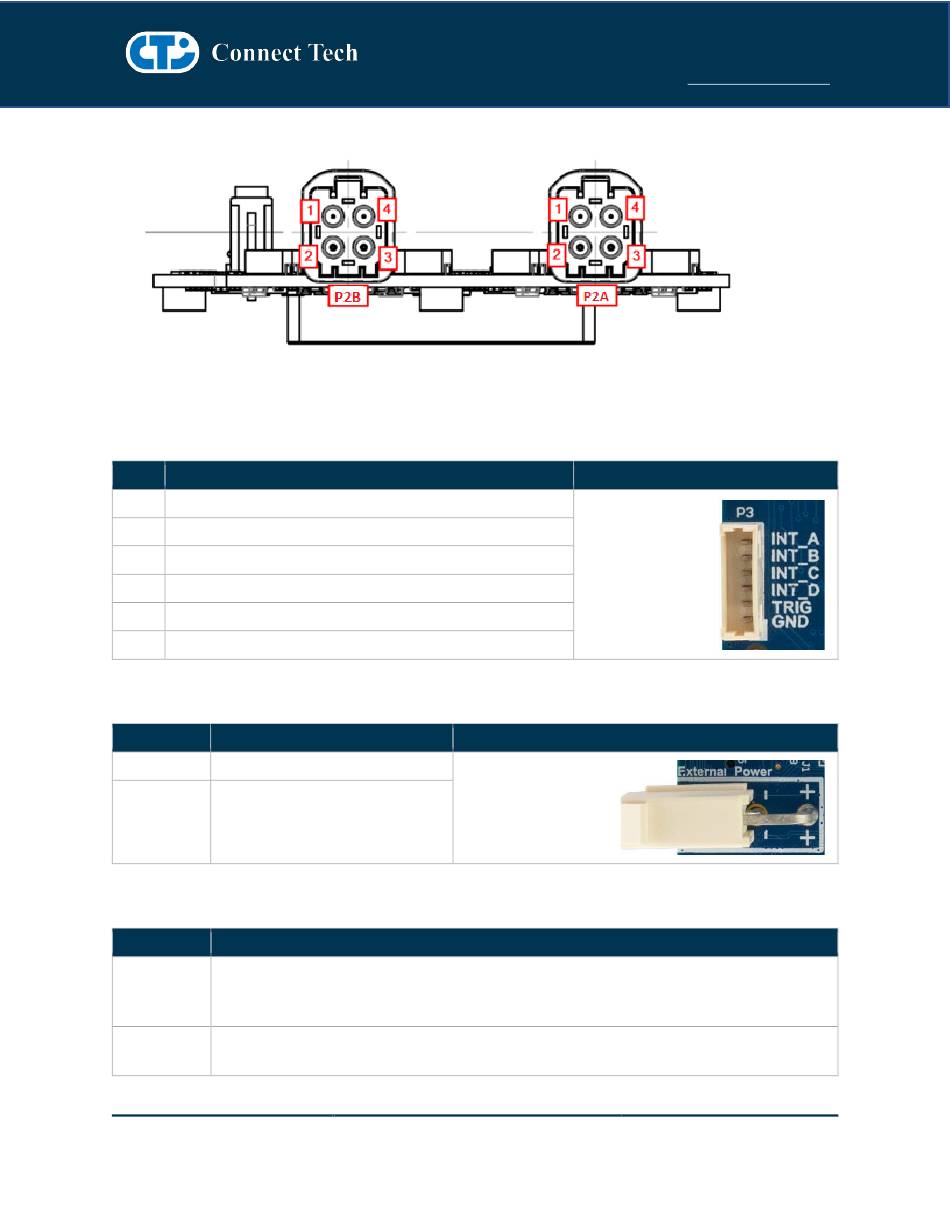

[P2] FPDLINK and Software Development

Note: refer to block diagram for camera port and MIPI lane mapping.

[P3] IO Connector

Pin
1 GND
2 External Trigger. Direction programmable via J1 Jumper.
3 Interrupt GPIO to Deserializer D
4 Interrupt GPIO to Deserializer C
5 Interrupt GPIO to Deserializer B
6 Interrupt GPIO to Deserializer A

[J1] External Power Connector

Pin
1 (Bottom) GND
2 (Top) +9V to +24V
*External Power will always be priority if it is
within valid voltage range

[J2] Trigger Control Jumper

Status
Off PWM Trigger direction is set to output (software still necessary to enable output signal)
PWM Trigger source comes from P1 Pin 78 - PWM01 (From NVIDIA® Jetson AGX Xavier™
or Jetson AGX Orin™ carrier/module)
On PWM Trigger direction is set to input
PWM Trigger source comes from P3 Pin 2
Document: CTIM-00061
Revision: 0.00
Description
Description
PN: 87427-0202
Mate: 24513502##
Page 12 of 17
NVIDIA® Jetson™ FPD-Link III Camera Platform
Connector
PN: 53047-0610
Mate: 15134-06##
Connector
Function
Users Guide
www.connecttech.com
Date: 2023-02-07
