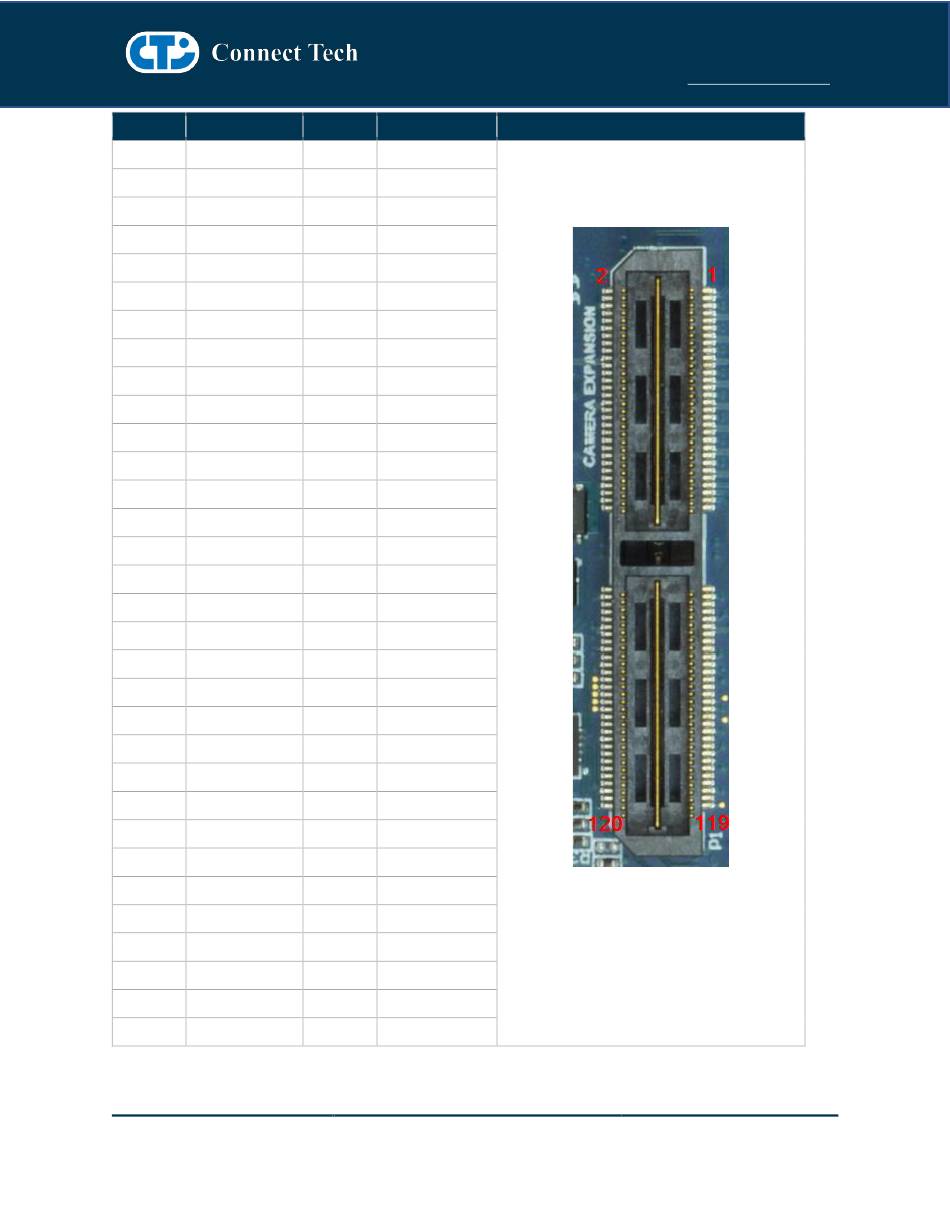

Connect Tech FPD-Link III User Manual page 11

Pin Description
[1]
57 +12V
59 CSI5_D0_P
61 CSI5_D0_N
63 GND
65 CSI5_CLK_P
67 CSI5_CLK_N
69 GND
71 CSI5_D1_P
73 CSI5_D1_N
75 I2C3_SCL
77 I2C3_SDA
79 GND
81 NC
83 NC
85 NC
87 NC
89 NC
91 NC
93 CAM0_PWDN
95 CAM0_RST#
97 NC
99 GND
101 NC
[2]
103 CAM_INT3
105 I2C4_SCL
107 I2C4_SDA
109 NC
111 NC
113 NC
115 GND
[2]
117 CAM_INT1
119 CAM_AVDD_EN
[2]
Descriptions in yellow
AGX Orin™.
Document: CTIM-00061
Revision: 0.00
Pin Description
[1]
58 +12V
60 CSI7_D0_P
62 CSI7_D0_N
64 GND
66 CSI7_CLK_P
68 CSI7_CLK_N
70 GND
72 CSI7_D1_P
74 CSI7_D1_N
76 NC
78 PWM01
80 GND
82 NC
84 NC
86 GPIO_INT
88 NC
90 CAM1_PWDN
92 CAM1_RST#
94 NC
96 NC
98 NC
100 GND
102 +1.8V
[2]
104 CAM_INT4
[2]
106 CAM_INT2
108 +3.3V
110 +3.3V
112 NC
114 NC
116 GND
118 NC
120 NC
are not available on all Connect Tech Carriers for Jetson AGX Xavier™ or
Page 11 of 17
NVIDIA® Jetson™ FPD-Link III Camera Platform
www.connecttech.com
Date: 2023-02-07
Users Guide
