2-5 IDE Connector Installation

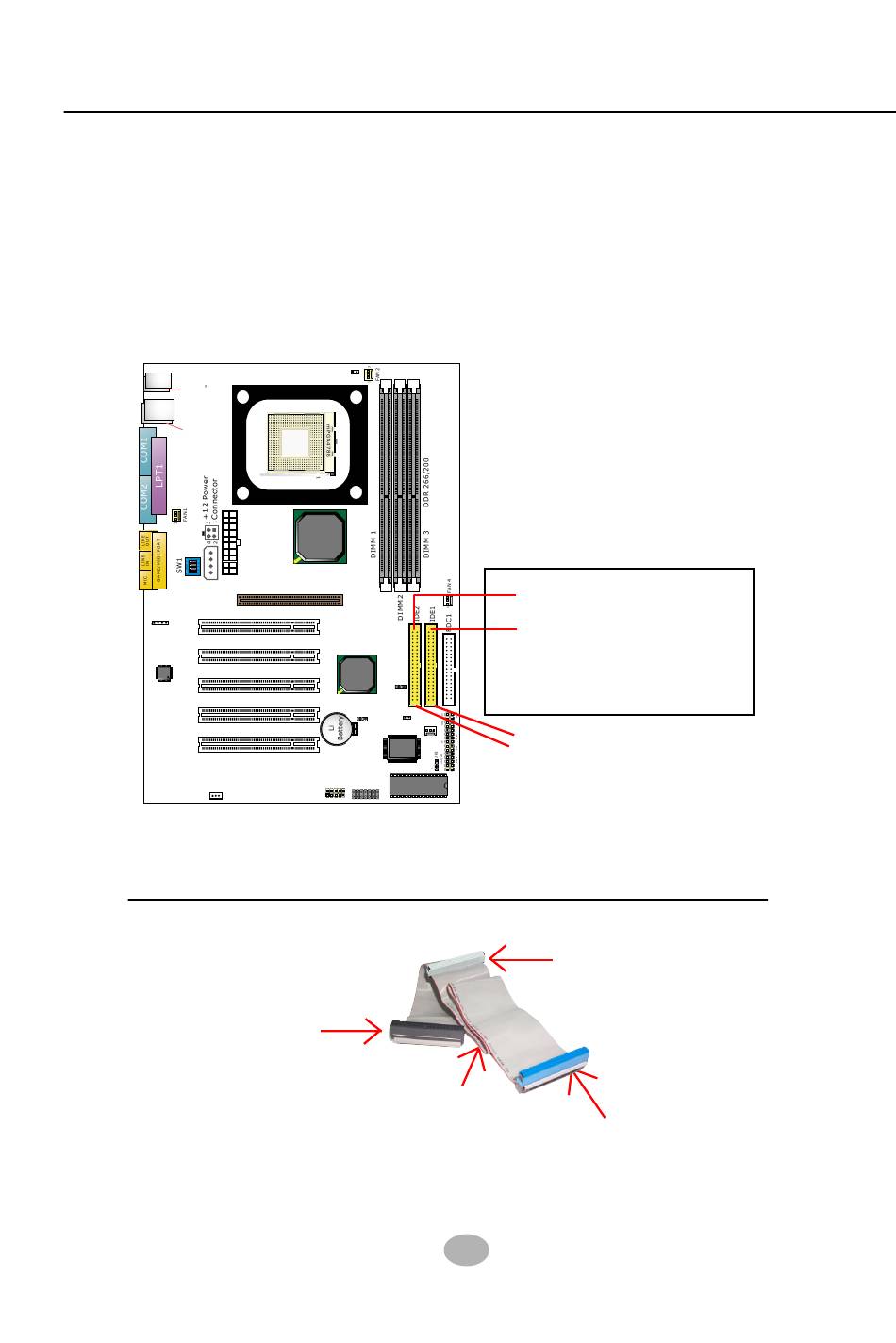

To install IDE Connector, you may connect the blue connector of IDE
cable to the primary (IDE1) or secondary(IDE2) connector on board,
and then connect the gray connector to your slave device and the black
connector to your master device. If you install two hard disks, you must
configure the second drive to Slave mode by setting its jumpers correctly.
Please refer to your hard disk documentation for the jumper settings.
