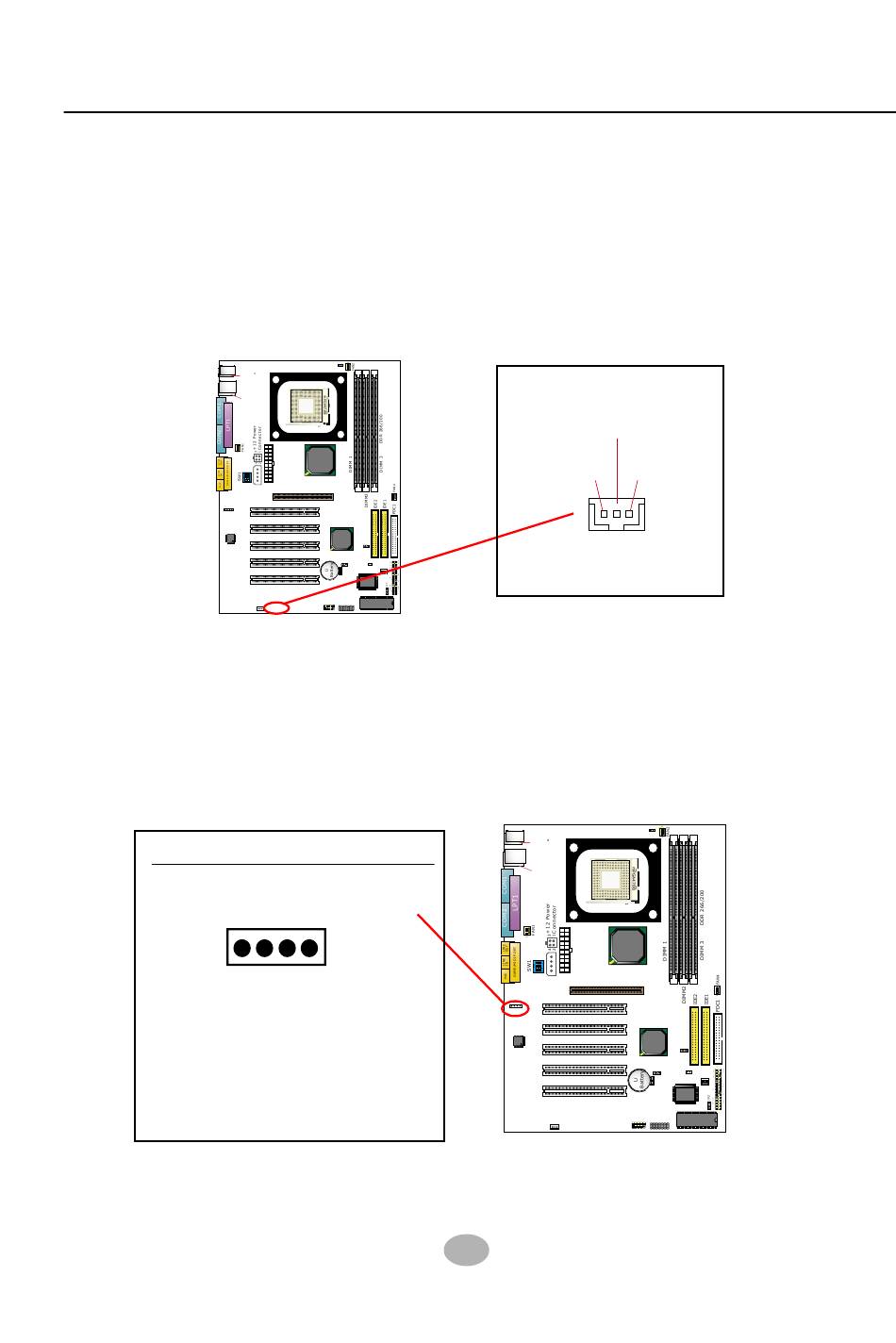

2-9.2 Connector WOL1: Wake On LAN
1. This connector connects to a LAN card with a Ring signal output.
The connector powers up the system when it receives a wake-up
packet or signal through the LAN card.
2. This feature requires that Resume On Ring feature is enabled in the
BIOS setting "Power Management Setup" and that your system must
be on ATX power supply with at least 720mA / +5V standby power.
PS/2 Mouse
(on top)
PS/2 K/B
(underside)
USB0
(on top)
USB1 (underside)
Peripheral Power
Connector
1
CD1
AC'97
Codec
Audio Codec
1
2-9.3 CD-ROM Audio Connector (CD1)
CD-In1 is audio connector connecting CD-ROM audio to mainboard.
CD-ROM Audio Pin Assignment
Connector CD1
1
Pin 1 Left-Channel
Pin 2 GND
Pin 3 GND
Pin 4 Right-Channel
