SOLTEK 85DRV4-C Manual page 27

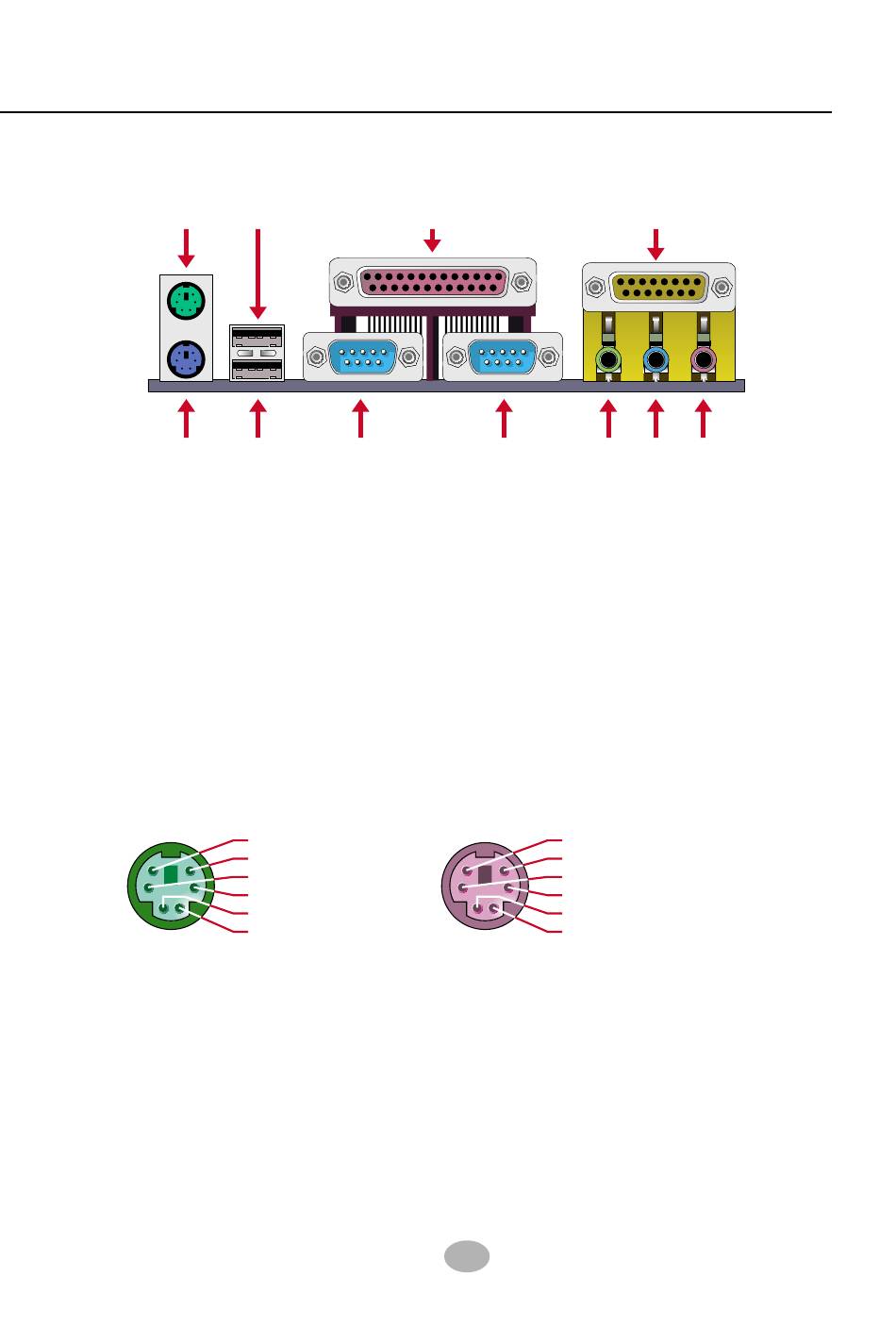

2-9.4 Chassis Panel Connectors
A. B.
E. F.
A : PS/2 MOUSE PORT
B : USB 0 (0n top)
C : LPT1 PORT
D : GAME/MIDI PORT
E : PS/2 KEYBOARD PORT
F : USB 1 PORT (Bottom)
2-9.5 PS/2 Mouse And PS/2 Keyboard
PIN 6 : Void
PIN 5 : Mouse Clock
PIN 4 : Vcc
PIN 3 : GND
PIN 2 : Void
PIN 1 : Mouse Data
PS/2 MOUSE
C.
G. H.
G : COM1 Port
H : COM2 PORT
I : LINE Out
J : LINE IN
K : MICROPHONE INPUT
PS/2 KEYBOARD
31
Chapter 2 Hardware Setup
D.
I. J. K.
PIN 6 : Void
PIN 5 : Keyboard Clock
PIN 4 : Vcc
PIN 3 : GND
PIN 2 : Void
PIN 1 : Keyboard Data
