2-9 Other Connectors Configuration
This section lists out all connectors configurations for users' reference.

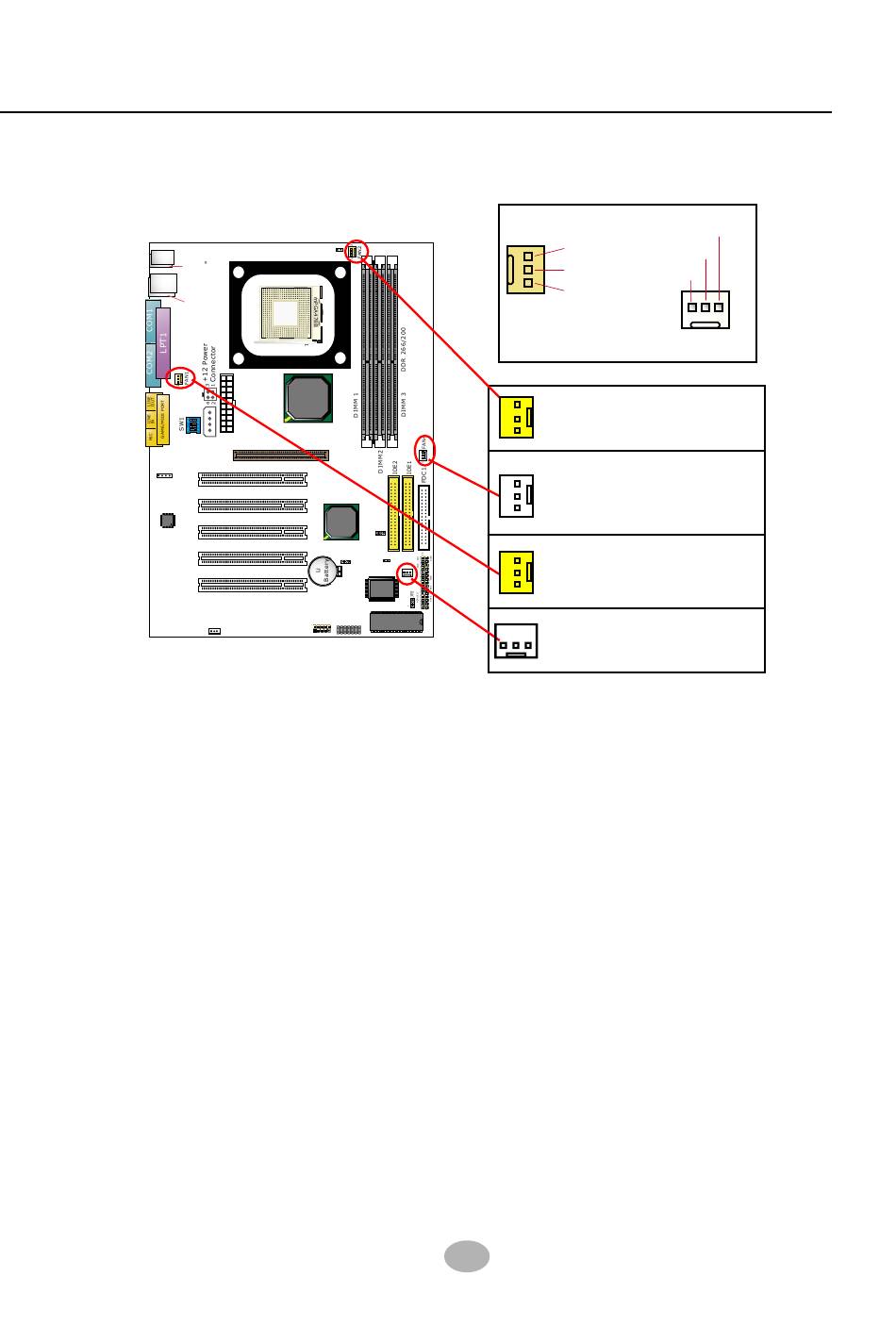

2-9.1 On-board FAN Connectors
PS/2 Mouse
(on top)
PS/2 K/B
(underside)
USB0
(on top)
USB1 (underside)
Main Power
Connector
Peripheral Power
AGP 4X/2X
Connector
1
CD1
AC'97
Codec
Audio Codec
WOL1
1
Both Sensor and No-sensor Fan Connectors support CPU/AGP/Sys-
tem/Case cooling fan with +12V mode. When connecting the wire to
any Fan Connector, user should make sure that the red wire is for the
positive current and should be connected to pin +12V, and the black
wire is Ground and should be connected to pin GND. A Hardware Moni-
tor chipset is on board, with which user can install a Hardware Monitor
Utility and read the fan speed transmitted from the sensor fan. Otherwise,
user can read the fan speed from the "Hardware Monitor Status" in
CMOS BIOS.
A running fan will send out 2 electric pulses per rotation of its fan
blade. A Sensor Fan Connector will count the electric pulses and send
the information to the System Hardware Monitor which in turn will work
out the fan rotation speed and display it on screen.
