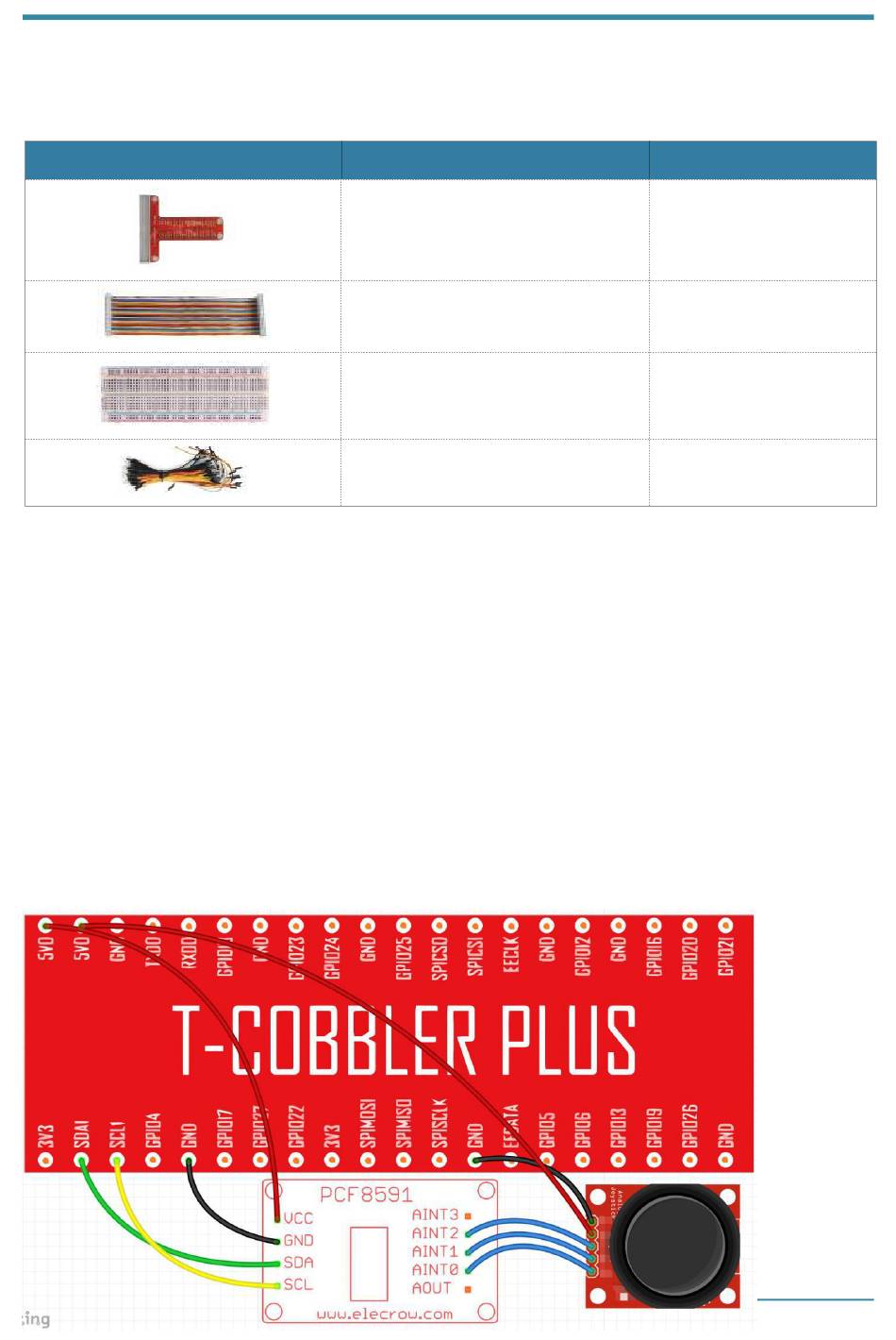

Material diagram
Connection Diagram
The Joystick have 5 pins, 2 of them are the GND and the VCC which goes to 5V pin. The rest are VRX, VRY and SW.
make sure to connect those pins to the right place on the PCF8591 module.
The SW goes to AINT0, VRY goes to AINT1 and VRX goes to AINT2.
Material Name
T-Cubbler Plus
40P GPIO Cable
Breadboard
Jumper wires
91 of 114
Number (amount)
1
1
1
Several
