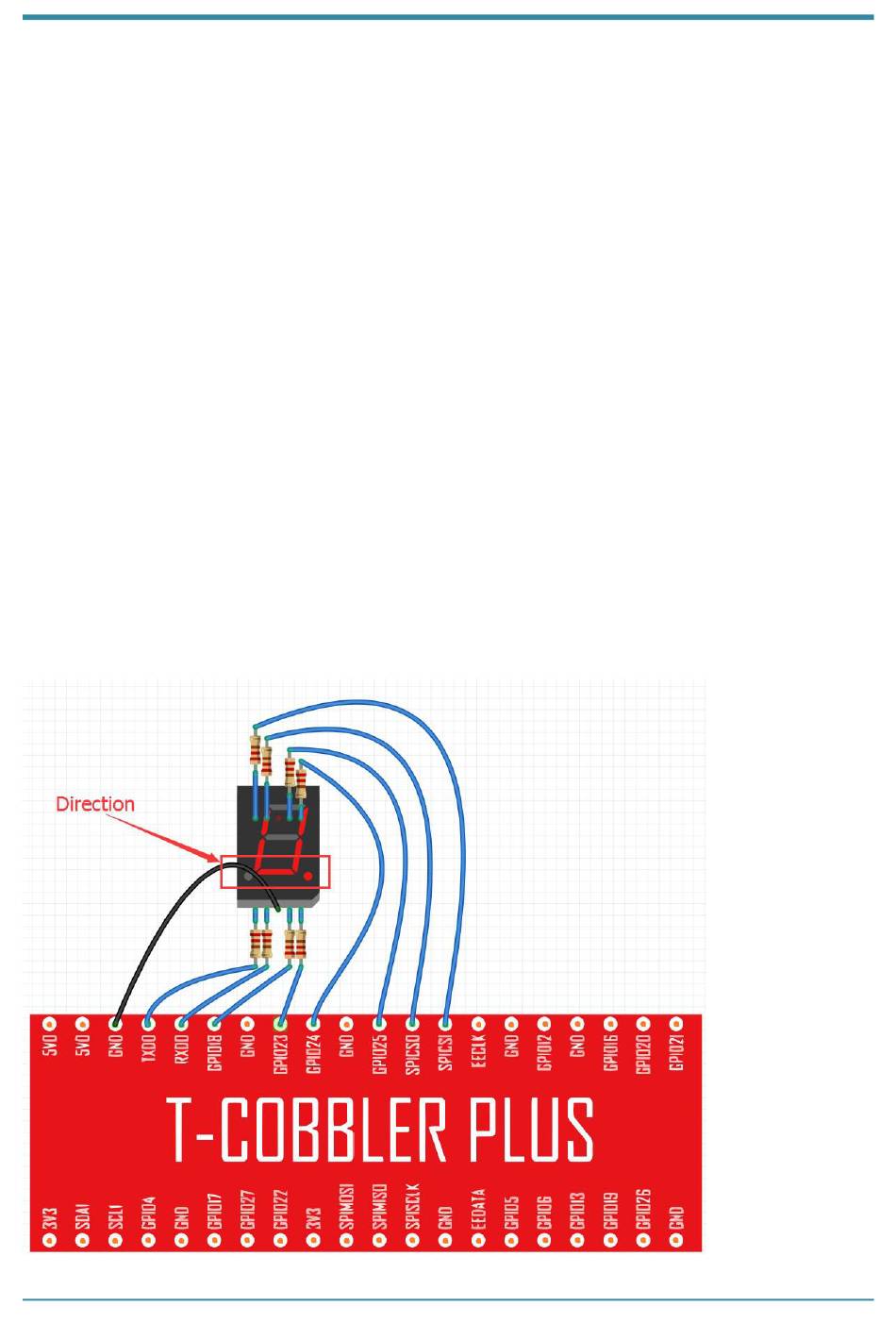

Connection Diagram
As we can see the wiring diagram can be a little bit overwhelming.
Take it slowly, following the letters and the pin definition picture we've showed before to connect it properly. Please
note the small dot on the segment LED that tells you which direction the segment LED should be pointed at.
The dot should be pointed downstairs.
