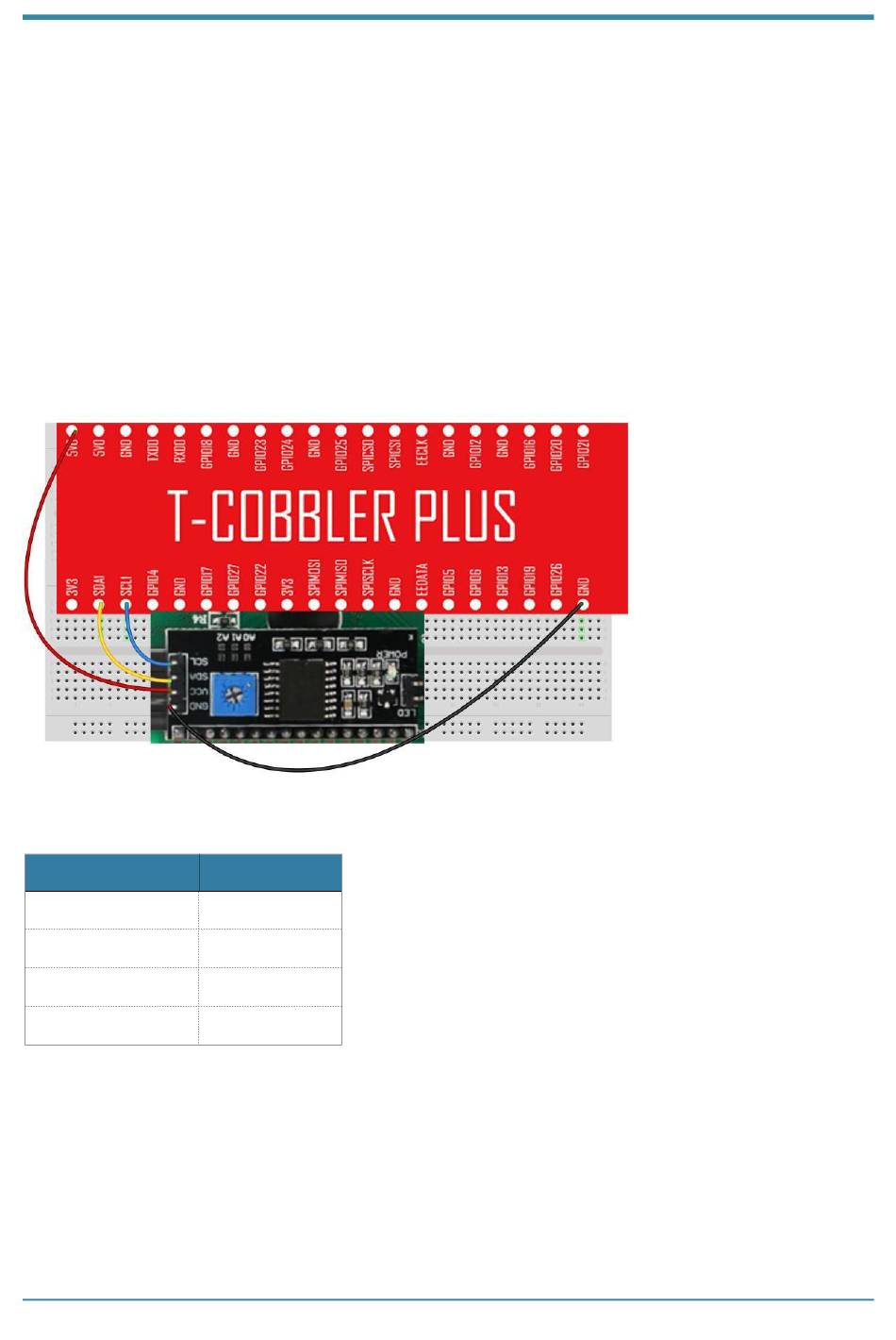

Connection Diagram
The connections are quite simple, make sure you put the SDA and SCL pin in the correct locations or you won't be
able to see any data on the LCD display.
We don't need any resistors here so you can connect it directly to the raspberry pi without any problems.
Connection
LCD1602
GND
VCC
SDA
SCL
Raspberry Pi
GND
5V
SDA1
SCL1
