Spectralink DECT Server 2500 Installation Guide

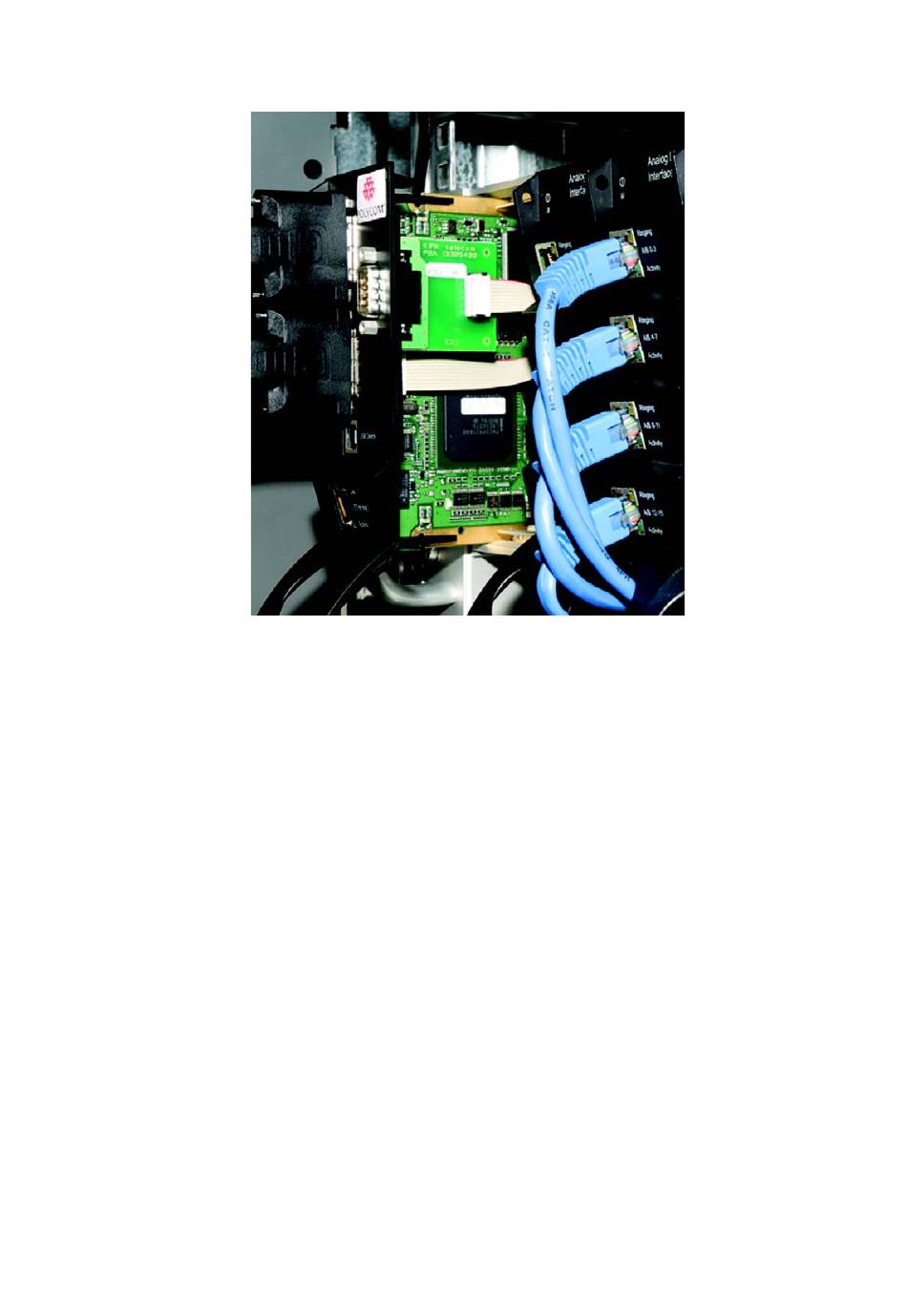

Figure 9
Installing CPU card
1
Plug the interface cables into the card as described in
2
Connect the Spectralink DECT Server 2500 to a PC using the RS232 cable.
3
Connect the power and reboot the unit.
Connecting Interface Cables
The front interface of the Spectralink DECT Server 2500 is provided with connectors for the
different interfaces provided. Please see the Spectralink DECT Server 2500 Configuration Guide
for the actual pin-out of the different connectors.
The cables can be harnessed in two ways as shown in the following figures depending on the
installation requirements.
14205700 Version 9.0
June, 2015
Connecting Interface
Cables.
13
