Using an external debug tool to program and debug the on-board STM32

To support an external debug tool, set the jumper (JP1) to isolate the output I/O from STLINK-V3EC. Then
connect the external debug tool through the STDC14/MIPI10 debug connector (CN4).
When using the external debug connector (CN4), it is possible to use the STLINK-V3EC USB connector (CN1) to
supply the Nucleo-64 board or select another power supply source as described in
power
selection.

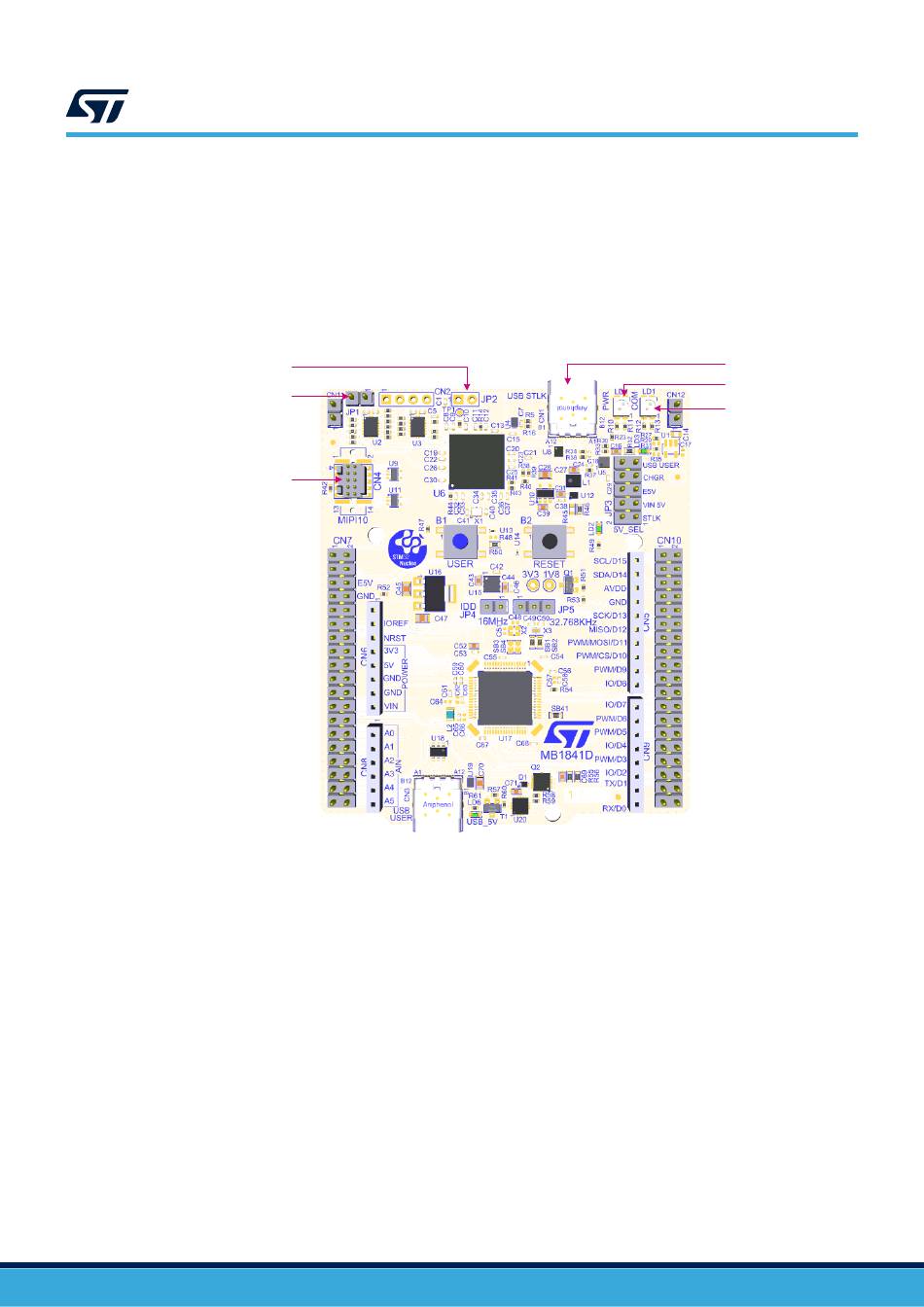

Figure 7.
STLK_NRST (JP2)
Debugger selection (JP1)
MIPI10 (CN4)
UM3062 - Rev 1
Connecting an external debug tool to program the on-board STM32 microcontroller
STM32
microcontroller
UM3062
Embedded STLINK-V3EC
Section 6.4 Power supply and
USB STLINK-V3EC (CN1)
STLK PWR LED (LD4)
STLK COM LED (LD1)
page 15/45
