7.2

ST morpho headers (CN7 and CN10)

The ST morpho connector consists of CN7 and CN10 2.54‑pitch male pin header. They can be used to connect
the STM32 Nucleo-64 board to an extension or a prototype/wrapping board placed on top of it. All signals and
power pins of the STM32 are available on the ST morpho connector. An oscilloscope, a logic analyzer, or a
voltmeter can also probe this connector.
ST morpho header
Table 17
shows the pin assignments for the STM32 on the ST morpho connector.
UM3062 - Rev 1

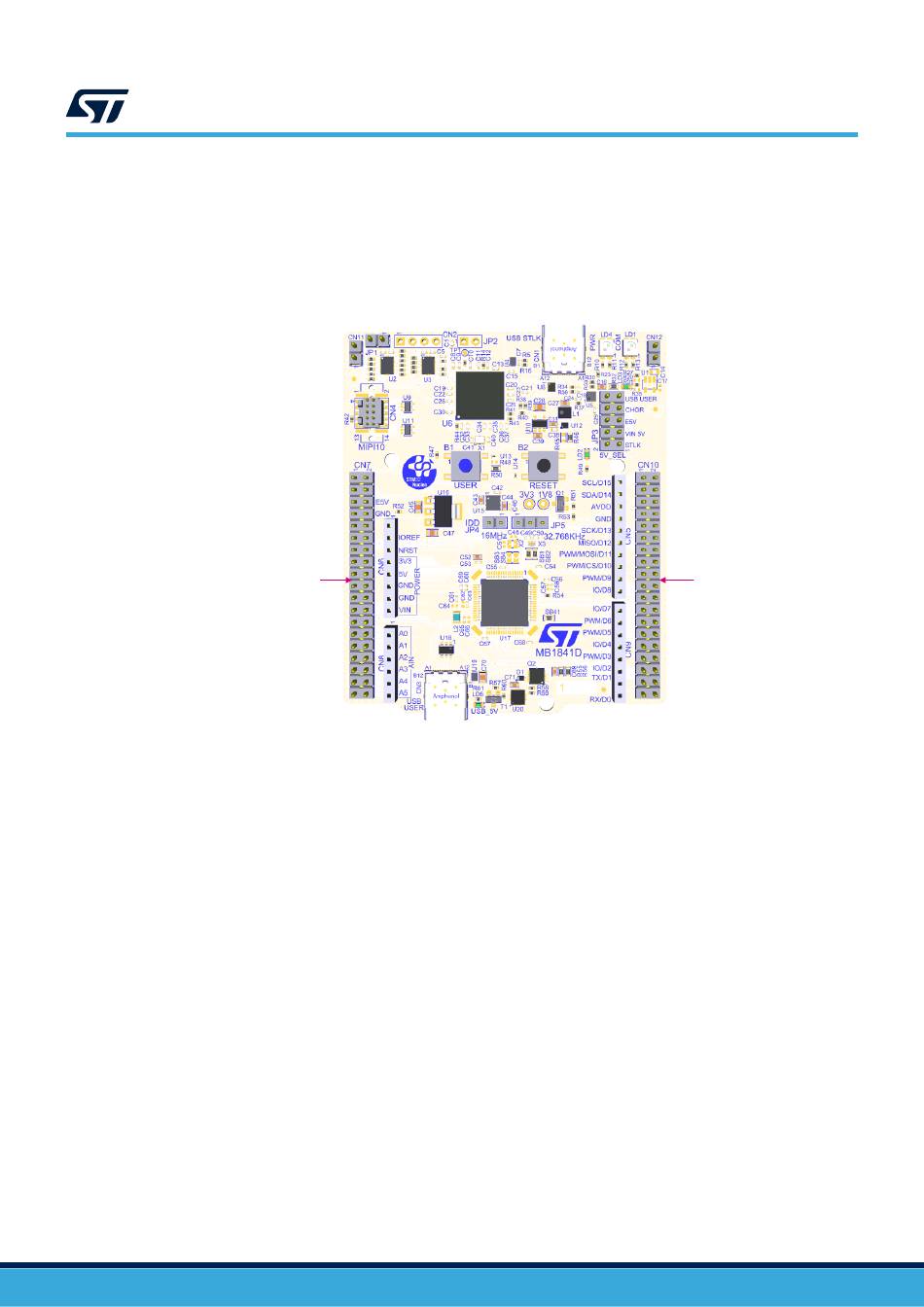

Figure 16.
(CN7)
ST morpho connector
UM3062
ST morpho headers (CN7 and CN10)
ST morpho header
(CN10)
page 34/45
