Figure 11. 5V Jumper Selection Jp3[5-6]: E5V Power Source - ST STM32U5 Nucleo-64 User Manual

E5V is the DC power coming from an external 5 V dc power source from the ST morpho connector (CN7) pin 6.
The 5V jumper selection (JP3) must be on pin [5-6] to select the E5V power source on the JP3 connector and
must be connected as shown in
ST morpho connector
(CN7 – Pin 6)
UM3062 - Rev 1

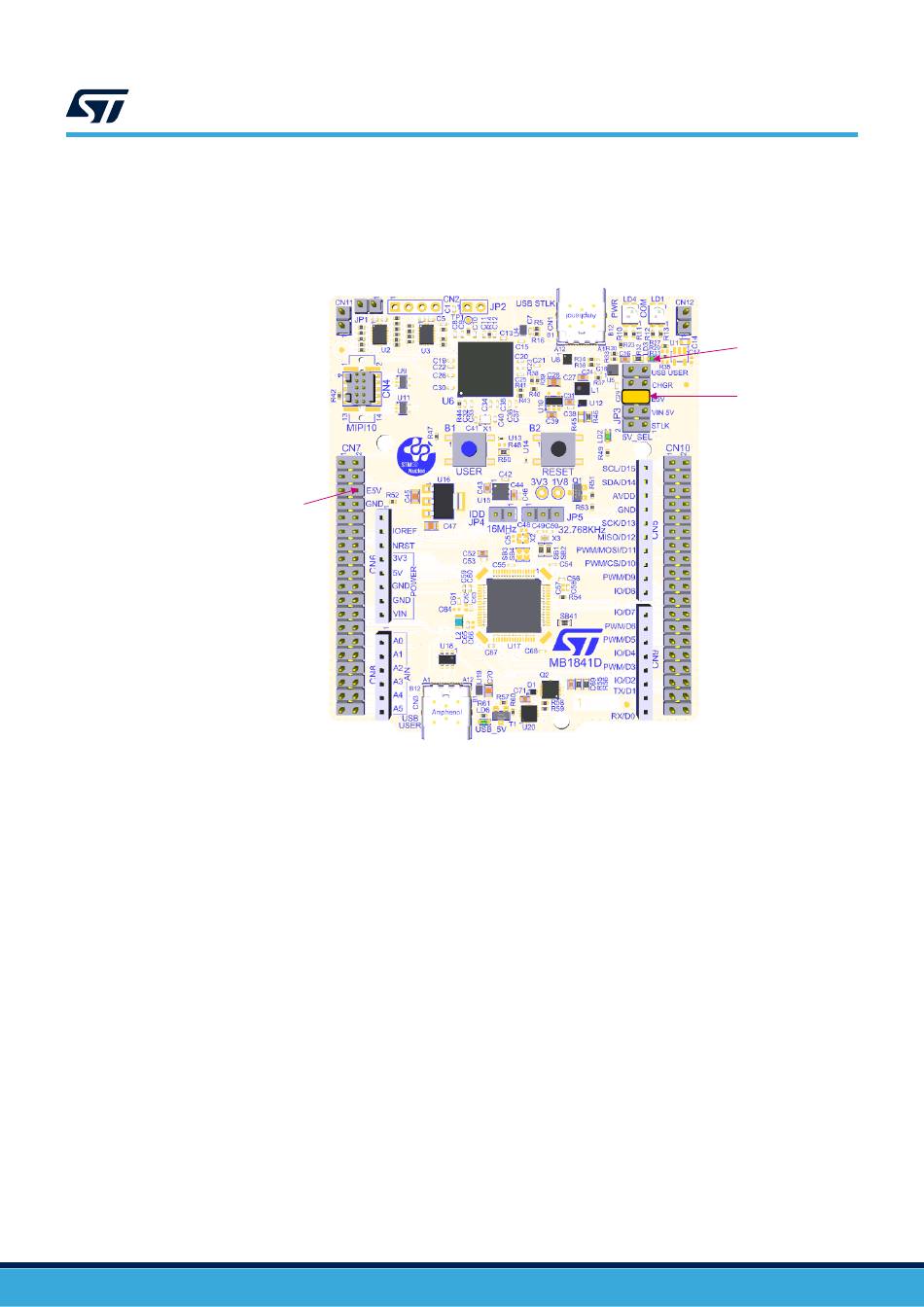

Figure 11. 5V jumper selection JP3[5-6]: E5V power
Figure 11. 5V jumper selection JP3[5-6]: E5V power source
Power supply and power selection
STM32
microcontroller
UM3062
source.
5V LED (LD3)
E5V selection
(JP3 [5-6])
