UG-845

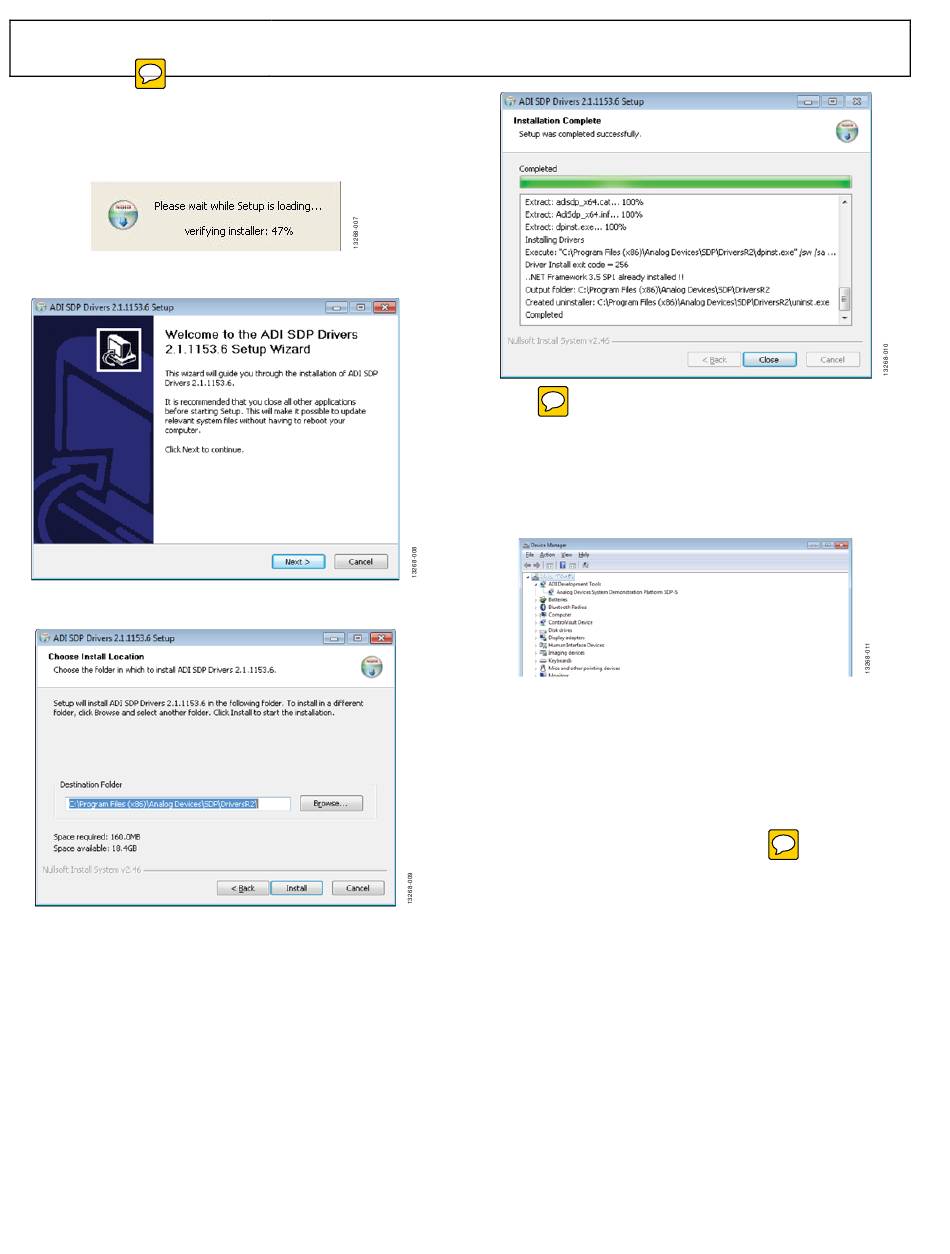

The second sequence of the software installation installs the
system demonstration platform (SDP) drivers for the SDP-S
board (see Figure 7 to Figure 10). These drivers must be
installed for the evaluation board to function correctly.
Figure 7. Installation for SDP Drivers Starting
Figure 8. Click Next > to Install the SDP Drivers
Figure 9. Choose Install Location (Default Folder Shown)
AD8450-EVALZ/ADP1972-EVALZ User Guide
Figure 10. Click Close to Complete Installation
When the SDP-S board is first plugged into the PC via the USB
cable provided, allow the new Found Hardware Wizard to run.
Check that the drivers and the board are connected correctly by
looking at the Device Manager of the PC. If connected correctly,
the Analog Devices System Development Platform SDP-S
appears under ADI Development Tools (see Figure 11).
BOARD OPERATION AND CONNECTION SEQUENCE
The following is the board operation and connection sequence:
1.
Connect the SDP-S controller board to the evaluation
board with the J4 connector (screw into place as required).
2.
Power the board with appropriate supply as described in
the Powering the System section.
3.
Connect an electronic load or battery.
4.
Connect the board to the PC with the USB cable.
5.
To launch the software, click Start > All Programs >
Analog Devices > AD8450 System Demo > AD8450-
ADP1972 Demo.
6.
Configure the set points and use the software to monitor
the battery state.
Rev. 0 | Page 8 of 33
Figure 11. Device Manager
