The second part of the software installation is the drivers
related to the SDP-S board (see Figure 7 to Figure 10). These
drivers must be installed for the evaluation board to function
correctly.

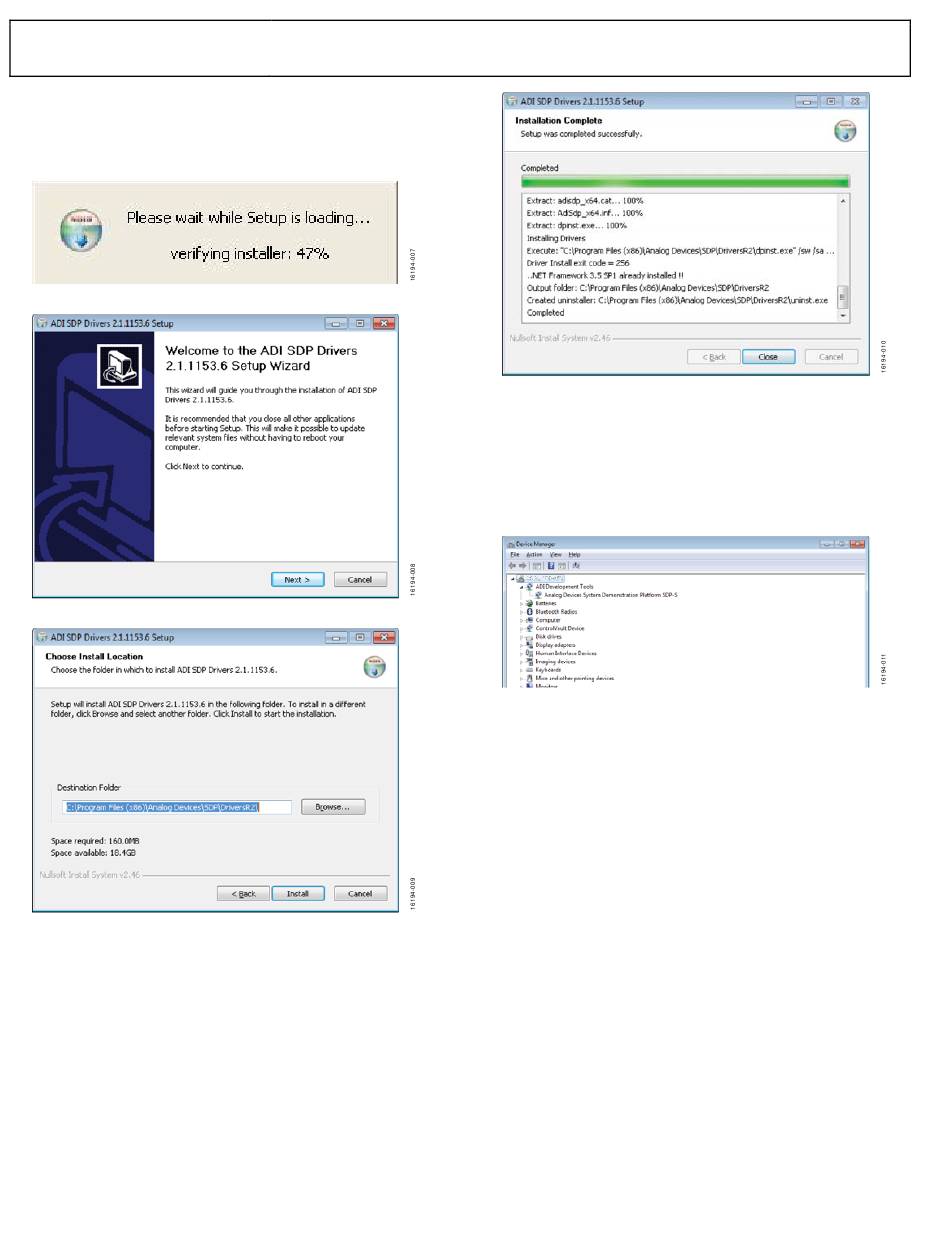

Figure 7. Installation for SDP Drivers Starting
Figure 8. Click Next > to Install the SDP Drivers
Figure 9. Choose Install Location (Default Folder Shown)
AD8452
Figure 10. Click Close to Complete Installation
When the SDP-S
cable provided, allow the new Found Hardware Wizard to run.
Check that the drivers and the board are connected correctly by
looking at the Device Manager of the PC. The Analog Devices
System Development Platform SDP-S appears under ADI
Development Tools (see Figure 11).

BOARD OPERATION/CONNECTION SEQUENCE

The following is the board operation/connection sequence:
1. Connect the
board with the J7 connector (screw into place as required).
2. Power the board with the appropriate supply as described
in the Powering the System section.
3. Connect an electronic load or battery.
4. Connect the
5. To launch the software, click Start, All Programs,
Analog Devices, AD8452_SystemDemoBoard,
AD845_SystemDemoBoard.
6. Configure the set points and use the software to monitor
the battery state.
Rev. 0 | Page 8 of 32
System Demo User Guide
board is first plugged into the PC via the USB
Figure 11. Device Manager
SDP-S controller board to the analog interface
SDP-S board to the PC with the USB cable.
