Hardware Configuration Controls
As indicated in the main window, the hardware configuration
controls must reflect the actual configuration of the power stage
and analog control boards. If there is a mismatch between the
settings in these controls and the actual hardware configuration,
excessive current can be sourced into (or sunk from) the battery.
ADC Range (V) is the nominal ADC input range, with a
default of 5 V.
DAC Range(V) is the nominal DAC output range, with a
default of 5 V.
AD8450-EVALZ/ADP1972-EVALZ User Guide
Sense Resistor (Ohms) is the nominal value of the sense resistor
on the power stage board. The default is 0.002 Ω (2 mΩ).
Current Sense Gain is the gain setting for the
programmable gain current sense instrumentation amplifier.
The default value is 66.
Voltage Sense Gain is the gain setting for the
programmable gain differential voltage sense amplifier.
The default is 0.8.
Clicking Reset Ahr Meter resets the amp-hour counter in the
main window to 0.

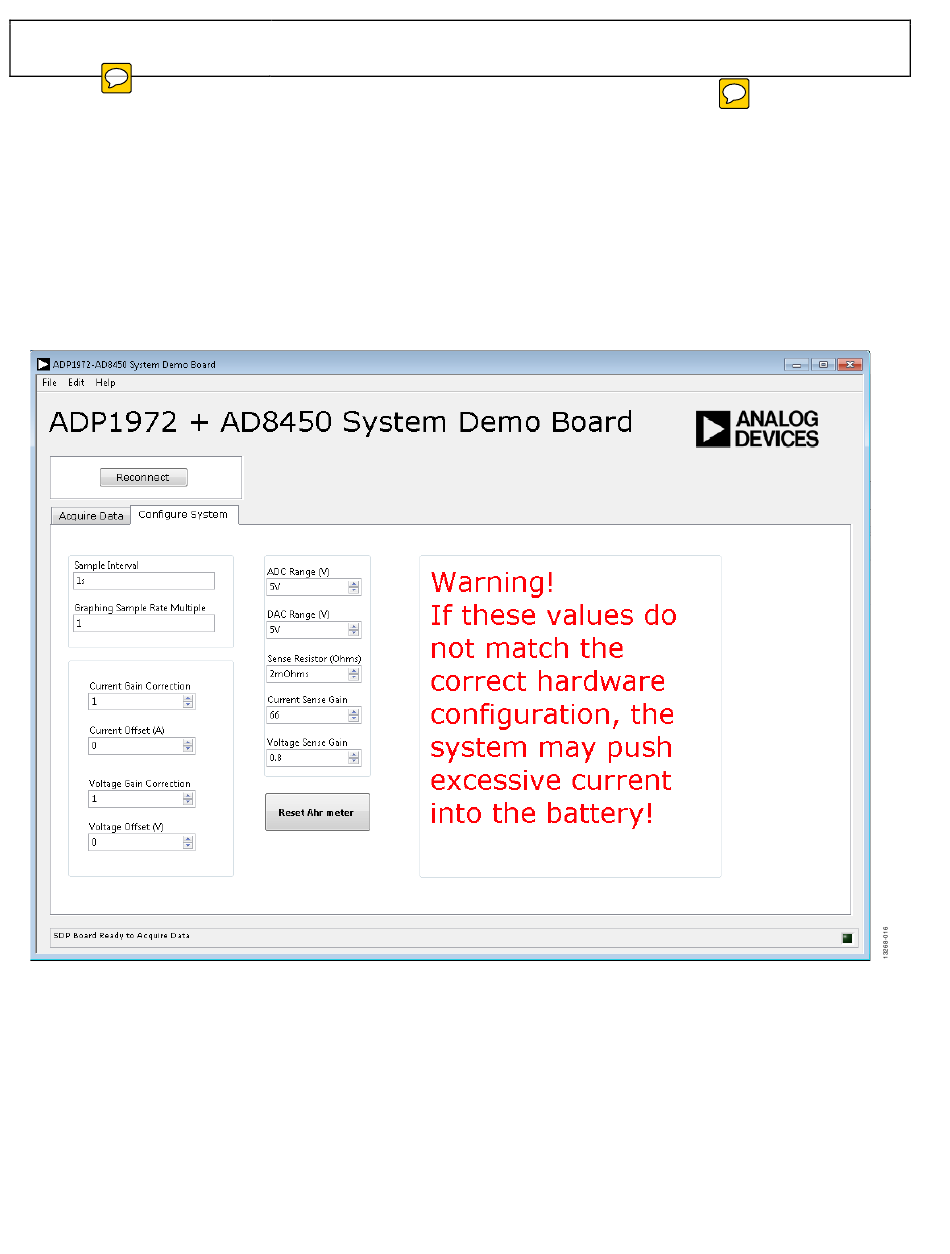

Figure 16. Configuration Tab
