TRANSPORT

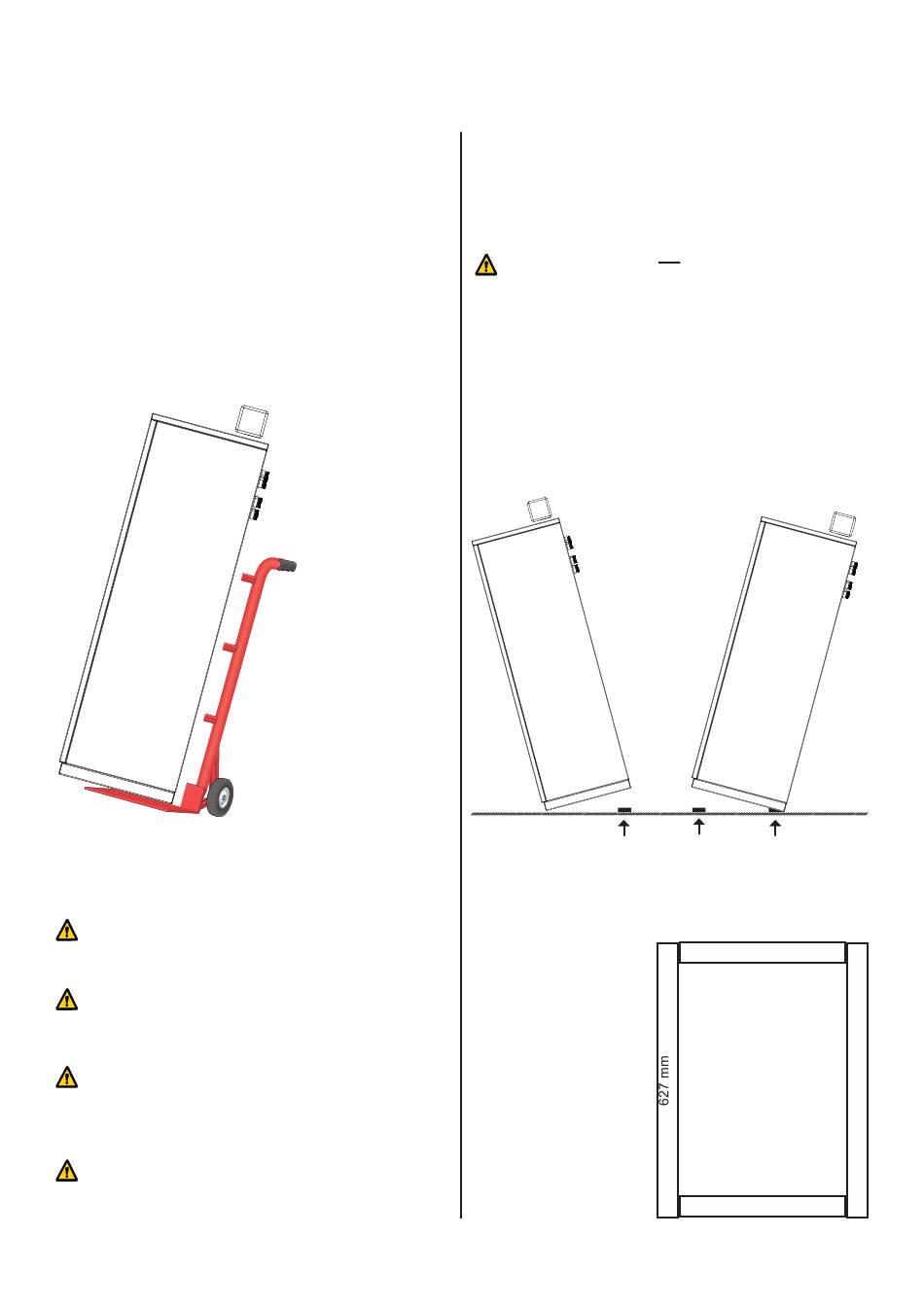

Transport with the hand truck
We recommend to lift out the front panel (reduction in weight).
Then put the heat pump on the hand truck and transport it to the
final destination.
We recommend to transport the device on the rear side.
Care for the hand truck not to damage the hydraulic
connections.
Secure the heat pump on the hand truck against
slipping down.
To avoid damage, the heat pump must not be inclined
by more than 45° during the transportation.
The components and pipework of the refrigeration
circle, the heating side and the heat source side must
on no account be used for lifting purposes.
Consider the weight of the heat pump!
(See technical data sheet)
6
The heat pump must be installed on a sustainable and horizontal
underground. Small unevenness may be cleared by the enclosed
sylomer strips.
The location for the heat pump must be frost-protected and dry.
The heat pump must not be installed on a PUR foam
boiler platform.
Underlaying of the heat pump with sylomer
strips
The heat pump will be underlaid with sylomer strips to achieve
more stability and less noise development.
Tilt the heat pump at the installation site to underlay the four
sylomer strips flush with the outer edge of the device.
-
We reserve the right to make technical changes -

INSTALLATION

380 mm
