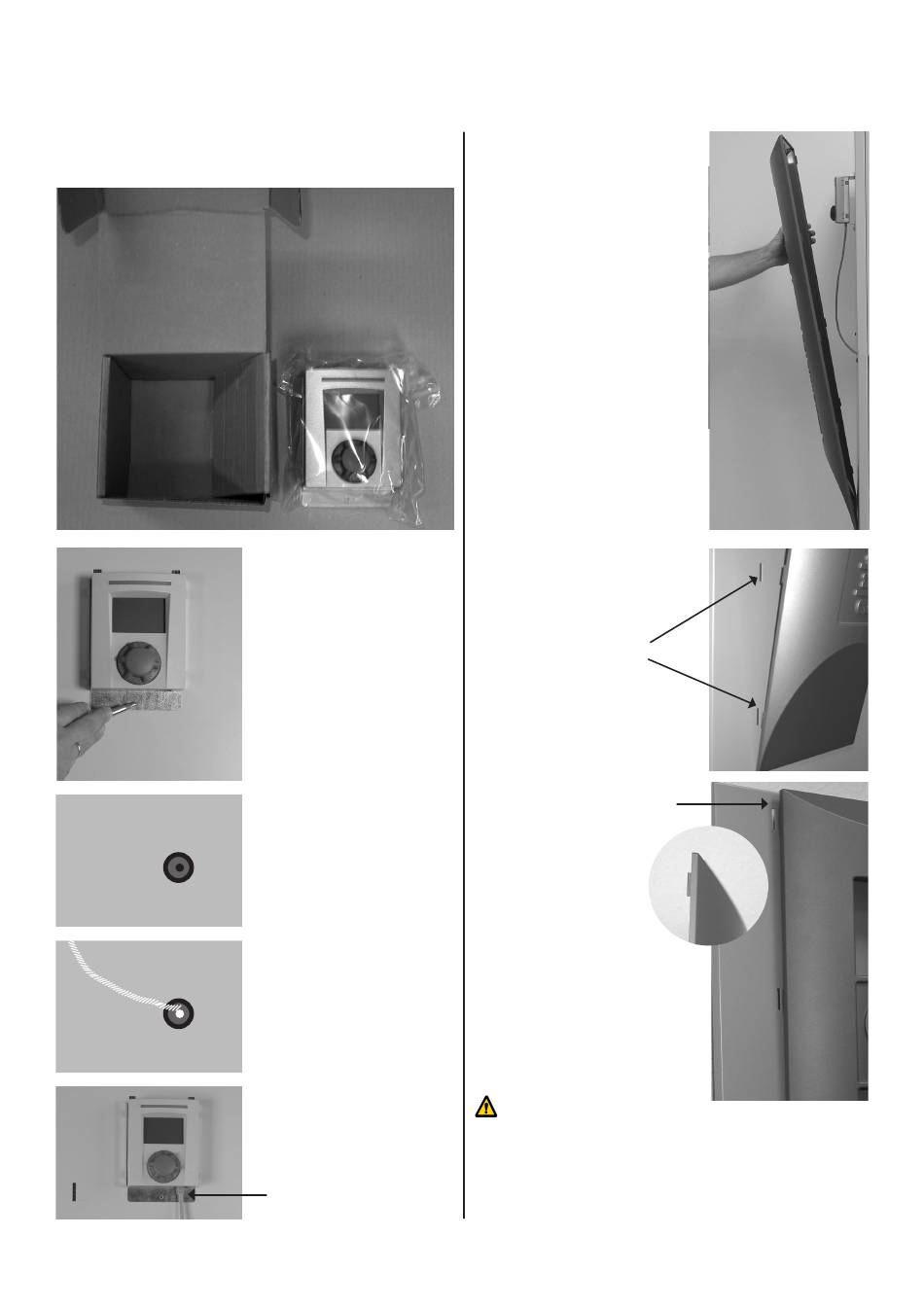

THE OPERATING PART
The operating part is included:
14
Hang up the operating part
in the two square spaces of
the front panel.
Lead the cable from the
switching room (inside)
through the cable entry point
at the front plate....
... outward ..
... ....and plug it in the
operating part below.
-
We reserve the right to make technical changes -
For securing the screen, no tools
are required!
It can be fixed at the front panel
without any screws.
Attach the screen to the lowest
fixing lugs.
Secure the LOCK-NOZZLES on
one side bottom-up into the slots;
then secure the LOCK-NOZZLES
on the other side.
Once the upper lock-nozzles are
pressed on, the screen is
completely attached.
Note:
when taking off the screen, the lock-nozzles must on all
accounts be released in reverse, i.e. top-down.
The lower lock-nozzles are very tight and must be released by
pressing firmly against the centre of the screen to prevent them
from breaking!
8301147GB/160808
