Creality Laser Module Quick Start Manual page 15

10W 激光模组：请将多级定焦条放置在模组与加工材料之间， 按照定焦条表面的镭雕提示， 使激光模组护目罩底部与多级定焦
条对应位置相接触， 最后使用右侧的手拧螺丝将其锁紧。 例如雕刻或者切割 2mm 厚的椴木板或其它材料：

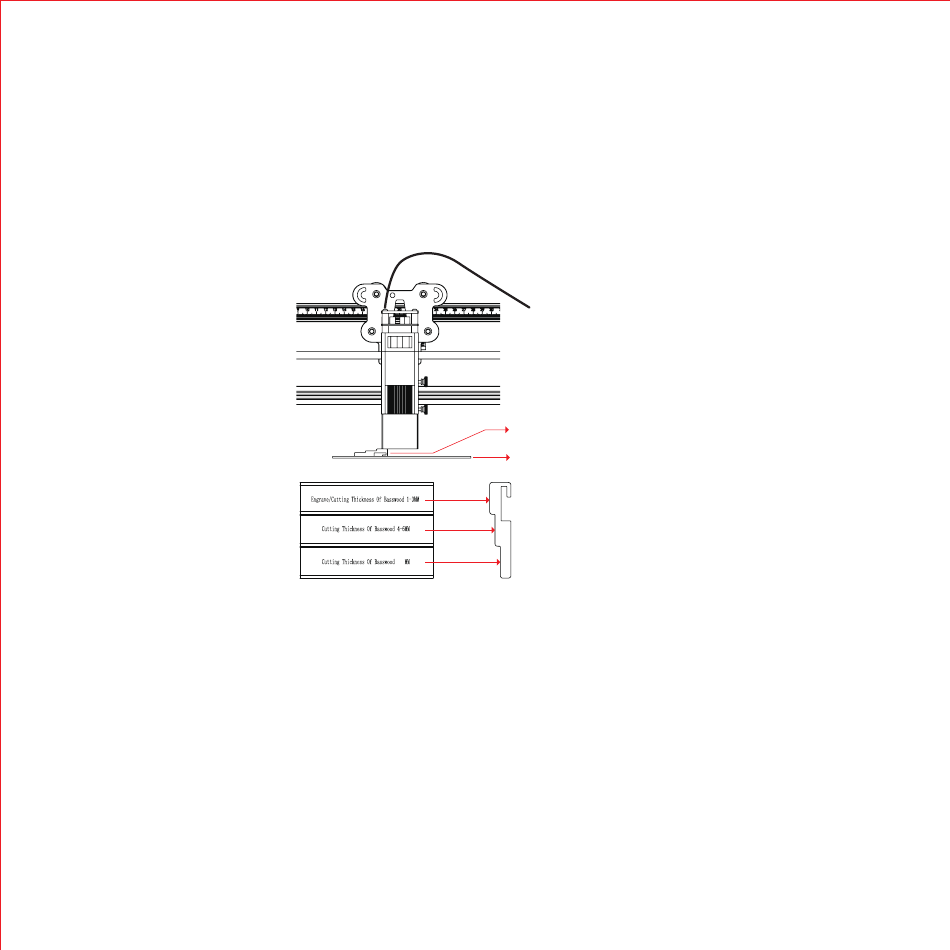

10W laser module: Please place the multi-level fixed focus bar between the laser module and the processed
material.Follow the tips and make the bottom of the laser module contact with the corresponding surface
of the multi-level fixed focus bar.Finally lock it with two hand screws on the right.For example,if you engrave
or cut a 2mm basswood or other material:
3. 修改 GRBL 配置参数。
3. Modify GRBL configuration parameters.
安装 LightBurn 软件， 成功添加机器后， 如果您机器的 X、 Y 打印尺寸不是 220mm， 则需要在控制台中修改 $130、 $131 这个两
个配置参数， 详情请参考 TF 卡 "LightBurn 用户指南"。
Install the LightBurn software, after adding the printer successfully, if the X and Y axis of your printer is not 220mm,
you need to modify the two configuration parameters of $130 and $131 in the console. For details, please refer to
the TF card file "User manual for LightBurn".
激光模组线
laser module cord
多级定焦条
Multi-level fixed focus bar
2mm 椴木板
2mm Basswood
