- Page 1 Create Realities, Realize Dreams HALOT-ONE HALOT-ONE 3D Printer User Manual V1.0...
- Page 2 Thank you for choosing Creality. For your convenience, please read through this User Manual before you started and follow the instructions provided carefully. Creality is always ready to provide you with high-quality services. If you encounter any issues or have any questions when using our products, please use the contact information at the end of this manual.
- Page 3 Instructions for Use Do not use this printer by methods or operations that are not described in this manual, otherwise it may result in accidental injury or property damage. Do not place this printer near flammable materials, explosive materials or high heat sources. Please place this printer in a ventilated, cool and low-dust environment. Do not place this printer in a vibrating or any other unstable environment, as the printing quality will be compromised when the printer shakes.
-
Page 4: Table Of Contents
Table of Contents 01-01 About the Printer Device Specifications 02-02 03-03 List of Parts 04-05 Installing the 3D Printer 06-10 Using the 3D Printer 11-13 First Printing 14-14 Remote Controlled Printing 15-15 Circuit Wiring 16-16 Troubleshooting... -
Page 5: About The Printer

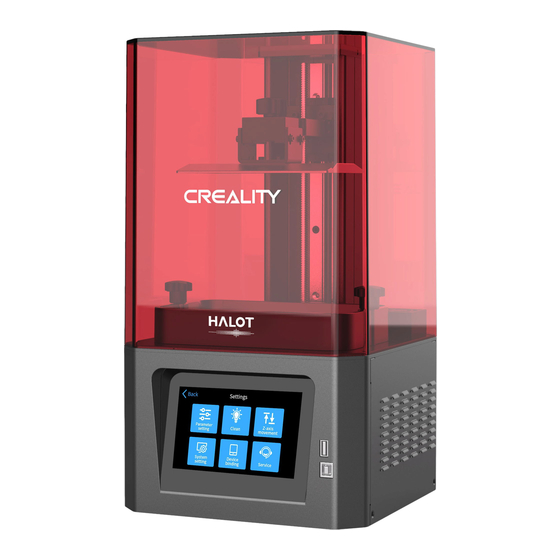

1. About the Printer USB Port Torx Head Screw Tray Leveling Screw Touch Screen Type-B USB Port Platform Limit Sensor Power Switch Tray Fixing Screw Air Filter Power Socket... -
Page 6: Device Specifications
295*295*545mm Net Weight 7.1KG Gross Weight 8.8KG Print Method USB Disk, Creality Cloud Machine Language 中文(简/繁)/ English/ Español/ Deutsche/ Français/ Pусский/ Português/ Italiano/ Türk/Nederlands/Polskie/日本語/한국어 Slicing Software Operation System Win7/Win8/Win10 64bit, Mac system(32-bit is not supported) Compatible Resin Common rigid photosensivie resin, Standard resin, Hight hardness,High toughness, Dental model resin. -
Page 7: List Of Parts
3. List of Parts Printing Platform x 1 Tray x 1 Printer x 1 List of Tool Kit Items USB Drive x 1 2#, 2.5#, 3# Screwdriver x 1 Paint Brush x 1 Paper Funnel x 4 Release Filmx 1 Metal Blade x 1 Power Cord x 1 Note: The components above are for reference only. - Page 8 4. Assemble the 3D Printer Remove the protective cotton above the printing screen as shown in the picture： 2.Remove the resin vat 1. Take out the machine 3.Remove the foam above the screen...
-
Page 9: Installing The 3D Printer
5. Installing the 3D Printer Printer x 1 Note: Embed the upper cover in the mainframe to complete the installation. Upper Cover x 1... -
Page 10: Using The 3D Printer
6. Interface Information Setting Note: The current interface is for reference only, due to the continuous upgrading of functions, the actual to the official website of the latest firmware Ul as the standard. - Page 11 7. Leveling the Platform 1 1. To calibrate the printing platform, first 2. loosen the four screws on the connection 3. After confirming that the A4 paper fits raise the platform, loosen the plastic head plate of the modeling platform board and evenly, tighten the four screws on the screws on the left and right sides of the press the A4 paper against the printing...
- Page 12 8. Leveling the Platform 2 Note: The current interface is for reference only, due to the continuous upgrading of functions, the actual to the official website of the latest firmware Ul as the standard.
- Page 13 9. Loading the Filament Pour the UV photosensitive resin for the 3D printer into the tray. Container capacity: 140 ml / 170 ml / 225 ml / 285 ml. 140ml 170ml 225ml 285ml Q&A: How can I replace the filament? Warning: Please wear gloves before loading the filament, as Gently remove the tray and pour the remaining resin into the container.
- Page 14 10. Replacing the Release Film Parameters Remove the 14 screws at the bottom of the filament Specifications tray to remove the worn-out release film. Take. Remove the protective film on both sides of the release film and take a new release film, and then place the new release film between the two steel rings.
-
Page 15: First Printing
file (You are welcome to find more details of slicing tutorial on the official website www.creality.com). Note: The current interface is for reference only, due to the continuous upgrading of functions, the actual to the official website of the latest firmware Ul as the standard. - Page 16 12. First Printing ctb(.ctb) 3D objects 2. Print file name Save type preservation cancel Hide Folder USB port 2. Insert the USB drive → select the file 1. Generate cxdlp file， and save the file to U disk； → press the Start button. Note: The current interface is for reference only, due to the continuous upgrading of functions, the actual to the official website of the latest firmware Ul as the standard.
- Page 17 13. First Printing fi fi 3. Printing··· “ ” ; Note: The current interface is for reference only, due to the continuous upgrading of functions, the actual to the official website of the latest firmware Ul as the standard.
-
Page 18: Remote Controlled Printing
1.Download the app. 2.Register an account. 3.Log in to your account. 4.Add new devices. 5.Scan the QR code (Settings → Add Device → QR Code). HALOT-ONE Note: The current interface HALOT-ONE is for reference only, due to >> >> >>... -
Page 19: Circuit Wiring
15. Circuit Wiring Exhaust Fan Port Light Board Cooling Fan Port DC Power Input Port Light Board Power Supply Port Z-Axis Motor Drive Port Z-Axis Limit Switch USB Drive Print Port Print Screen Port Spare Firmware Update Port Note: Do not use this port. This port is used for debugging by the manufacturer. -
Page 20: Troubleshooting
16. Troubleshooting Workflow Diagnostics Cause of Failure Solution Feedback 1.Clean the USB drive. USB Drive Start 2.Format the USB drive. 3.Use another USB drive. Print via the memory card? Does the printer Is the file Yes/No 1.Change the model position and re-slice. Slicing work properly recognized? - Page 21 17 . FCC Statement FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 22 Since each model is different, the actual product may be different from the picture. Please refer to the actual product. The final interpretation right belongs to Shenzhen Creality 3D Technology Co., Ltd SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD. Add: 18F, JinXiuHongDu Building, Meilong Blvd., Longhua Dist., Shenzhen,China 518131 Official Website: www.creality.com Tel：+86 755-8523 4565...
