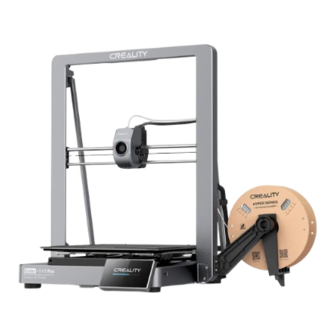

Creality Ender-3 V3 Plus User Manual

Creality Ender-3 V3 Plus User Manual

Fdm 3d printer
Hide thumbs Also See for Ender-3 V3 Plus:

Advertisement

Quick Links

Ender-3 V3 Plus
USER MANUAL
Ender-3 V3 Plus FDM 3D Printer
V 1.2_EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ender-3 V3 Plus and is the answer not in the manual?

Questions and answers

Peggy Kossow
April 5, 2025

Where do I put the 3 wire clips that came with my machine. It doesn't state that as far as i can see.( No. 7 in the accessory kit)

2 comments:
Mr. Anderson
April 5, 2025

1. One clip goes on the side of the filament feeder on the right side of the gantry.
2. A strain relief clip attaches to the harness at the back of the print head.
3. A PTF tube and wire harness clip attaches to the wire harness and aligns with the PTF tube for support.

This answer is automatically generated

Peggy Kossow
April 5, 2025

@Mr. Anderson

Summary of Contents for Creality Ender-3 V3 Plus

  • Page 1 Ender-3 V3 Plus USER MANUAL Ender-3 V3 Plus FDM 3D Printer V 1.2_EN...
  • Page 2 Creality is always ready to provide you with high-quality services. If you encounter any issues or have any questions when using our products, please use the contact information at the end of this manual to contact us. To further improve your user experience, you can find more about our devices via the following methods: User manual: You can find instructions and videos in the USB flash disk provided with the printer.
  • Page 3 11. Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes; Creality will not be responsible for any violators' legal liability under any circumstance;...
  • Page 4: Table Of Contents

    Contents 1. About the Printer ······················································································· 01-01 2. Parts List ····························································································· 02-03 ····················································································· 3. Assembly Procedure 04-08 3.1 Material Rack Assembly Installation ········································································ 04-04 3.2 Gantry Frame Assembly Installation 05-05 ········································································ 06-06 · ··················································································· 3.3 Pull rod installation· 3.4 Touch screen Installation 07-07 ················································································...
  • Page 5: About The Printer

    1. About the Printer X-axis & Z-axis limit switch Nozzle Kit Pull rod (right) Model cooling fan X-axis Kit Filament Detection Auxiliary cooling fan Material Rack Assembly Pull rod (left) Printing Platform X&Z-axis motor (left) Touch screen Power Switch USB flash disk port X&Z-axis motor (Right) Power Outlet...
  • Page 6: Parts List

    2. Parts List Base component Gantry Frame Assembly Touch screen Filament tube Power cable Anti-tangle material rack Material Rack Pull rod...
  • Page 7: Accessory Kit

    Head Screw M4*8 ×12 Tool kit Filament Black tie ×5 Wire Clip ×3 Cutting plier Extruder cable cover Quick Installation Guide Ender-3 V3 Plus After-Sales Service Card Scan the code to know more E-mail: cs@creality.com V2.2 FR Pyc. PT-BR V1.3...
  • Page 8: Assembly Procedure

    3. Assembly Procedure 3.1 Material Rack Assembly Installation Install the material rack and material barrel according to the diagram; Align the installed material rack component holes with the locking positions to the immediate right of the gantry frame and secure them downwards smoothly. Secure downwards...
  • Page 9: Gantry Frame Assembly Installation

    3. Assembly Procedure 3.2 Gantry Frame Assembly Installation Place the gantry frame assembly into the slots on the base: A. First, use four M4*8 screws to align and secure the left and right screw holes on the base; B. Then, use four M4*8 screws to align and secure the screw holes on the bottom of the base. Bottom M4×8 screws view...
  • Page 10: Pull Rod Installation

    3. Assembly Procedure 3.3 Pull rod installation First, use two M4*8 screws to align the holes on top of the gantry and lock the screws; Then, use two M4*8 screws to align the holes on the base and lock them all. Install the parts by matching with with...
  • Page 11: Touch Screen Installation

    3. Assembly Procedure 3.4 Touch screen Installation Connect the touchscreen to the base screen using the flexible flat cable; Snap the buckle on the back of the touch screen into the slots on the base. Follow the illustrated direction for the proper insertion orientation.
  • Page 12: Equipment Wiring

    3. Assembly Procedure 3.5 Equipment Wiring Secure it with cable ties Fixing position of cable ties You must first insert the wire into A.Connect the extruder kit first; B. the wire clamp, and then connect Fix the extruder cable with cable ties; Connect the the filament detection line.
  • Page 13: About The Power-On Guide And User Interface

    4. About the Power-on Guide and User Interface 4.1 Power-on guide The current interface is for reference only. Due to the continuous upgrading of functions, it shall be subject to the latest software/firmware UI published on the ofÏcial website.
  • Page 14 4. About the Power-on Guide and User Interface If any abnormalities occur during the self-check process, please refer to the FAQ to check for possible machine malfunctions; Alternatively, scan the QR code for “fault reporting" to report the machine issue and seek assistance from the after-sales service for problem resolution. The current interface is for reference only.
  • Page 15: About The User Interface

    4. About the Power-on Guide and User Interface 4.2 About the User Interface Nozzle temperature Hotbed temperature Home Parameters can be manually set * You can configure functions such as extruder temperature and hotbed temperature through the homepage; Prepare * You can configure functions such as axis movement/temperature control, extrude/retract, and fan cooling through the preparation interface. The current interface is for reference only.
  • Page 16 4. About the Power-on Guide and User Interface Print file preview * Press and hold on the model to select multiple models and copy them to a USB flash disk * Local and USB flash disk model files can be managed via the print file preview interface Print interface Fan cooling...
  • Page 17: Customer Service

    4. About the Power-on Guide and User Interface The current interface is for reference only. Due to the continuous upgrading of functions, it shall be subject to the latest software/firmware UI published on the ofÏcial website. * You can configure functions such as system and network settings through the settings interface.
  • Page 18: First Printing

    5. First Printing 5.1 Filament Loading Input the nozzle temperature on the screen and wait Cut the front of the filament at 45° and break it off for it to heat up to the target temperature; straight; Arrange the filaments as shown in the picture, and A.
  • Page 19: Lan Printing

    5. First Printing 5.2 LAN printing ※ Install Creality Print slicing software by opening the random data on the USB flash disk. ※ Log in to the ofÏcial website to download for installation: https://www.crealitycloud.com/software-firmware/software?type=7 Select “Language" and “Server" Add the printer...
  • Page 20 5. First Printing Set up material type Set the print layer height and click on “Slice" After slicing is done, click on “LAN printing" Add equipment: can be added either by “Scan Add" or “Manual Add". The current interface is for reference only. Due to the continuous upgrading of functions, it shall be subject to the latest software/-firmware UI published on the ofÏcial website.
  • Page 21 5. First Printing Add a device: a. Add by scanning → Select a device Device List Click “Settings" → “Network" to view the IP address Add a device: b. Add a device by manually entering the IP Equipment printing information details address The current interface is for reference only.
  • Page 22: Usb Flash Disk Printing

    5. First Printing 5.3 USB flash disk Printing DIP switch Select the model from the USB flash disk Click on “Print" Insert the USB flash disk into USB port ① Keep the dip switch locked before printing. The current interface is for reference only. Due to the ②...
  • Page 23: Functional Specification

    6. Functional Specification 6.1 Filament Retreat Method 1: Manual retract Input the nozzle temperature on the screen and wait for it to A. Unlock the dip switch; B. Hold the Teflon tube connector above the extruder; heat up to the target temperature; C.
  • Page 24 6. Functional Specification Method 2: Auto retract Click on “Retract"; Waiting for the retraction process to complete; The current interface is for reference only. Due to the continuous upgrading of functions, it shall be subject to the latest software/firmware UI published on the ofÏcial website.
  • Page 25: Auto Extrude

    6. Functional Specification 6.2 Auto extrude A.Unlock the DIP switch; B.Insert the filament into the Click on “Extrude"; deepest part of the Teflon tube until it cannot be moved; C.Lock the DIP switch. The current interface is for reference only. Due to the continuous upgrading of functions, it shall be subject to the latest software/firmware UI published on the ofÏcial website.
  • Page 26: Equipment Maintenance

    7. 设备维护 7. Equipment Maintenance 7.1 Platform plate removal and maintenance A. When printing is finished, wait for the platform plate to cool If there are residual filaments on the If the first layer of the model is not before removing the printing platform with the model attached; platform plate, scrape them off lightly properly glued, it is recommended B.
  • Page 27: Equipment Parameters

    8. Equipment Parameters Equipment Parameters Model Ender-3 V3 Plus Modeling Technolog 300*300*330mm Modeling Dimensions Leveling Method Auto-leveling Number of Nozzles 1pcs Extruder Diameter 0.4mm Slice Thickness 0.1-0.35mm Precision ±0.2mm Nozzle Temperature ≤300℃ ≤100℃ Hotbed Temperature PLA/TPU/PETG/ABS/PLA-CF/PETG-CF/CR-carbon Filaments Rated Power 350W...
  • Page 28: Circuit Wiring

    9. Circuit Wiring RGB screen Filament Detection DC 24V USB flash disk Hotbed (BED) AI LiDAR Heating (NC) Fan (NC) Hotbed thermistor Bottom shell fan Fan (NC) Fan (NC) Y-axis Y-axis X-axis Z-axis Extruder Hotbed X limit Z limit motor motor motor motor...
  • Page 29 Due to the differences between different machine models, the actual objects and the images can differ. Please refer to the actual machine. The final explanation rights shall be reserved by Shenzhen Creality 3D Technology Co., Ltd. SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD.
