Creality Ender-3 V2 Neo - 3D Printer User Manual

Firmware Upgrade

Please visit our official website https://www.creality.com/download. Click Homepage → Support → Download. Download the required firmware and install it.

Instructions for Use

  1. Do not use this printer by methods or operations that are not described in this manual, otherwise it may result in accidental injury or property damage.
  2. Do not place this printer near flammable materials, explosive materials or high heat sources. Please place this printer in a ventilated, cool and low-dust environment.
  3. Do not place this printer in a vibrating or any other unstable environment, as the printing quality will be compromised when the printer shakes.
  4. Please use the filament recommended by the manufacturer, otherwise the nozzle may be clogged or the printer may be damaged.
  5. Please use the power cord provided with the printer and do not use the power cord of other products. The power plug must be plugged into a three-hole socket with a ground wire.

  6. Do not touch the nozzle or hotbed while the printer is in operation, otherwise you may get burned.
  7. Do not wear gloves or accessories while operating the printer, otherwise the moving parts may cause accidental injury including cuts and lacerations.

  8. After the printing process is complete, please use tools to clean up the filament on the nozzle while the nozzle is still hot. Do not touch the nozzle with your hands when cleaning, otherwise your hands may get burned.
  9. Please regularly clean the printer body with a dry cloth while the power is off, and wipe off dust, sticky printing materials, and foreign objects on the guide rails.
  10. Children under the age of 10 must not use this printer without adult supervision in order to avoid accidental injury.
  11. This printer has a safety protection mechanism. Please do not manually move the nozzle or printing platform quickly while the printer is on, otherwise the printer will automatically power off for protection.
  12. Users should abide by the laws and regulations of the corresponding country and region where the equipment is located (place of use), abide by professional ethics, and pay attention to safety obligations. The use of our products or equipment for any illegal purpose is strictly prohibited. Our company is not responsible for the relevant legal responsibilities of any violators.

About the Device

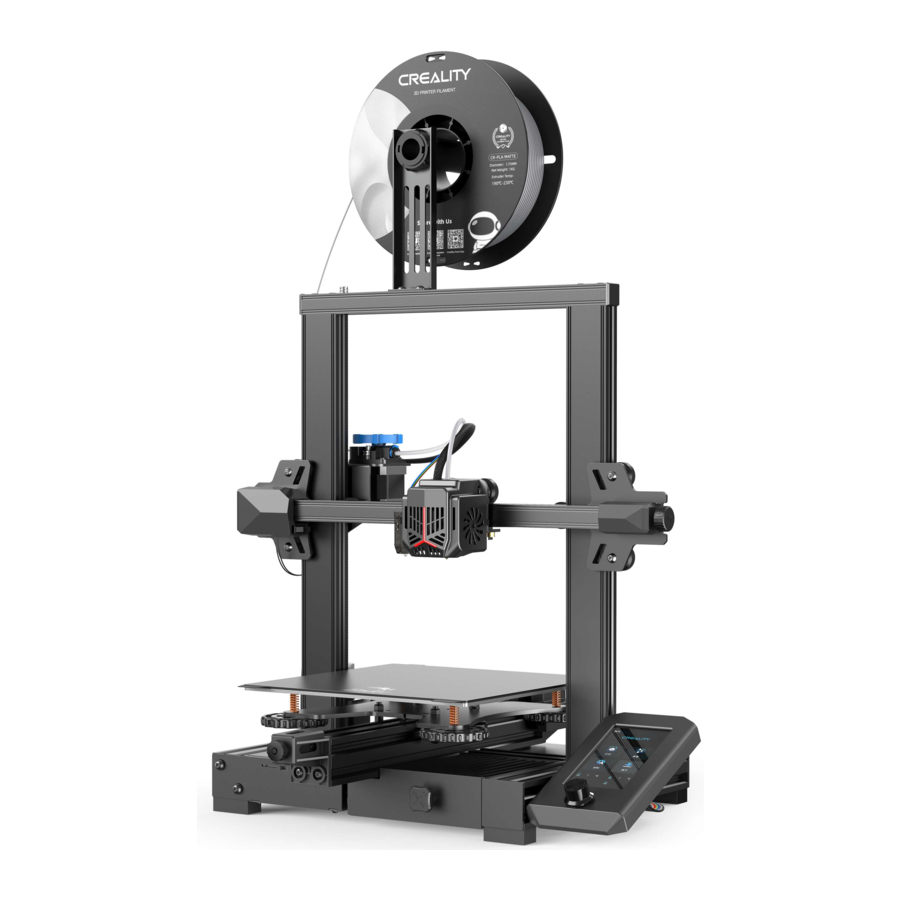

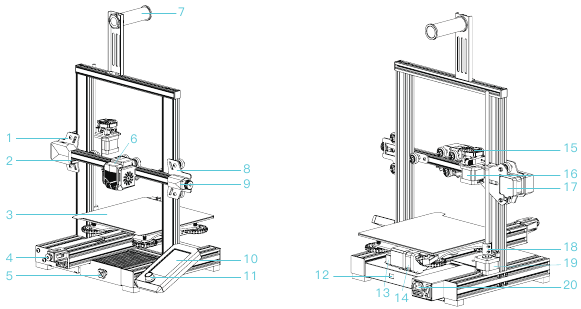

Parts of the Device

  1. XE-axis component
  2. X-axis limit switch
  3. Printing platform
  4. Y-axis tensioner
  5. Tool box
  6. Nozzle kit
  7. Material rack and material barrel
  8. Z-axis passive block
  9. X-axis tensioner
  10. Display screen
  11. Rotary switch
  12. Voltage regulation gear
  13. Y-axis limit switch
  14. Y-axis motor
  15. Indication knob
  16. E-axis motor
  17. X-axis motor
  18. Coupler
  19. Z-axis motor
  20. Power switch and socket

Device Specifications

General Specifications
Product model Ender-3 V2 Neo
Modeling dimensions 220*220*250mm
Molding tech FDM
Number of nozzles 1
Slice height 0.1mm-0.4mm
Nozzle diameter Standard 0.4mm
Precision ±0.1mm
Filament PLA/PETG/ABS
Supported file format STL/OBJ/AMF
Print Method USB/storage card
Supported slice software Creality Slicer/Creality Print/Cura/Repetier-Host/Simplify3D
Input voltage 100-120V~, 200-240V~, 50/60Hz
Rated power 350W
Hotbed temperature ≤100°C
Nozzle temperature ≤250°C
Power loss recovery Yes
Auto leveling Yes
Switch languages 中文/ English/ Español/ Deutsche/ Français/ Pусский/ Português/ Italiano/ Türk
Operating system Windows XP/Vista/7/10/MAC/Linux
Printing speed ≤ 120 mm/s, generally 50 mm/s

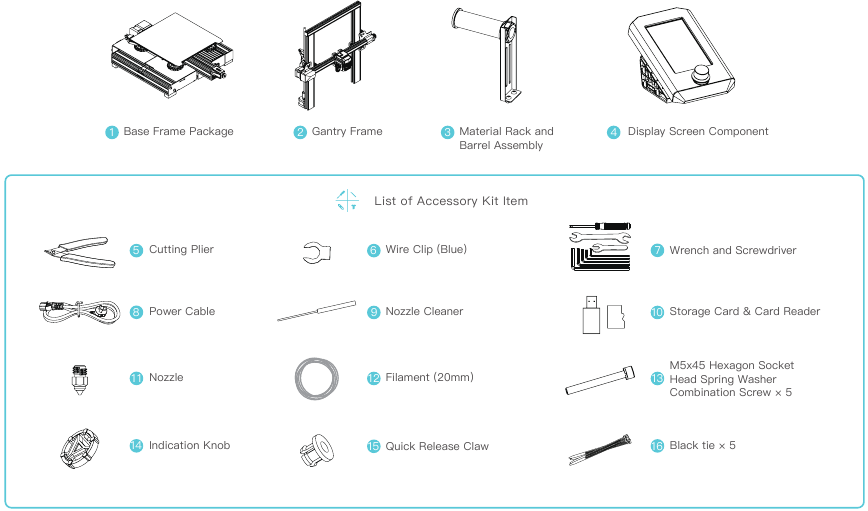

List of Parts

Note: The components above are for reference only. The actual product may vary.

Installing the Appliance

Gantry Frame Installation

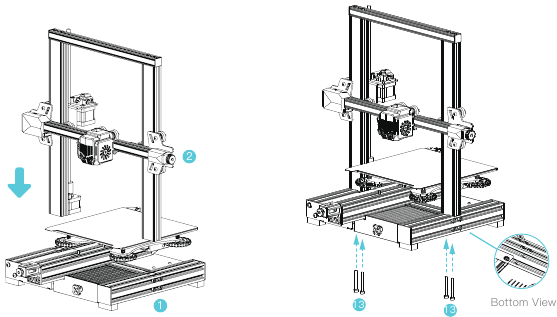

Gantry Frame Installation

  1. Place the gantry frame in the slot of the base frame, and pre-lock it with two M5x45 hexagon socket head spring washer combination screws from the bottom to the top.
  2. Place the gantry frame in the slot of the base frame, and pre-lock it with two M5x45 hexagon socket head spring washer combination screws from the bottom to the top.
  3. Rotate the bottom component by 180° to ensure that the profiles on both sides are level. Use two M5x45 hexagon socket head spring washer combination screws to align the holes on the left side to pre-lock the holes first, and then tighten to fix them.
  4. Rotate the bottom component by 180°, and tighten the screw on the right side.

information To tighten the screw, put the short side of the wrench into the screw and secure it.

Installing display screen

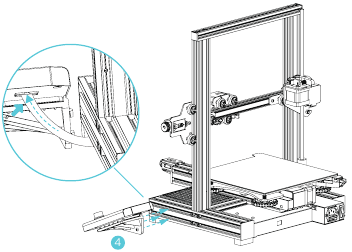

  1. Place the display screen assembly on the side of the right profile, snap it into the profile in parallel and tighten the screws;
  2. Connect the display screen wiring.
    Installing the display screen

Installing material rack

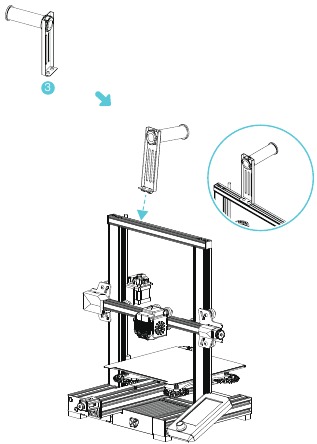

  1. Fix the material rack and barrel assembly to the profile, as shown in the diagram below.
    Installing material rack

Cable Connection

Cable Connection

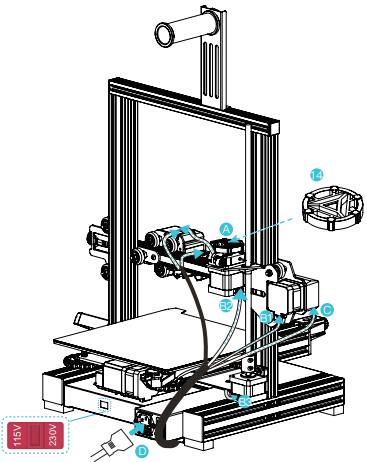

  1. Put the indication knob directly onto the motor shaft;
    1. Follow the yellow label on the 6pin (4 wires) port to connect the X-axis stepper motor;
    2. Follow the yellow label on the 6pin (4 wires) port to connect the E-axis stepper motor;
    3. Follow the yellow label on the 6pin (4 wires) port to connect the Z-axis stepper motor;
  2. Follow the yellow label on the 3pin (2 wires) port to connect the X axis limit switch;
  3. Plug in the power cord and toggle the switch to turn on the power.

  • Before powering on, be sure to select the correct voltage mode according to the local grid voltage to avoid burning out the power supply;
  • If the local power grid voltage is within 100-120V, please dial the power supply of the machine to 115V;
  • If the local power grid voltage is within 200-240V, please dial the power supply of the machine to 230V (it is 230V by default).

Adjusting pulley tightness

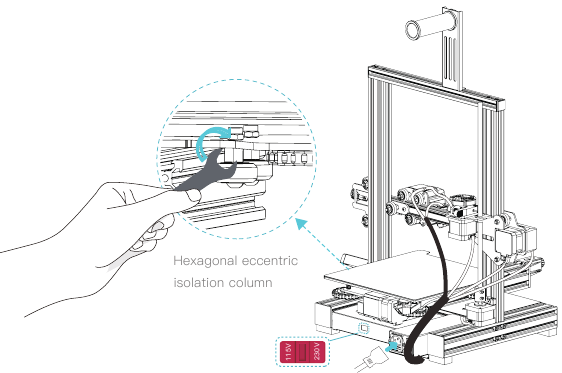

  1. Check the pulley looseness before switching on the machine. X/Y/Z axis pulley adjustment: Gently turn the pulley to check whether it is idling or jammed. If this phenomenon occurs, use an open-end wrench to adjust the tightness of the hexagonal eccentric isolation column to make it rotate smoothly.
    Adjusting pulley tightness

Auto Leveling

  1. Power up the appliance and select "Leveling"
    Default: After the printer has first automatically returned to the home position for auto-calibration, and after 16 points of data calibration, the printer will return to the home position again and the levelling process is complete.

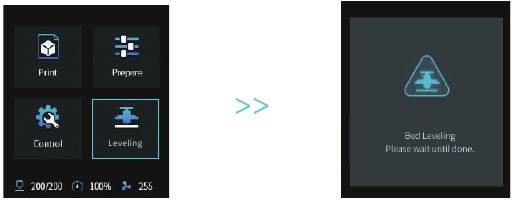

    Auto Leveling - Step 1

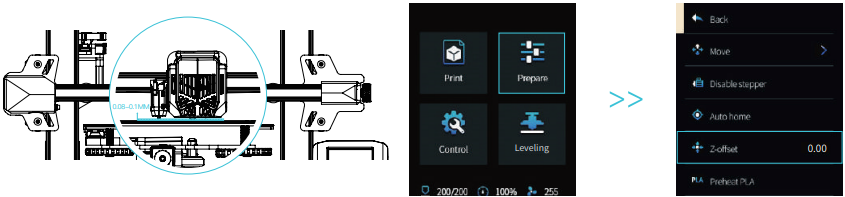

  2. Go to "Prepare → Z-offset", adjust the Z-axis compensation value so that the height of the nozzle to the printing platform is about the thickness of a piece of A4 paper (0.08-0.1mm); then, click the knob and the Z-axis compensation value is thus successfully determined
    Auto Leveling - Step 2

Auxiliary levelling

  1. Go to "Control → Reset configuration" to reset the printer parameters.

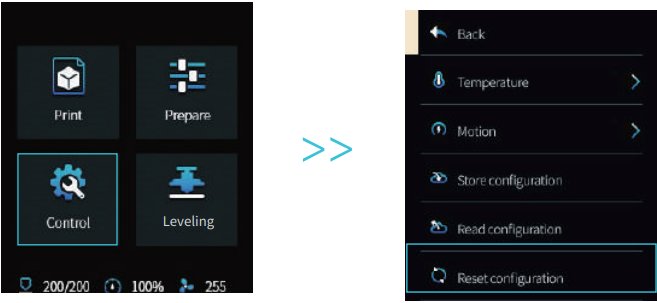

    Auxiliary levelling - Step 1 - Reset parameters

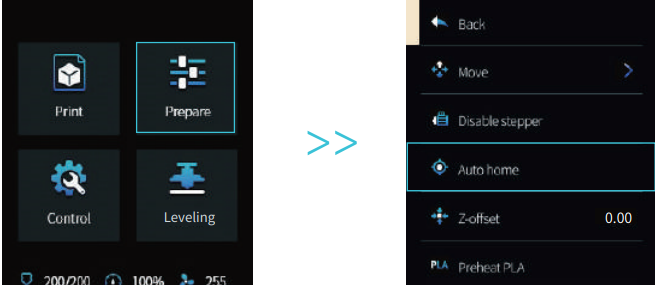

  2. Go to "Prepare → Auto home" to return to the starting position.
    Auxiliary levelling - Step 2 - Returning to start

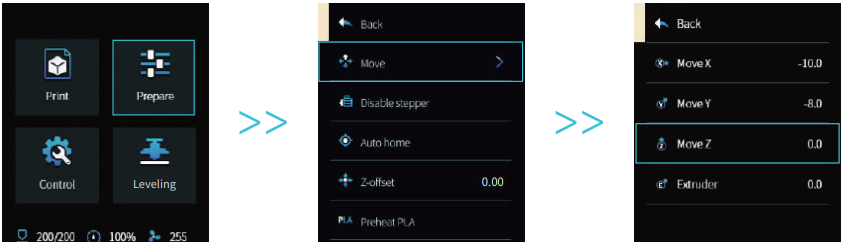

  3. Go to "Prepare → Move → Move Z" and reset.
    Auxiliary levelling - Step 3

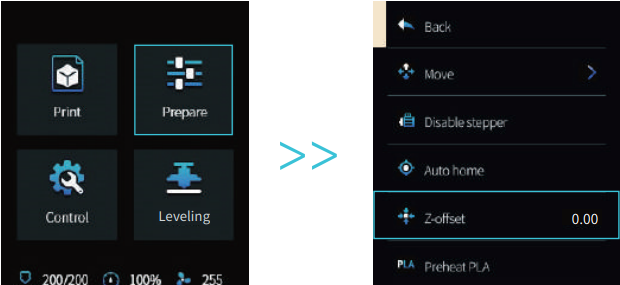

  4. Go to "Prepare → Z-offset", adjust the Z-axis compensation value so that the height of the nozzle to the platform is almost the thickness of A4 paper (0.08-0.1mm); then, click the knob, and the central point leveling is done.
    Auxiliary levelling - Step 4

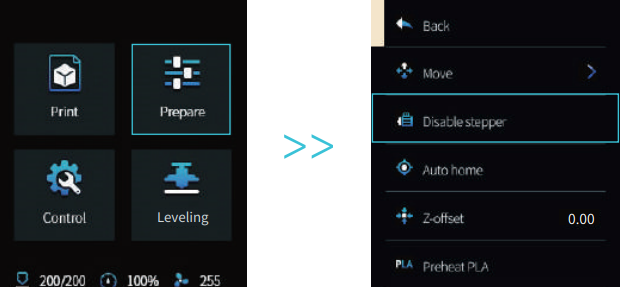

  5. Go to "Prepare → Disable stepper" to switch off all motor enables.
    Auxiliary levelling - Step 5
  6. Adjust the knob at the bottom of the hotbed and move the nozzle to the four corners of the printing platform, respectively, so that the height of the nozzle to the printing platform is approximately the thickness of A4 paper (0.08-0.1mm). Make sure that the four corners are properly leveled.

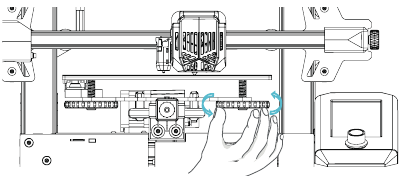

    Auxiliary levelling - Step 6 - Adjust bottom knob

danger


The nozzle is too far away from the platform, so the filaments can not adhere to the platform.

Filaments are extruded evenly, just sticking on the platform.

The nozzle is too close to the platform, leading to insuficient filament extrusion, even scraping the platform.

Load resin

  1. When you wait for the temperature to rise, hang the filament over the filament rack.

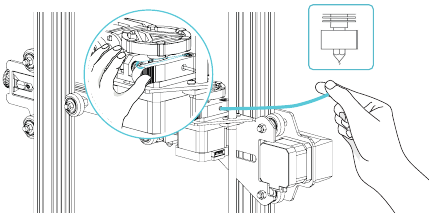

  2. Press the extrusion clamp and insert the filaments along the extruder hole up to the nozzle. When the temperaturehits the target value, a flow of filaments can be seen at the nozzle, meaning that the filaments have been loaded.
    Loading the resin


For smoother printing, the end of the filament should be cut as shown above.

information Replacement of filaments:

  1. When the printer is not under work:
    1. Heat the nozzle to above 185°C first, wait for the filaments inside the nozzle to soften, then press the extrusion handle and pull out the filaments quickly to prevent them from getting stuck at the heat break;
    2. Replace the new filaments onto the material rack and repeat the loading procedure.
  2. When the printer is working:
    1. Suspend printing first and, once the printer has stopped, press the extrusion handle to pull the filaments out quickly and prevent them from getting stuck at the heat break;
    2. Replace the new filaments onto the material rack, press the extrusion handle, insert the filaments through the extruder feed hole into the nozzle, then push the filaments hard to squeeze out the residual filaments from the nozzle, and clean it up for printing.

First Printing

  1. Download from www.creality.com, or find the Creality software on your memory card and install it.
  2. Go to Preferences → Basic → Select Language → Finish to complete the settings.
  3. Select the model of the printer (Ender-3 V2 Neo).
  4. Enter Parameters → Close.
  5. Launch the Creality Slicing Software.
  6. Load the file.
  7. Select the file.
  8. Generate the G-code file → Save it to the memory card.
  9. Insert the memory card → Press the screen knob → Select from the menu → Select the used for printing.

caution The file name must only contain Latin letters and digits. Chinese characters or special symbols must not be used.

information Note: For details on using the software, please refer to the slicing software user manual in the storage card.

Circuit Wiring

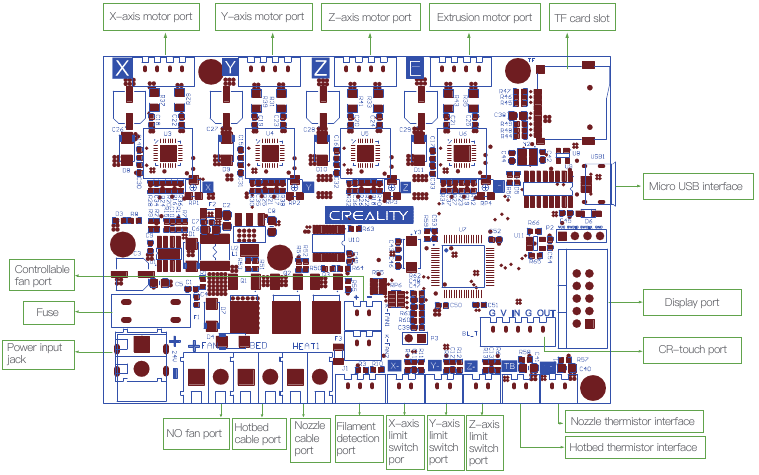

Circuit Wiring

Since each model is different, the actual product may be different from the picture. Please refer to the actual product.
The final interpretation right belongs to Shenzhen Creality 3D Technology Co., Ltd.

You can also visit our official website (https://www.creality.com) to find information regarding software, hardware, contact information, device instructions, device warranty information, and more.

SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD.
18F, JinXiuHongDu Building, Meilong Blvd., Longhua Dist., Shenzhen,
China 518131
Official Website: www.creality.com
Tel: +86 755-8523 4565
E-mail: info@creality.com cs@creality.com
