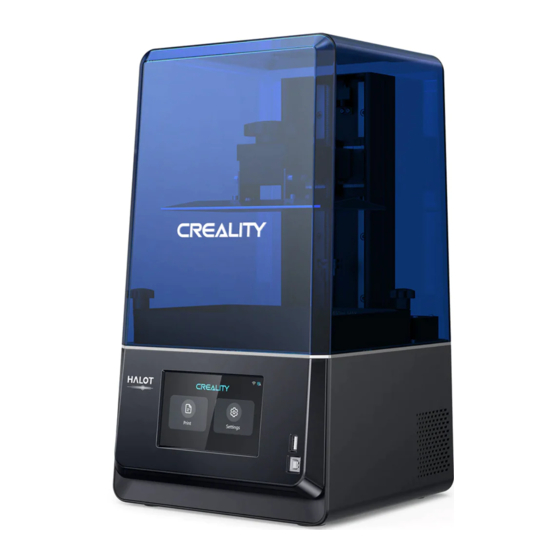

- Page 1 Create reality，achieve dreams HALOT-ONE PLUS HALOT-ONE PLUS 3D Printer User Manual V1.0...
- Page 2 For a better experience in using our product, you can also access how to use the printer in the following ways: View the accompanied instructions and videos in the U disk. Visit our official website www.creality.com to find relevant software/hardware information,contact details and operation and maintenance instructions.
- Page 3 Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes. Creality will not be responsible for any violators' legal liability under any.
-
Page 4: Table Of Contents
Contents Equipment Introduction 01-01 Equipment Parameters 02-02 Parts List 03-03 Assemble the 3D Printer 04-05 Use the 3D Printer 06-10 Print Method 11-16 17-17 Wiring Connection Troubleshooting 18-18 FCC Statement 19-19 20-20 IC Cautiont... -
Page 5: Equipment Introduction
1. Equipment Introduction USB port Hexalobular socket screw Resin vat Leveling screw Touch screen Power switch Power receptacle Platform plate Limit sensor Air filter Resin vat fixing screw... -
Page 6: Equipment Parameters
Net Weight 6.8KG 8.6KG Gross Weight Print Method USB Disk，Creality Cloud App, Creality Cloud Online, WiFi Print Machine Language 中文(简/繁)/ English/ Español/ Deutsche/ Français/ Pусский/ Português/ Italiano/ Türk/Nederlands/Polskie/日本語/한국어 Slicing Software Operation System Win7/Win8/Win 10 64bit, Mac system(32-bit is not supported) -
Page 7: Parts List
3. Parts Content List Resin vat x 1 3D printer x 1 Print platform x 1 Tool list U disk x 1 Power cable x 1 Screwdrivers x 1set Paper funnel x 2 Release film x 1 Metal blade x 1 Plastic blade x 1 Calibration card x 1 Tray fixing screw x 2... -
Page 8: Assemble The 3D Printer
4. Assemble the 3D Printer Take out the resin vovt align the two tray fixing screws with the corresponding holes and tighten them to fix. (as the picture shows) Resin vat x 1 Tray fixing screw x 2... - Page 9 4. Assemble the 3D Printer Machine body x 1 Note: put the upper cover on the machine body and the installation is completed. Plastic Upper cover x 1...
-
Page 10: Use The 3D Printer
5. Interface Information Settings Note: Check whether the light source is normal The UI interfaceis only for reference , the actual UI. - Page 11 6. Leveling Platform 1. Raise the platform, loosen rubber screws on the left 2. Loose the four screws on the connecting 3.After confirming that the calibration and right sides of the resin vat, and take out the resin vat. plate on molding platform plate, attach card fit evenly, lock the four screws of the calibration card on the printing screen, platform.
- Page 12 6. Leveling Platform Note: The UI is only for reference only and shall be subject to the actual UI.
- Page 13 7. Load Resin Pour the UV photosensitive resin into the resin vat. The slot capacity is 250ml/450ml/650ml. 650ml 450ml 250ml Tips: How to change resin? Caution: Resin may cause skin irritation or an allergic skin reaction. Take out the resin vat slowly, pour out the remaining resin into the container, Please wear gloves before use to avoid direct contact with the skin.
- Page 14 8. Release Film (FEP) Replacement a. First, remove the 14 screws at the bottom of thetray and take out the broken release film (FEP). b. Then place the release film between the two steel frames. c. Finally,put the assembled steel frame back into the tray and tighten 14 screws.
-
Page 15: Print Method
9. USB Disk Printing 1. Slicer ① ① ② ② 1. Open the slicer software of HALOT BOX, click "Open" on the 2. If the model needs to add support, click the upper left icon① top left of the screen and add model file; to set corresponding parameters②. - Page 16 9. USB Disk Printing ctb(.ctb) 3D objects 2. Print tower file name Save type Hide Folder preservation cancel USB port 1. Generate cxdlp file and save the file to U disk 2. Insert the USB disk Note: The UIinterface is for reference only,and shall be subject to the Warning: During the printing process the machine can’...
- Page 17 9. USB Disk Printing 0.05mm 1. Select USB disk files; 2. Choose to use parameters； 0.05mm 0.05mm 4. Printing··· 3. Press "Start" button Note: The UI interface is for reference only, and shall be subject to the actual UI. The machine stores the file being printed by default.
- Page 18 ② Only WPA-PSK/WPA2-PSK security protocol is applicable to the 3D printer, and other protocols may result in the failure to connect the printer to WiFi properly. To change the security protocol, users may change it in setting interface of the router. 1. Click Creality Cloud online model； 2. Select the model;...
- Page 19 5. Device naming 1.Download 2.Register 3. Add equipment 4. Scan QR Code Settings → Detail → Connect to Creality Cloud → QR code 巴黎铁塔 Notes: 1. The steps for adding devices vary for different mobile phone operating systems; 2. Set the correct area in "Settings - Other Settings - Language and Area".
- Page 20 12. WIFI Print ① 1. Slicer ② 1. Open the slicer software of HALOT BOX, click“open” 2. If the model needs to add support, click the upper on the left of the screen and add model file. left icon to set corresponding parameters. ①...
-
Page 21: Wiring Connection
13.Wiring Connection Exhaust fan port Z motor driver port UL LED fan port Power Supply port UV LED POWER EN port oQM S HOQs | f kJ j qO Hr s J j qN ` QQM ` QQN Hc ^kOJ i qS a PM O c _UV... -
Page 22: Troubleshooting
14.Troubleshooting 1. Wipe USB disk 2. Format USB disk 3. Replace USB disk Is file identified or not Auto homing Move or not Attach to the printing screen tightly Coupling Fasten coupling... -
Page 23: Fcc Statement
FCC Statement FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 24: Ic Cautiont
IC Cautiont： This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. To maintain compliance with RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. - Page 25 Due to the differences between different machine models, the actual objects and the images can differ. Please refer to the actual machine. The final explanation rights shall be reserved by Shenzhen Creality 3D Technology Co., Ltd. 18F, JinXiuHongDu Building, Meilong Blvd., Longhua Dist., Shenzhen, ...
