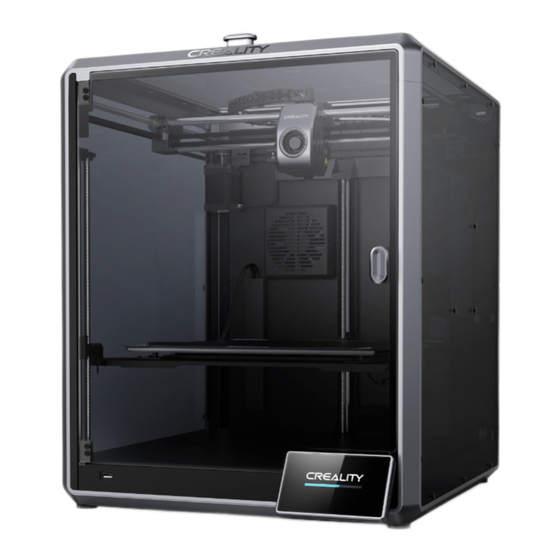

Summary of Contents for Creality K1
- Page 1 Create reality，achieve dreams 3D Printer User Manual V1.0...
- Page 2 Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes; Creality will not be responsible for any violators' legal liability under any circumstance;...
-
Page 3: Table Of Contents
Contents ....................................................1. About the Device 01-03 ......................................................1.1 About the Printer 01-01 ....................................................1.2 Device Specifications 02-02 ........................................................03-03 1.3 Packing List ........................................................ 04-08 2. Unboxing 2.1 Unpacking Steps ......................................................04-05 ......................................................2.2 Install the Product 06-07 ......................................................2.3 Power-on guide 08-08 ................................................... -
Page 4: About The Device
1. About the Device 1.1 About the Printer Top cover Nozzle assembly Filament detection Back Fan Front door Side Fan Material barrel Printing platform Switch Power outlet Touch screen Toggle Switch USB flash disk port 01 01... -
Page 5: Device Specifications
1. About the Device 1.2 Device Specifications Basic Parameters Product Model Dimensions 355*355*480mm Machine Weight 12.5kg Max. Build Dimensions 220*220*250mm Print Technology 100-120V~/200-240V~，50/60Hz Rated Voltage 350W Rated Power 10℃-30℃ / 50°F-86°F Ambient temperature Sprite Direct Drive Extruder Supported Filament PLA/TPU/PETG/ABS/PET/Carbon Max. -
Page 6: Packing List
1. About the Device 1.3 Packing List Printer Touch screen Filament Tool Box List Cutting plier ×1 Wrench and Blade ×1 Material barrel ×1 Screwdriver ×1 USB flash Power Cable ×1 Lubricating 1.2mm nozzle disk ×1 Grease ×1 cleaner ×1 Create reality, achieve dreams Quick Installation Guide Glue Stick ×1... -
Page 7: Unboxing
2. Unboxing 2.1 Unpacking Steps ① ② ③ ④ ⑤ Take out the power cord; Move the chain to one side in the direction indicated by the arrow; Finally, take the grey foam as shown. 01 04... - Page 8 2. Unboxing 2.1 Unpacking Steps ⑥ ⑦ ⑧ Push the extruder in the direction indicatedby the arrow and remove the foam. 01 05...
-
Page 9: Install The Product
2. Unboxing 2.2 Install the Product ① Take the touch screen out of the tool box and connect the touch screen to the flat cable extended from the base according to Figure A. Then snap the touch screen into the slot in the baseplate, as shown in Figure B. (The direction is as shown in the figure;... - Page 10 2. Unboxing 2.2 Install the Product ⑤ Select a language and click "Next", Remove three screws a, b and c according to position indicated by the yellow arrow. click "OK" on the screen. ⑥ Keep the blue cube in the figure clean of debris and then click "OK". 01 07...
-
Page 11: Power-On Guide
2. Unboxing 2.3 Power-on guide ③ ① Network Settings ② Time Zone Settings Creality Cloud binding ④ Self-inspection ⑤ Self-testing ⑥ Self-test completed Reminder: When the printing time of the device exceeds 300 hours, or if Note: The current interface is for reference only. Due to the continuous upgrading of functions, it shall be subject to the latest firmware UI published... -
Page 12: About The User Interface
3. About the User Interface 3.1 Tune、Prepare Nozzle Temperature Temperature Main Parameters can be manually set Prepare Print LED switch interface Cooling inlet Print Time Remain Note: The current interface is for reference only. Due to the continuous upgrading of functions, it shall be subject to the latest firmware UI published on the official website. -
Page 13: Files
3. About the User Interface 3.2 Files ① ② Local model Tips: Choosing print calibration can improve print quality Press and hold on the model to multi-select and copy it to a USB flash drive Note: The current interface is for reference only. Due to the continuous upgrading of functions, it shall be subject to the latest firmware UI published on the official website. -
Page 14: Tune、Support
3. About the User Interface 3.3 Tune、Support Help System System Support Tune Error history Network Note: The current interface is for reference only. Due to the continuous upgrading of functions, it shall be subject to the latest firmware UI published on the official website. Upload Log... -
Page 15: First Printing
4. First Printing 4.1 USB flash disk Printing ① ② USB flash drive model Insert the storage device ③ Select to print ④ Printing Note: The current interface is for reference only. Due to the continuous upgrading of functions, it shall be subject to the latest firmware UI published on the official website. -
Page 16: Lan Printing
4. First Printing 4.2 LAN Printing Creality Print ① Download at (www.crealitycloud.com) or find the software on a USB flash drive and install it. ② Choose a language and region; ③ Choose a Printer； Tips: the computer must be in the same... - Page 17 4. First Printing 4.2 LAN Printing Scan the QR code and download the app ⑥ Log into a Creality Cloud account; ⑧ Selection of LAN printing; ⑦ Start slicing; 01 14...
- Page 18 4. First Printing 4.2 LAN Printing ⑨ Add a device: a. Add by scanning; → Select a device; ⑩ Device List； ⑨ Add a device: b. Add a device by manually entering the IP address; ⑪ Device Details。...
-
Page 19: Functional Specification
5. Functional Specification 5.1 Extrude、Filament Retreat Extrude Filament Retreat Note: The current interface is for reference only. Due to the continuous upgrading of functions, it shall be subject to the latest firmware UI published on the official website. 01 16... -
Page 20: Tips And Routine Maintenance
① Please visit https://www.crealitycloud.com/product, click “Products" and select the right model, and then click “Related" to view the tutorials on after-sales service; ② Or contact our after-sales service center at +86 755 3396 5666, or send e-mail to cs@creality.com. 6.1 Maintenance Items Maintenance instructions Clean the debris inside the machine to ensure that its operation is not affected. - Page 21 6. Tips and Routine Maintenance 6.2 Error code descriptions Error code descriptions Parameters E0001 Motor drive exception E0002 Internal errors E0003 Communication failure E0004 Not heated as expected E0005 Hotbed temperature anomaly E0006 Extruder failure Exception for printing file coordinates E0007 E0008 Print quality problems are detected and printing is suspended...
-
Page 22: Precautions For Printing
6. Tips and Routine Maintenance 6.3 Precautions for printing 6.3.1 Lubrication and maintenance Y-axis optic axis 1 X-axis optic axis 1 X-axis optic axis 2 Y-axis optic axis 2 Z-axis optic axis 1 Screw rod 3 Screw rod 1 Z-axis optic axis 3 Screw rod 2 Z-axis optic axis 2 Tips: please grease and lubricate the designated... - Page 23 6. Tips and Routine Maintenance 6.3 Precautions for printing 6.3.2 Use and maintenance of flexible platform ① Together with the flexible platform after the printed ② The residue of the platform filaments can ③ When the first layer of the model is not be scraped off...
- Page 24 FCC Statement FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 25 Since each model is different, the actual product may be different from the picture. Please refer to the actual product. The final interpretation right belongs to Shenzhen Creality 3D Technology Co., Ltd. SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD. Add:18th Floor, JinXiuHongDu Building, Meilong Road, Xinniu Community, Minzhi Street, Longhua District, Shenzhen City, China.
