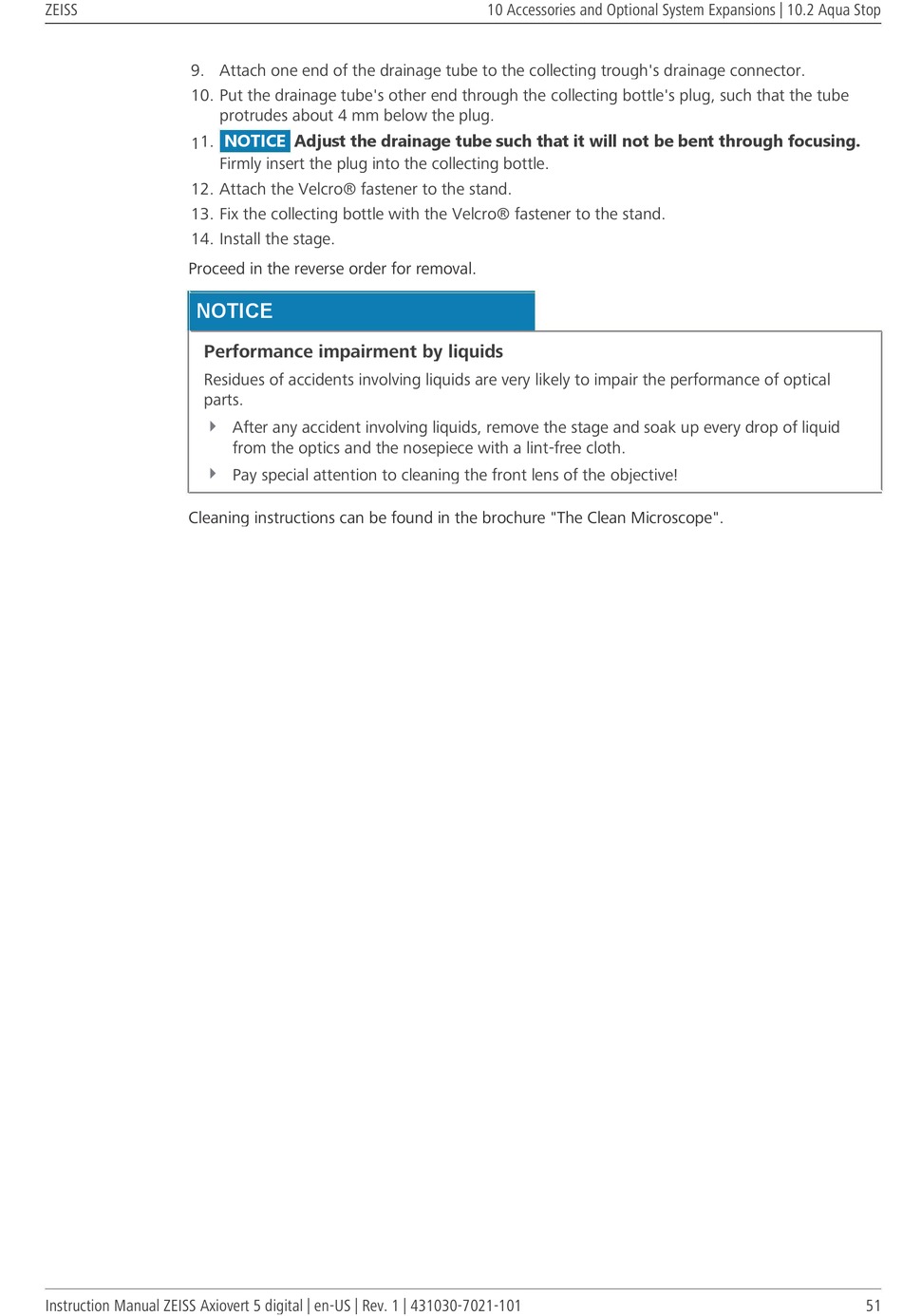

9 . Attach one end of the drainage tube to the collecting trough's drainage connector.
1 0. Put the drainage tube's other end through the collecting bottle's plug, such that the tube
1 1.
1 2. Attach the Velcro® fastener to the stand.
1 3. Fix the collecting bottle with the Velcro® fastener to the stand.
1 4. Install the stage.
Proceed in the reverse order for removal.
NOTICE
Performance impairment by liquids
Residues of accidents involving liquids are very likely to impair the performance of optical
parts.
4
4
Cleaning instructions can be found in the brochure "The Clean Microscope".
Instruction Manual ZEISS Axiovert 5 digital | en-US | Rev. 1 | 431030-7021-101
protrudes about 4 mm below the plug.
NOTICE Adjust the drainage tube such that it will not be bent through focusing.
Firmly insert the plug into the collecting bottle.
After any accident involving liquids, remove the stage and soak up every drop of liquid
from the optics and the nosepiece with a lint-free cloth.
Pay special attention to cleaning the front lens of the objective!
10 Accessories and Optional System Expansions | 10.2 Aqua Stop
