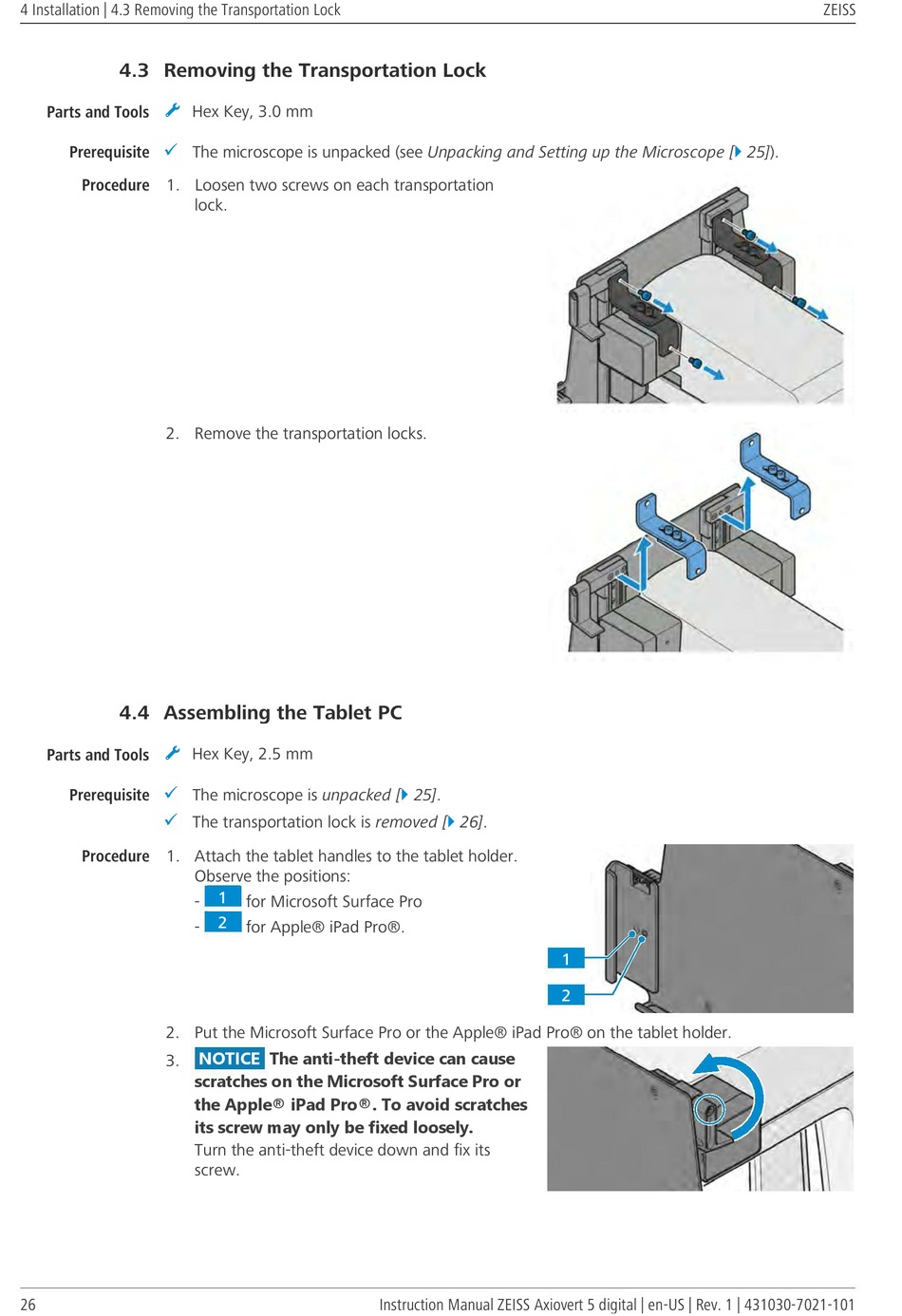

4 Installation | 4.3 Removing the Transportation Lock

4 .3 Removing the Transportation Lock

Parts and Tools
ü
Prerequisite
Procedure 1. Loosen two screws on each transportation
2 . Remove the transportation locks.

4 .4 Assembling the Tablet PC

Parts and Tools
ü
Prerequisite
ü
Procedure 1. Attach the tablet handles to the tablet holder.
2 . Put the Microsoft Surface Pro or the Apple® iPad Pro® on the tablet holder.
3 .
2 6
Hex Key, 3.0 mm
The microscope is unpacked (see Unpacking and Setting up the Microscope
lock.
Hex Key, 2.5 mm
The microscope is unpacked
The transportation lock is removed
Observe the positions:
1
- for Microsoft Surface Pro
2
- for Apple® iPad Pro®.
NOTICE The anti-theft device can cause
scratches on the Microsoft Surface Pro or
the Apple® iPad Pro®. To avoid scratches
its screw may only be fixed loosely.
Turn the anti-theft device down and fix its
screw.
[} 25].
[} 26].
