6 Care and Maintenance | 6.3 Maintenance Work

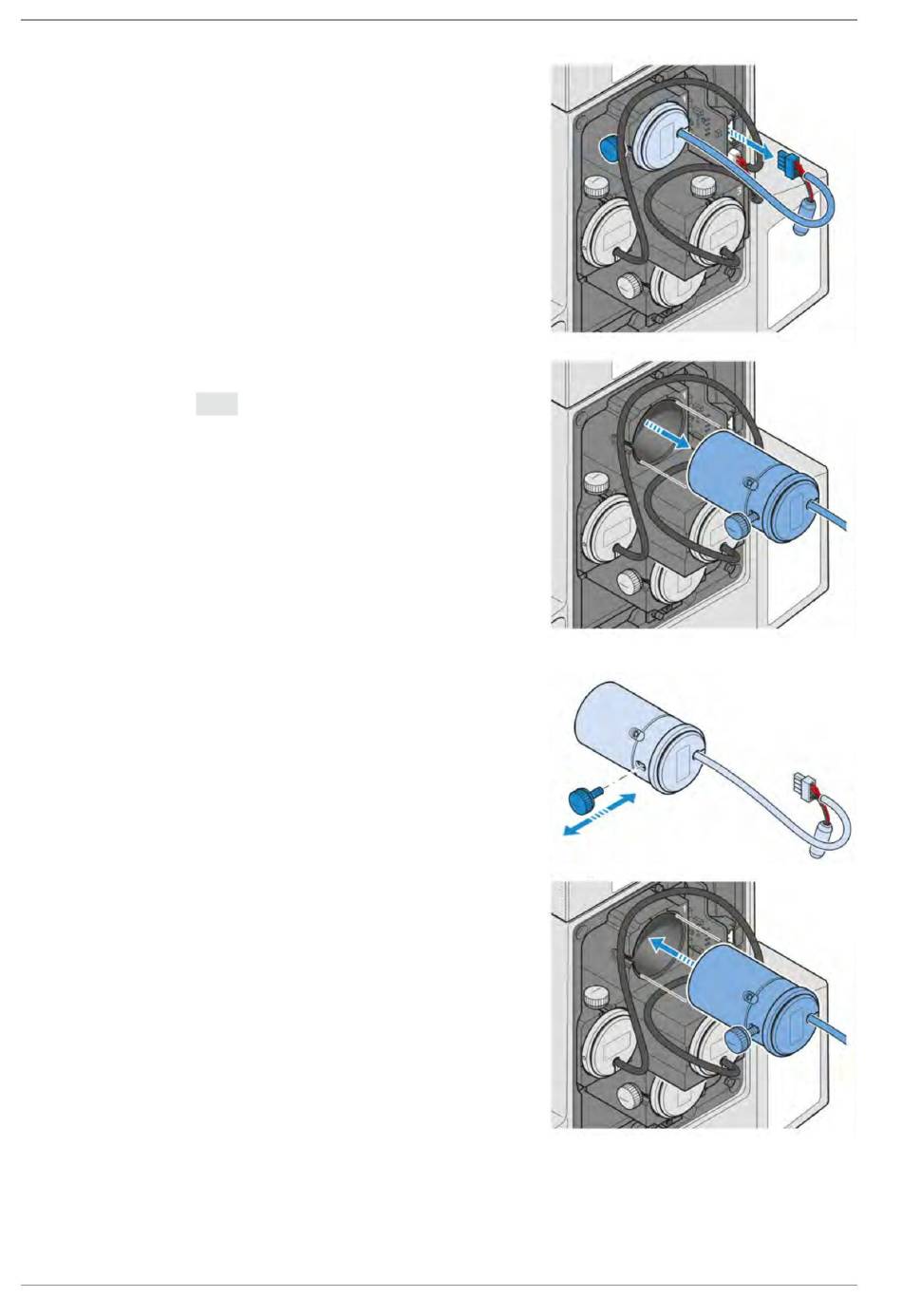

3 . Unplug the connector of the defective LED
4 . Loosen the knurled screw of the defective LED
5 . Remove the defective LED module.
6 . Loosen the knurled screw from the defective
7 . Insert the new LED module.
8 . Tighten the knurled screw to fix the LED module.
4 0
module.
module.
Info If LED module 1 is to be replaced,
the knurled screw of LED module 3 must
be removed first. Otherwise LED module 1
cannot be removed due to limited space.
LED module and keep it for later use.
