3 .1 Main Components of Axiovert 5 digital

Purpose This section shows the main components of Axiovert 5 digital.
1
2

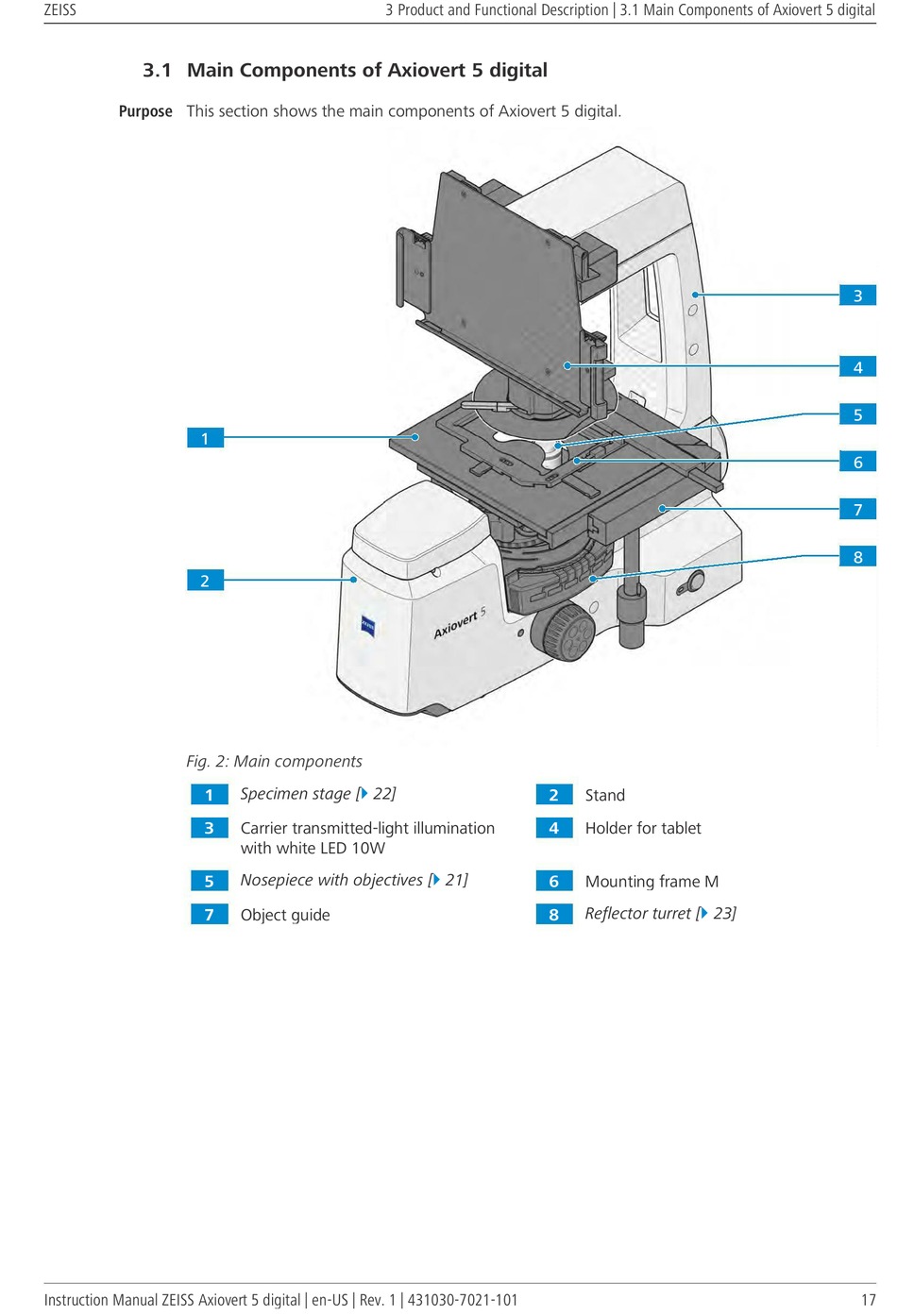

Fig. 2: Main components
1
3
5
7
Instruction Manual ZEISS Axiovert 5 digital | en-US | Rev. 1 | 431030-7021-101
3 Product and Functional Description | 3.1 Main Components of Axiovert 5 digital
Specimen stage [} 22]
Carrier transmitted-light illumination
with white LED 10W
Nosepiece with objectives
Object guide
2 Stand
4 Holder for tablet
[} 21]
6 Mounting frame M
Reflector turret
8
3
4
5
6
7
8
[} 23]
