3 Product and Functional Description | 3.2 Controls and Functional Elements on Components

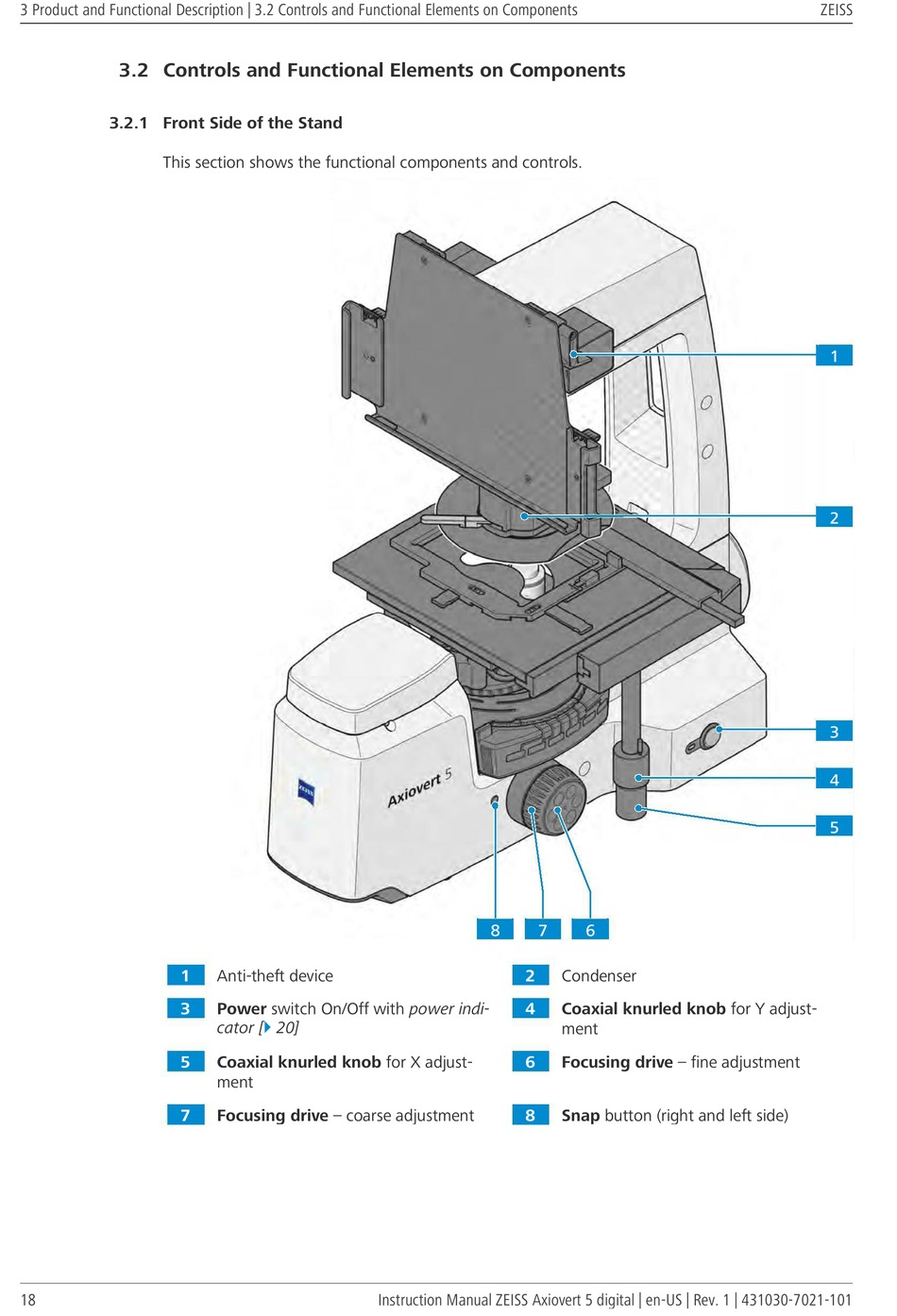

3 .2 Controls and Functional Elements on Components

3 .2.1 Front Side of the Stand

This section shows the functional components and controls.
1
3
5
7
1 8
Anti-theft device
Power switch On/Off with power indi-
cator [} 20]
Coaxial knurled knob for X adjust-
ment
Focusing drive – coarse adjustment
Instruction Manual ZEISS Axiovert 5 digital | en-US | Rev. 1 | 431030-7021-101
8 7 6
2 Condenser
4 Coaxial knurled knob for Y adjust-
ment
6 Focusing drive – fine adjustment
8 Snap button (right and left side)
ZEISS
1
2
3
4
5
