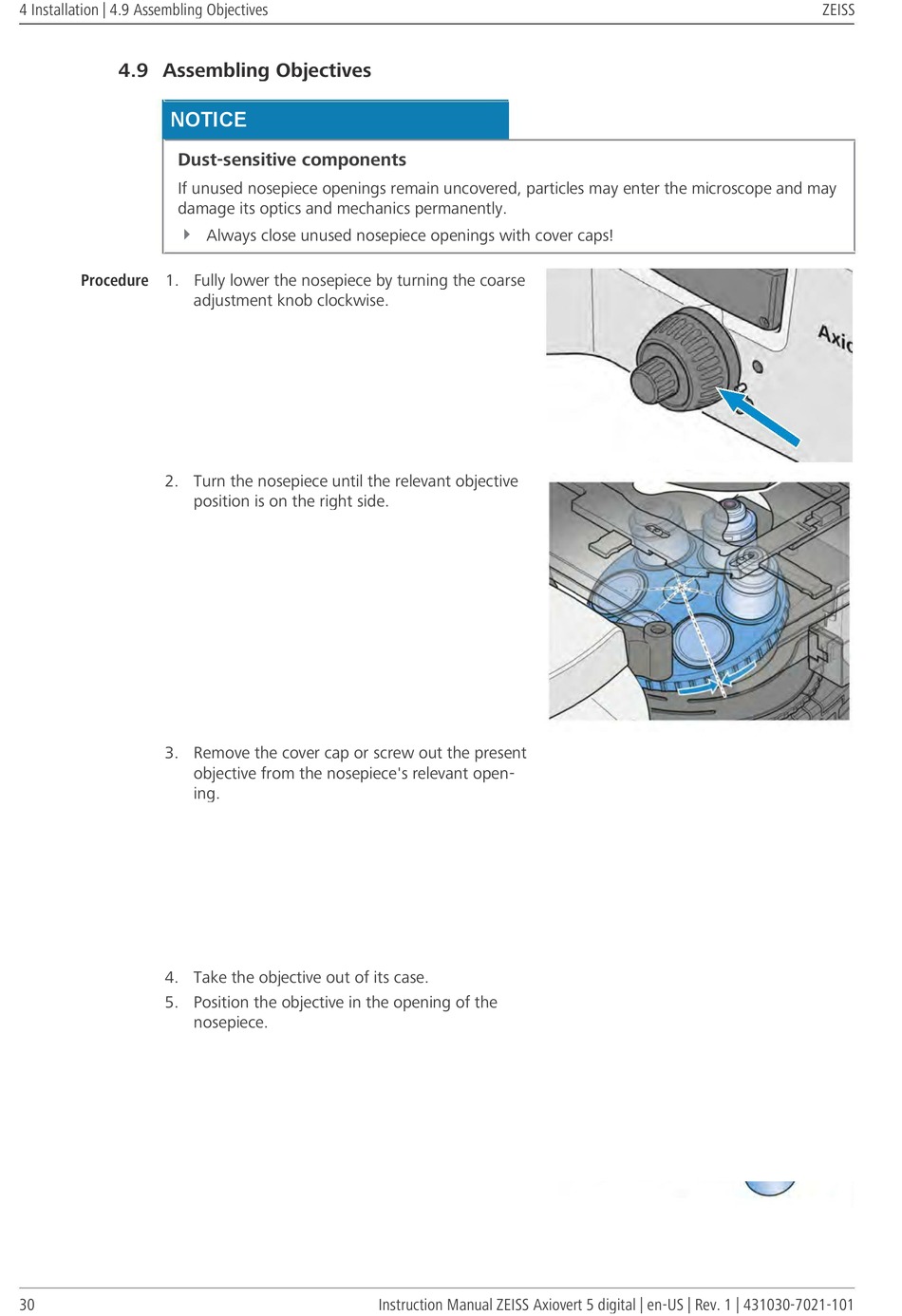

4 .9 Assembling Objectives

NOTICE
Dust-sensitive components
If unused nosepiece openings remain uncovered, particles may enter the microscope and may
damage its optics and mechanics permanently.
4
Procedure 1. Fully lower the nosepiece by turning the coarse
2 . Turn the nosepiece until the relevant objective
3 . Remove the cover cap or screw out the present
4 . Take the objective out of its case.
5 . Position the objective in the opening of the
3 0
Always close unused nosepiece openings with cover caps!
adjustment knob clockwise.
position is on the right side.
objective from the nosepiece's relevant open-
ing.
nosepiece.
