4 . Connect the USB type C cable to the Microsoft
5 . Connect the USB type C cable to the Tablet

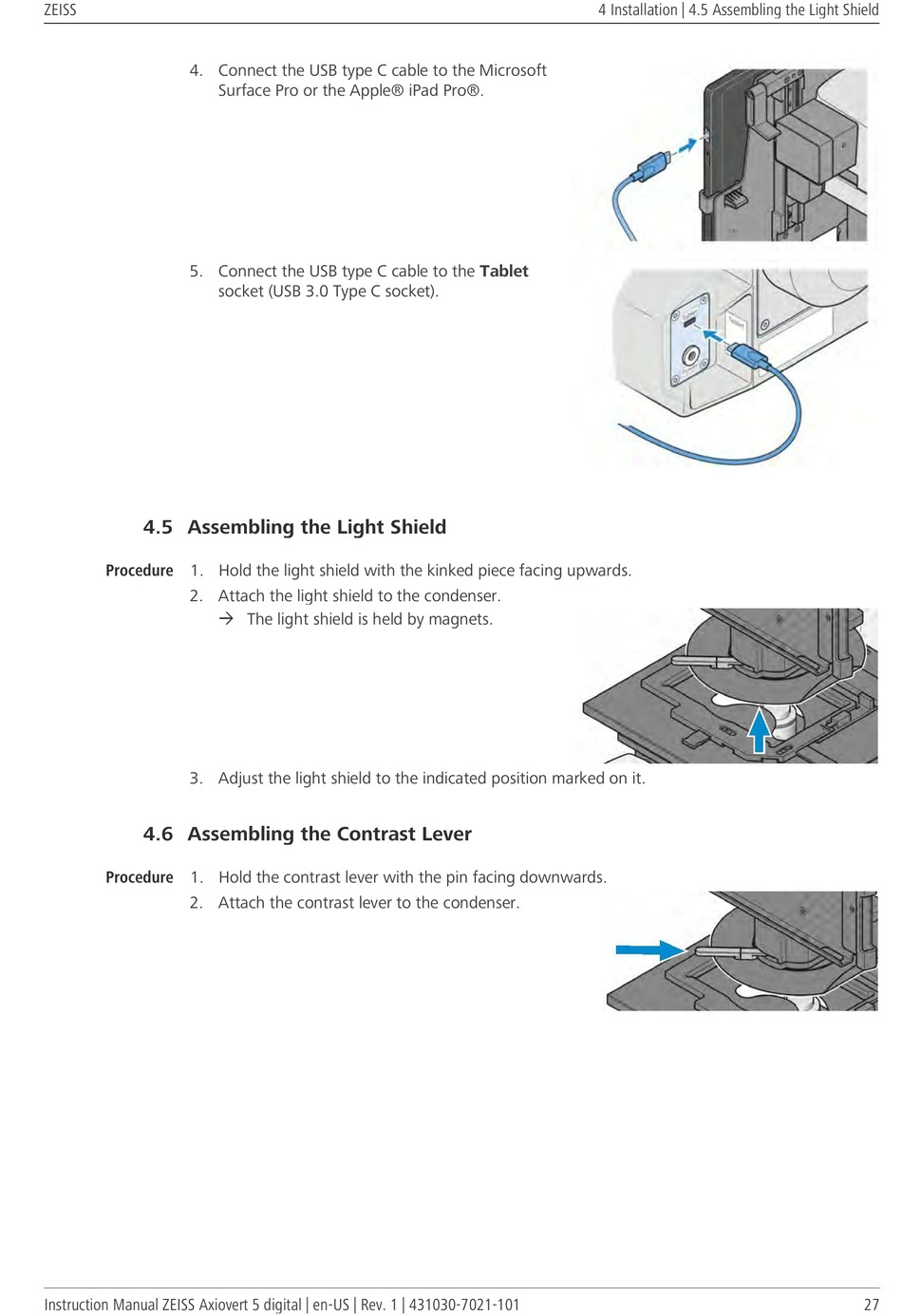

4 .5 Assembling the Light Shield

Procedure 1. Hold the light shield with the kinked piece facing upwards.
2 . Attach the light shield to the condenser.
3 . Adjust the light shield to the indicated position marked on it.

4 .6 Assembling the Contrast Lever

Procedure 1. Hold the contrast lever with the pin facing downwards.
2 . Attach the contrast lever to the condenser.
Instruction Manual ZEISS Axiovert 5 digital | en-US | Rev. 1 | 431030-7021-101
Surface Pro or the Apple® iPad Pro®.
socket (USB 3.0 Type C socket).
à
The light shield is held by magnets.
4 Installation | 4.5 Assembling the Light Shield
27
