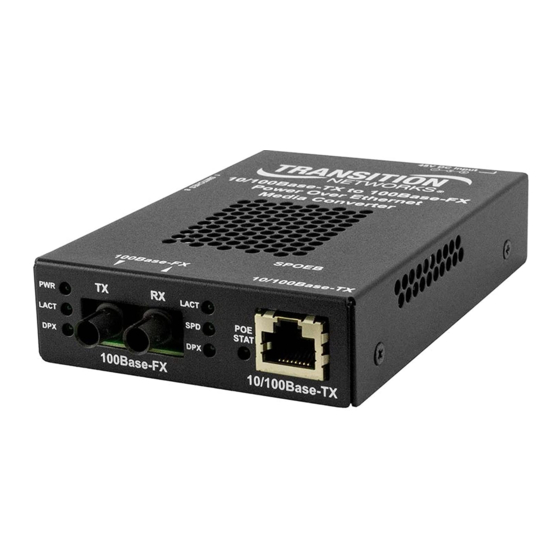

Transition Networks SPOEB1011-100 User Manual

Stand-alone media converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version

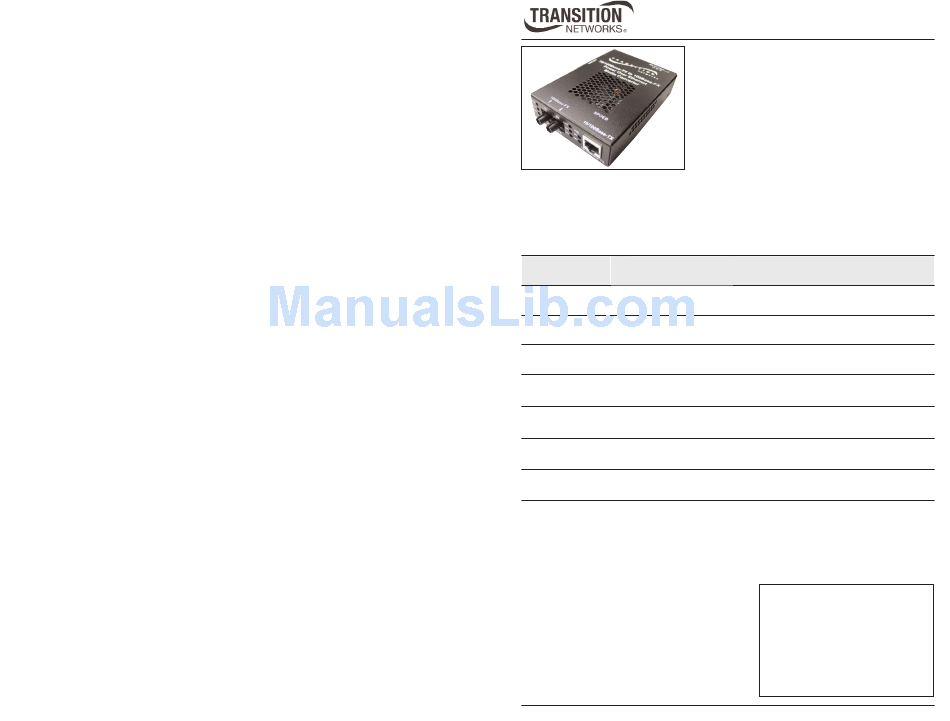

SPOEB10xx-100
User's Guide
• Stand-Alone Media Converter
• Power Over Ethernet
• 10/100Base-TX to 100Base-FX
The SPOEB10xx-1xx Power over Ethernet (POE)
is a two port 10/100Base-TX to 100Base-FX media converter capable of providing
power to Data Terminal Equipment (DTE) Power Devices (PD) via the Media
Dependent Interface (MDI) twisted pair cable. The SPOEB10xx-100 emulates Power
Sourcing Equipment (PSE) and provides power via the 10/100Base-TX interface for a
remote PD device that complies with the IEEE802.3af™ standard.
Part Number
Port One - Copper
10/100Base-TX
SPOEB1011-100 RJ-45
100 m (328 ft.)*
SPOEB1013-100 RJ-45
100 m (328 ft.)*
SPOEB1014-100 RJ-45
100 m (328 ft.)*
SPOEB1015-100 RJ-45
100 m (328 ft.)*
SPOEB1016-100 RJ-45
100 m (328 ft.)*
SPOEB1017-100 RJ-45
100 m (328 ft.)*
SPOEB1035-100 RJ-45
100 m (328 ft.)*
*Cable distances are the typical maximum distances. Actual distance is
dependent upon the physical characteristics of the network installation.
Port Two - Duplex Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)
SC, 1300 nm multimode
2 km (1.2 miles)
SC, 1310 nm single mode
20 km (12.4 miles)
SC, 1310nm single mode
40 km (24.9 miles)
SC, 1310 nm single mode
60 km (37.3 miles)
SC, 1550 nm single mode
80 km (49.7 miles)
SC, 1310 nm single mode
120 km (74.6 miles)
Installation . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . .9
Cable Specifications . . . . . .10
Technical Specifications . . .12
Troubleshooting . . . . . . . . .13
Contact Us . . . . . . . . . . . . .15
Compliance Information . . .16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPOEB1011-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks SPOEB1011-100

Summary of Contents for Transition Networks SPOEB1011-100

  • Page 1 PD device that complies with the IEEE802.3af™ standard. Part Number Port One - Copper Port Two - Duplex Fiber-Optic 10/100Base-TX 100Base-FX SPOEB1011-100 RJ-45 ST, 1300 nm multimode 100 m (328 ft.)* 2 km (1.2 miles) SPOEB1013-100 RJ-45 SC, 1300 nm multimode 100 m (328 ft.)*...

  • Page 2: Installation

    SPOEB10xx-1xx Part Number Port One - Copper Port Two - Duplex Fiber-Optic 10/100Base-TX 100Base-FX Single fiber, Installed in pairs SPOEB1029-100 RJ-45 SC, 1310Tx/1550Rx nm single mode 100 m (328 ft.)* 20 km (12.4 miles) SPOEB1029-101 RJ-45 SC, 1550Tx/1310Rx nm single mode 100 m (328 ft.)* 20 km (12.4 miles) *Cable distances are the typical maximum distances.

  • Page 3: Additional Features

    SPOEB10xx-1xx Installation -- continued Eight-position configuration switch -- continued 2 - Speed Up - Forces 100 Mb/s on the copper port. Down - Forces 10 Mb/s on the copper port. (Only when Auto-Negotiation is disabled) 3 - TP Full/Half Duplex Up - Full-Duplex the twisted-pair cable distances are constrained by the cable requirements.

  • Page 4: Install The Copper Cable

    • Prevents loss of valuable data transmitted unknowingly over invalid link • Allows quick diagnosis and resolution of network problem Transition Networks’ media converters that include the FEF feature will work with other network devices that support Far End Fault per IEEE standards.

  • Page 5: Power Over Ethernet (Poe)

    SPOEB10xx-1xx Installation -- Continued Power over Ethernet (PoE) SPOEB10xx-1xx media converter transmits electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. There are two modes of transmitting 48VDC PoE as defined in IEEE 802.3af: Mode A uses pins 1&2, 3&6 to transmit data and power;...

  • Page 6: Cable Specifications

    Bit Error Rate: Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm SPOEB1011-100 1300 nm multimode (DC-Powered) Fiber-optic Transmitter Power: min: -19.0 dBm Fiber-optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB...

  • Page 7: Technical Specifications

    SPOEB10xx-1xx Technical Specifications For use with Transition Networks Model SPOEB10xx-100 or equivalent Standards IEEE 802.3, IEEE 802.3af Data Rate 10/100 Mb/s Packet Size (Max) 1522 bytes Mac Address Dimensions 3.25" x 1” x 4.8" (82 mm x 25.4mm x 120mm) Weight 0.8 lbs.
  • Page 8 Transition Networks 6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: SPOEB10xx-1xx Series Media Converters Part Number(s): SPOEB1011-100, SPOEB1013-100, SPOEB1014-100 SPOEB1015-100, SPOEB1016-100, SPOEB1017-100, SPOEB1035-100, SPOEB1029-100, SPOEB1029-101 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SPOEB10xx-1xx to which this declaration refers is in conformity with the following standards.

  • Page 9: Compliance Information

    SPOEB10xx-1xx Compliance Information CISPR22/EN55022 Class A CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
