Part Number
Port One - RS-232
J/RS232-CF-01
RS-232 (female, DCE)
15 m (50 ft)*
J/RS232-CF-01(SC)
RS-232 (female, DCE)
15 m (50 ft)*
J/RS232-TF-01
RS-232 (male, DTE)
15 m (50 ft)*
J/RS232-TF-01(SC)
RS-232 (male, DTE)
15 m (50 ft)*
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network installation.
Optional Accessories: (sold separately)
Part Number Description
SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone
Output: 12.6VDC, 1.0 A
SPS-1872-CC Optional External Power Supply; 18-72VDC Piggy-back;
Output: 12.6VDC, 1.0 A
E-MCR-04
12-Slot Media Converter Rack (includes universal internal power
supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)
WMBS
Optional Wall Mount Brackets
Length: 3.2 in. (81 mm), Fits converter length: 3.9 in. (99 mm)
WMBV
Optional Vertical Mount Bracket; 5.0 in. (127 mm)
WMBD
Optional DIN Rail Mount Bracket; 5.0 in. (127 mm)
WMBD-FS
Optional DIN Rail Mount Bracket (flat, small); 3.1in. (79 mm)
User's Guide
J/RS232-xx-01
Stand-Alone Media Converter
• Just Convert-It
• RS-232 to Fiber

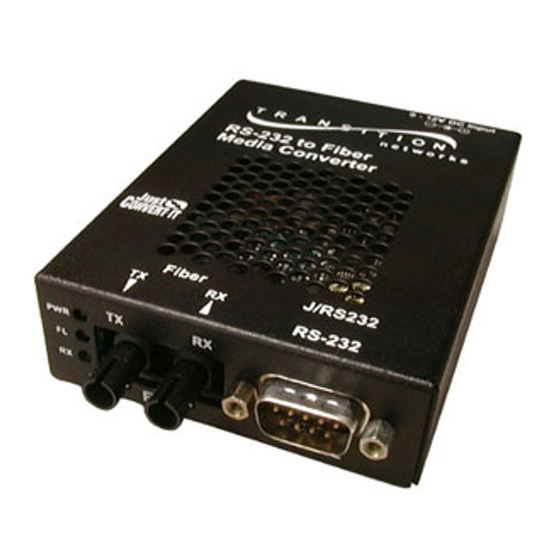

Transition Networks J/RS232-xx-01
series media converter connects RS-
232 cable to fiber-optic cable at data
rates up to 120 kB/s asynchronous.
Port Two - Fiber-Optic
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .4
Cable Specifications . . . . . . . . . . .5
Technical Specifications . . . . . . . .6
Troubleshooting . . . . . . . . . . . . . .7
Compliance Information . . . . . . . .8
Advertisement
Table of Contents
Related Manuals for Transition Networks J/RS232-CF-01(SC)
Summary of Contents for Transition Networks J/RS232-CF-01(SC)
- Page 1 User’s Guide J/RS232-xx-01 Stand-Alone Media Converter • Just Convert-It • RS-232 to Fiber Transition Networks J/RS232-xx-01 series media converter connects RS- 232 cable to fiber-optic cable at data rates up to 120 kB/s asynchronous. Part Number Port One - RS-232 J/RS232-CF-01 RS-232 (female, DCE) 15 m (50 ft)*...
-
Page 2: Installation
J/RS232-xx-01 Installation DTE and DCE Each J/RS232-xx-01 model is configured as a: • DTE (Data Terminal Equipment) with a male RS-232 port, or a • DCE (Data Communication Equipment) with a female RS-232 port. So, the type of media converter and the application in which it is used determines which type of RS-232 cable is needed: •... -
Page 3: Operation
J/RS232-xx-01 Installation -- Continued Install the Fiber Cable Locate or build fiber cable with male, two-stranded TX to RX connectors installed at both ends. Connect the fiber cables to the first J/RS232-xx-01 media converter as described: • Connect the male TX cable connector to the female TX port. •... -
Page 4: Technical Specifications
J/RS232-xx-01 Technical Specifications For use with Transition Networks Model J/RS232-xx-01 or equivalent Data Rate 120 Kb/s, asynchronous Dimensions 3.0" x 3.9" x 1.0" (76 mm x 99 mm x 25 mm) Shipping Weight 6 oz. (181 g) (approximately) Power Consumption 3 Watts Power Supply 12 VDC, 0.5 A (North America) -
Page 5: Compliance Information
Compliance Information CISPR22/EN55022 Class A + EN55024; CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
