Transition Networks SPSVT2611-100 User Manual

Stand alone media converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
copper cable, at speeds up to 10 Mb/s, through a universal 26-pin serial interface
connector to fiber-optic cable. Transition Networks also supplies cables for
connecting network equipment to the SPSVT26xx-10x series media converter.
Part Number
Port One - Copper
SPSVT2611-100
Universal 26-pin
serial interface*
SPSVT2613-100
Universal 26-pin
serial interface*
SPSVT2614-100
Universal 26-pin
serial interface*
SPSVT2615-100
Universal 26-pin
serial interface*
SPSVT2616-100
Universal 26-pin
serial interface*
SPSVT2617-100
Universal 26-pin
serial interface*
* For typical maximum cable distance, see the chart on page 3.
** Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network installation.
The chassis version of this media converter is CPSVT26xx-10x. For more
information, see the user's guide for the CPSVT26xx-10x on-line at
www.transition.com

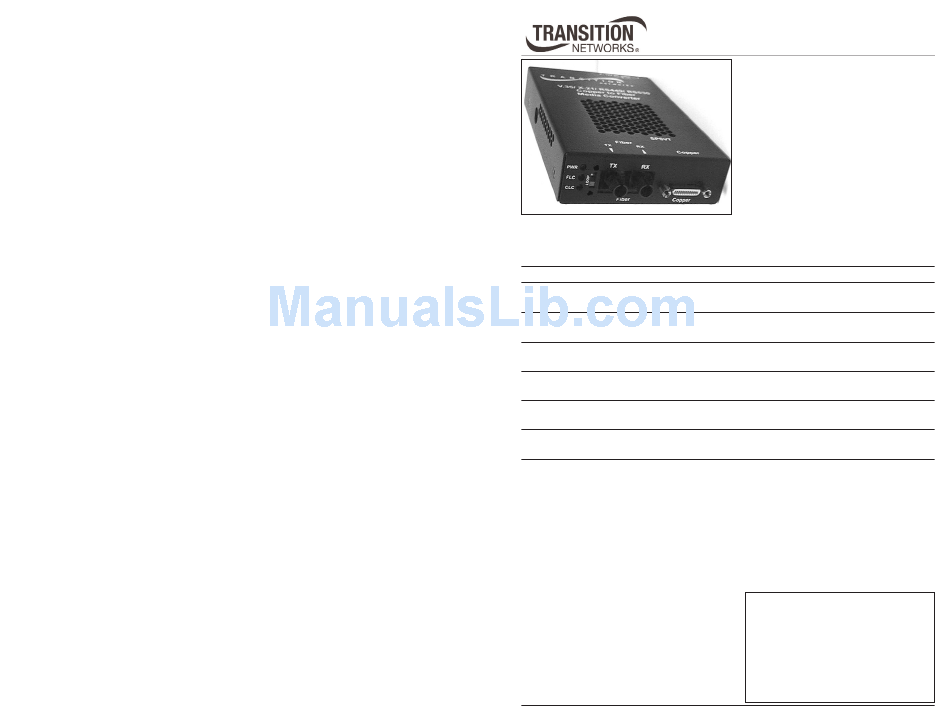

User's Guide
SPSVT26xx-10x
Stand Alone Media Converter
• High-Speed Serial
• V.35/X.21/RS449/RS530/RS232
• Copper to Fiber
Transition Networks SPSVT26xx-10x
series high-speed serial copper-to-fiber
media converter connect V.35, X.21,
RS-449, RS-530, or RS-232 signals on
Port Two - Duplex Fiber-Optic
ST, 1300 nm multimode
2 km (1.2 miles)**
SC, 1300 nm multimode
2 km (1.2 miles)**
SC, 1310 nm single mode
20 km (12.4 miles)**
SC, 1310 nm single mode
40 km (24.9 miles)**
SC, 1310 nm single mode
60 km (37.3 miles)**
SC, 1550 nm single mode
80 km (49.7 miles)**
Cable Options . . . . . . . . . . . . . . .3
Installation . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . .9
Cable Specifications . . . . . . . . . .10
Technical Specifications . . . . . . .12
Troubleshooting . . . . . . . . . . . . .13
Contact Us . . . . . . . . . . . . . . . . .15
Compliance Information . . . . . . .16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPSVT2611-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks SPSVT2611-100

Summary of Contents for Transition Networks SPSVT2611-100

  • Page 1 Transition Networks also supplies cables for connecting network equipment to the SPSVT26xx-10x series media converter. Part Number Port One - Copper Port Two - Duplex Fiber-Optic SPSVT2611-100 Universal 26-pin ST, 1300 nm multimode serial interface* 2 km (1.2 miles)**...

  • Page 2: Cable Options

    SPSVT26xx-10x Part Number Port One - Copper Port Two - Single Fiber-Optic SPSVT2629-100 Universal 26-pin SC, single mode 1310 TX / 1550nm RX serial interface* 20 km (12.4 miles)** SPSVT2629-101 Universal 26-pin SC, single mode 1550 TX / 1310nm RX serial interface* 20 km (12.4 miles)** The SPSVT2629-100 and the -101 are intended to be installed...

  • Page 3: Installation

    SPSVT26xx-10x Installation CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the switches and jumpers. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter. Set the Terminal Timing Switch The 16-position terminal timing switch, located on the side of the media converter, allows the network administrator to configure the media converter for various network conditions.

  • Page 4: Remote Management

    For example, a local CPSVT2611-100 converter (that is installed in a managed Transition Networks PointSystem™ chassis) is connected, via fiber, to a remote SPSVT2611-100 converter. An example of a managed single-fiber network has a local CPSVT2629-100 converter connected, via fiber, to a remote SPSVT2629-101.

  • Page 5: Operation

    SPSVT26xx-10x Installation -- Continued Install the Fiber Cable Locate or build fiber optic cable with male, two-stranded TX to RX connectors installed at both ends. Connect the fiber cables to the SPSVT26xx-10x media converter as described: • Connect the male TX cable connector to the female TX port. •...

  • Page 6: Cable Specifications

    <10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm SPSVT2611-100 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB...

  • Page 7: Technical Specifications

    Verify that the TX and RX cables on the media converter are connected to the RX and TX ports, respectively, on the other device. • Are both media converters (connected via the fiber cables) in the same mode (synchronous or asynchronous)? •...
  • Page 8 Name of Mfg: Transition Networks 6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: SPSVT26xx-10x Series Media Converters Part Number(s): SPSVT2611-100, SPSVT2613-100, SPSVT2614-100, SPSVT2615-100, SPSVT2616-100, SPSVT2617-100, SPSVT2629-100, SPSVT2629-101, SPSVT2629-102, SPSVT2629-103 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SPSVT26xx-10x to which this declaration refers is in conformity with the following standards.

  • Page 9: Compliance Information

    Compliance Information CISPR22/EN55022 Class A + EN55024 CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
