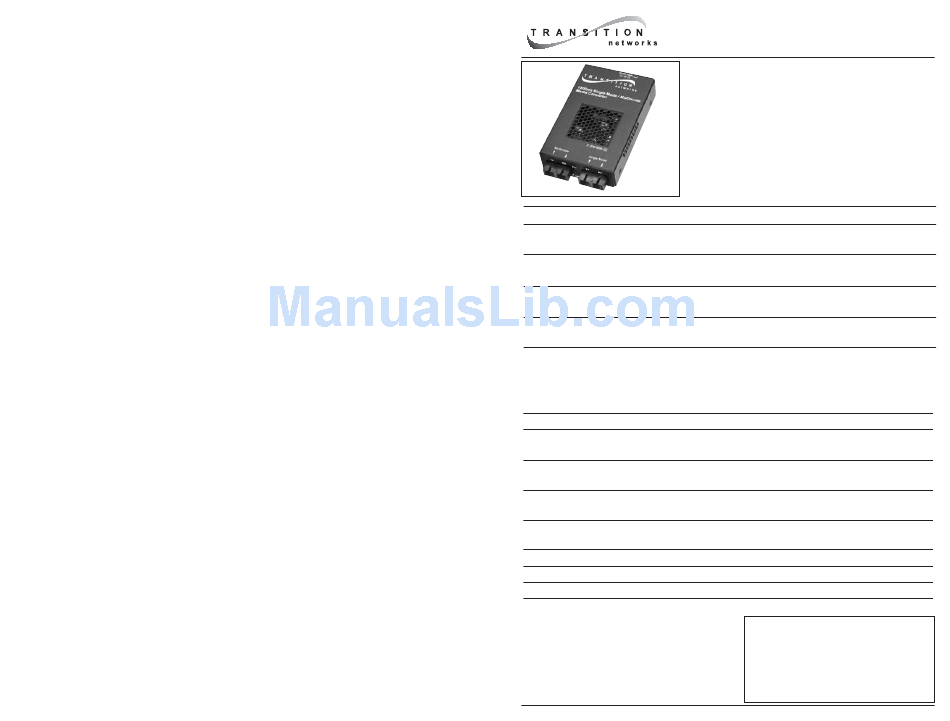

USER'S GUIDE
F-SM-MM-02
Stand-Alone Media Converter
• Fast Ethernet or ATM
• Singlemode to Multimode
Transition Networks F-SM-MM-02 Fast Ethernet
Media Converter extends Fast Ethernet or ATM
over singlemode fiber-optic cable up to 80 km.
Part Number
Port One - Fiber-Optic
F-SM-MM-02
SC, 1300 nm multimode
2 km (1.2 miles)*
F-SM-MM-02(LH) SC, 1300 nm multimode
2 km (1.2 miles)*
F-SM-MM-02(XL)
SC, 1300 nm multimode
2 km (1.2 miles)*
F-SM-MM-02(LW) SC, 1300 nm multimode
2 km (1.2 miles)*
* Typical maximum cable distance. (Actual distance is dependent upon the
physical characteristics of the network.)
Optional Accessories (sold separately)
Part Number Description
SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone
Output: 12.6VDC, 1.0 A
SPS-1872-CC Optional External Power Supply; 18-72VDC Piggy-back;
Output: 12.6VDC, 1.0 A
E-MCR-03
12-Slot Media Converter Rack (includes universal internal power
supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)
WMBL
Optional Wall Mount Brackets
Length: 4.0 in. (102 mm), Fits converter length: 4.7 in. (119 mm)
WMBV
Optional Vertical Mount Bracket; Length: 5.0 in. (127 mm)
WMBD
Optional DIN Rail Mount Bracket; Length: 5.0 in. (127 mm)
WMBD-F
Optional DIN Rail Mount Bracket (flat); Length: 3.3in. (84 mm)
Port Two - Fiber-Optic
SC, 1310 nm singlemode
20 km (12.4 miles)*
SC ,1310 nm singlemode
40 km (24.9 miles)*
SC, 1310 nm singlemode
60 km (37.3 miles)*
SC ,1550 nm singlemode
80 km (49.7 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .3
Cable Specifications . . . . . . . . . . .4
Technical Specifications . . . . . . . .5
Fault Isolation and Correction . . .6
Compliance Information . . . . . . . .8
Advertisement
Table of Contents
Related Manuals for Transition Networks F-SM-MM-02(LH)
Summary of Contents for Transition Networks F-SM-MM-02(LH)
- Page 1 USER’S GUIDE F-SM-MM-02 Stand-Alone Media Converter • Fast Ethernet or ATM • Singlemode to Multimode Transition Networks F-SM-MM-02 Fast Ethernet Media Converter extends Fast Ethernet or ATM over singlemode fiber-optic cable up to 80 km. Part Number Port One - Fiber-Optic Port Two - Fiber-Optic F-SM-MM-02 SC, 1300 nm multimode...
-
Page 2: Installation
F-SM-MM-02 INSTALLATION Installing the Cable FIBER Locate or build fiber cable with male, two-stranded TX to RX connectors installed at both ends. Connect the fiber cables to the Media Converter as described: • Connect the male TX cable connector the female TX port. •... -
Page 3: Cable Specifications
F-SM-MM-02 CABLE SPECIFICATIONS The physical characteristics must meet or exceed IEEE 802.3u specifications. <10 -9 Bit Error Rate: Multimode 1300 nm Recommended: 62.5/125 µm Optional: 100/140, 85/125, 50/125 µm Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB... -
Page 4: Fault Isolation And Correction
952-941-2322 DECLARATION OF CONFORMITY Name of Mfg: Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: F-SM-MM-02 Series Media Converters Part Number(s): F-SM-MM-02, F-SM-MM-02(LH), F-SM-MM-02(XL) F-SM-MM-02(LW) Regulation: EMC Directive 89/336/EEC Purpose: To declare that the F-SM-MM-02 to which this declaration refers is in conformity with the following standards. -
Page 5: Compliance Information
COMPLIANCE INFORMATION UL Listed C-UL Listed (Canada) CISPR22/EN55022 Class A CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
