User Guide

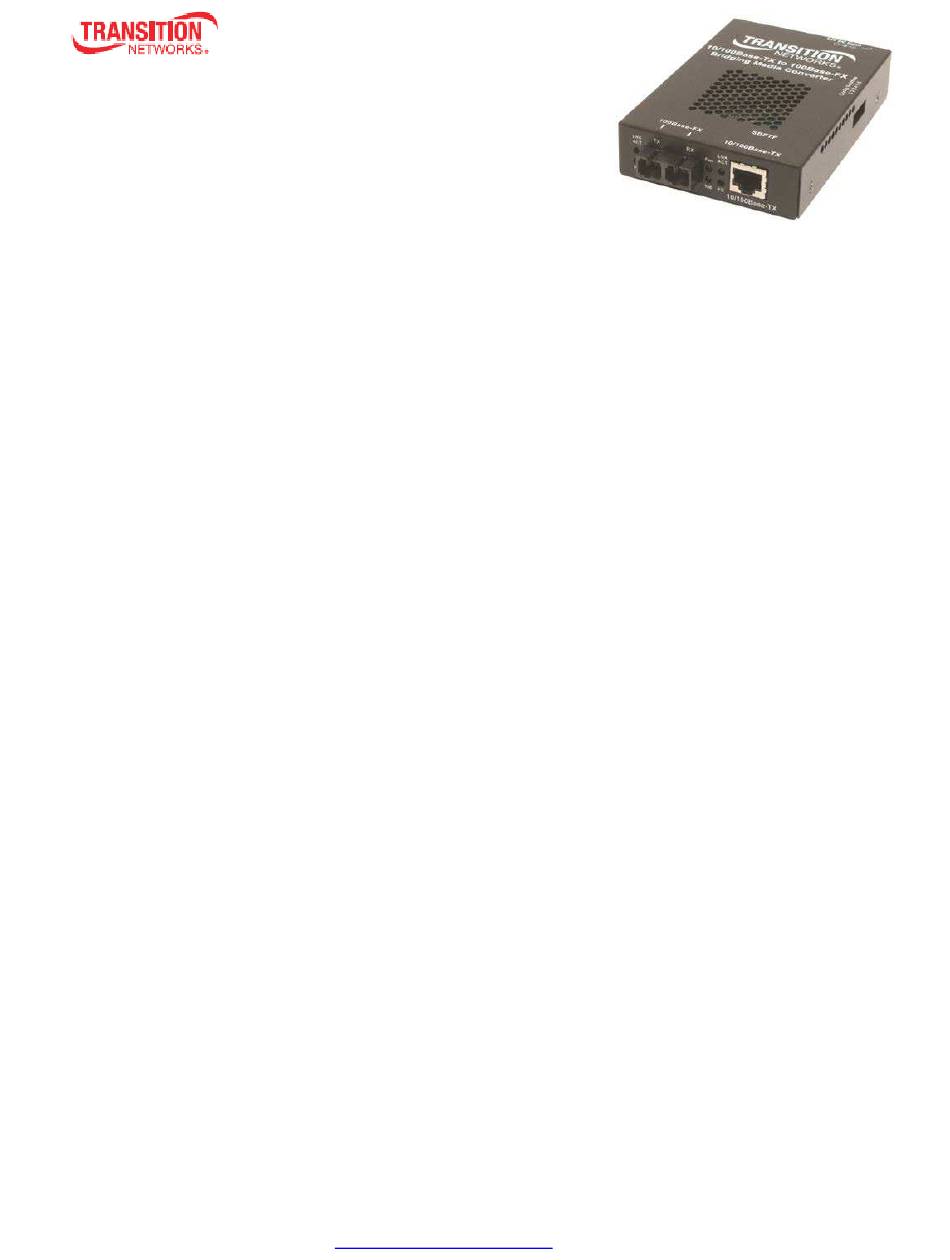

SBFTF10xx-1xx
Stand-Alone Media Converters
• Copper to Fiber
• 10/100 Bridging (2 Ports)
• 10/100Base-TX to 100Base-FX
• Auto-Negotiation
• Auto-MDI/MDIX
• Link Pass Through
• Far-End-Fault (FEF) Detection
• Automatic Link Restoration Extend network distance up to 120km
• Bridging devices will provide conversion and integration solutions for half and full-duplex environments
• 10 Mbps or 100 Mbps on TP port
• Half or full-duplex on all ports including fiber
Contents
Introduction .................................................................................................................................................. 1
Ordering Information .................................................................................................................................... 2
Optional Accessories (sold separately) ......................................................................................................... 2
Installation .................................................................................................................................................... 3
Set the 6-position DIP Switch ................................................................................................................... 3
Connect the Twisted-Pair Copper Cable ................................................................................................... 4
Connect the Fiber Cable ........................................................................................................................... 5
Power the Media Converter ..................................................................................................................... 5
Product Features ...................................................................................................................................... 6
Operation ...................................................................................................................................................... 8
Status LEDs ............................................................................................................................................... 8
Half-Duplex Network ................................................................................................................................ 9
Cable Specifications ................................................................................................................................ 12
Technical Specifications .............................................................................................................................. 14
Troubleshooting .......................................................................................................................................... 15
Contact Us ................................................................................................................................................... 16
Compliance Information ............................................................................................................................. 17
Declaration of Conformity ...................................................................................................................... 17
CE Mark ................................................................................................................................................... 17
Record of Revisions ..................................................................................................................................... 18
Introduction
Transition Networks SBFTF10xx-10x 2-port Ethernet/Fast Ethernet bridging media converter connects
10Base-T Ethernet or 100Base-TX Fast Ethernet twisted-pair copper network devices to network devices
on a 100Base-FX Fast Ethernet fiber network.
The SBFTF10xx-105 provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing
users to integrate fiber optic cabling into 10/100Base-TX copper environments. Operating at Layer 2,
this converter not only converts copper to fiber, but it also does Rate Conversion, converting 10/100
copper to 100Base fiber.
33404 Rev. G
https://www.transition.com
Page 1 of 18
Advertisement
Table of Contents
Related Manuals for Transition Networks SBFTF10 1 Series
Summary of Contents for Transition Networks SBFTF10 1 Series
-
Page 1: Table Of Contents
CE Mark ..............................17 Record of Revisions ............................. 18 Introduction Transition Networks SBFTF10xx-10x 2-port Ethernet/Fast Ethernet bridging media converter connects 10Base-T Ethernet or 100Base-TX Fast Ethernet twisted-pair copper network devices to network devices on a 100Base-FX Fast Ethernet fiber network. -
Page 2: Ordering Information
Optional Vertical Mount Bracket; Length: 5.0 in. (127 mm) WMBD Optional DIN Rail Mount Bracket; Length: 5.0 in. (127 mm) WMBD-F Optional DIN Rail Mount Bracket (flat); Length: 3.3in. (84 mm) SFP Modules See the Transition Networks webpage. 33404 Rev. G https://www.transition.com Page 2 of 18... -
Page 3: Installation
Transition Networks SBFTF10xx-10x User Guide Installation CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the 6-position DIP switch. Failure to observe this caution could result in damage to the media converter. Set the 6-position DIP Switch The 6-position switch is located located on the side of the media converter. -
Page 4: Connect The Twisted-Pair Copper Cable
Transition Networks SBFTF10xx-10x User Guide Connect the Twisted-Pair Copper Cable Ensure that the correct cable type is installed to support the highest speed and mode of operation to be selected. Although Category 3 cable is adequate for the 10Base-T installation, Category 5 cable is strongly recommended, since Category 3 cable can not be used for 100Base-TX installation. -
Page 5: Connect The Fiber Cable
2. Connect the power adapter plug to AC power. 3. Verify that the media converter is powered by observing the Pwr LED is lit. See the Transition Networks external power supply user guide for powering the media converter. 33404 Rev. G https://www.transition.com... -
Page 6: Product Features
Transition Networks SBFTF10xx-10x User Guide Product Features Rate Conversion The media converter allows connection of 10Mb/s terminal devices on a 10Base-T legacy Ethernet copper network to 100Mb/s terminal devices on a 100Base-TX Fast Ethernet copper network and/or to 100Mb/s terminal devices on a 100Base-FX Fast Ethernet fiber network. - Page 7 Transition Networks SBFTF10xx-10x User Guide Distance Extension The SBFTF10xx-10x media converter segments 10Base-T copper Ethernet and/or 100Base-TX copper Fast Ethernet and 100Base-FX fiber Fast Ethernet collision domains. In a half-duplex Ethernet or Fast Ethernet environment, the SBFTF10xx-10x media converter extends network distances by segmenting collision domains so that the 5-Segment Rule or the 512-Bit Rule applies separately to each collision domain.
-
Page 8: Operation
Transition Networks SBFTF10xx-10x User Guide Operation Status LEDs Use the status LEDs to monitor the SGETF10xx-1xx media converter operation in the network. Description ON = Power applied Power OFF = Not powered Fiber LEDs ON Solid = Link established LNK ACT... -
Page 9: Half-Duplex Network
Transition Networks SBFTF10xx-10x User Guide Half-Duplex Network 512-Bit Rule – 100Base-TX or 100Base-FX Use the 512-Bit Rule to calculate the 100Base-TX or 100Base-FX half-duplex collision domain. In a half-duplex network, the maximum cable lengths are determined by the round trip delay limitations of each Fast Ethernet collision domain. - Page 10 Transition Networks SBFTF10xx-10x User Guide 100Base-TX fiber Example The drawing below illustrates a collision domain where two media converters are connected via fiber cable. Since the total of the bit-times in this example is less than 512 (50BT + 400BT + 50BT = 500BT) the path is good.
- Page 11 Transition Networks SBFTF10xx-10x User Guide 10Base-T Twisted-pair Example The example below illustrates below applying the 5-Segment Rule. The cable between each network device (media converter, Hub, or Terminal) is numbered as a “segment”. Note that the longest transmission path (from the media converter at the top to the terminal at the bottom) is 5 segments.
-
Page 12: Cable Specifications
Transition Networks SBFTF10xx-10x User Guide Cable Specifications The physical characteristics must meet or exceed the IEEE 802.3™ specifications. Fiber Cable Bit Error Rate: <10-9 9 μm Single mode fiber (recommended): 62.5/125 μm Multimode fiber (recommended): 100/140, 85/140, 50/125 μm Multimode fiber (optional):... - Page 13 Transition Networks SBFTF10xx-10x User Guide SBFTF1035-105 single mode Fiber-optic Transmitter Power: min: 0.0 dBm max: 5.0 dBm Fiber-optic Receiver Sensitivity: min: -36.0 dBm max: -3.0 dBm Link Budget: 36dB SBFTF1039-105 multimode Fiber-optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm Fiber-optic Receiver Sensitivity: min: -30.0 dBm...
-
Page 14: Technical Specifications
Transition Networks SBFTF10xx-10x User Guide Technical Specifications For use with Transition Networks Model SBFTF10xx-10x or equivalent. Data Rate 10 Mbps; 100 Mbps, Layer 2 Dimensions Width: 3.25” [82.55 mm] x Depth: 4.8” [121.92 mm] x Height: 1" [25 mm] Weight 2 lbs. -
Page 15: Troubleshooting
Transition Networks SBFTF10xx-10x User Guide Troubleshooting If the media converter fails, isolate and correct the fault by determining the answers to the following questions and then taking the indicated action: Is the PWR (power) LED lit? • Is the power cord properly installed in the media converter and at the external power source? •... -
Page 16: Contact Us
Transition Networks SBFTF10xx-10x User Guide Is the Link in the proper position? • The link may “flap” (go from “link up” to “link down”) when the link is lost (if the media converter has the Link Pass-Through function enabled and is in forced 10/100 Mb mode). -
Page 17: Compliance Information
Transition Networks SBFTF10xx-10x User Guide Compliance Information Declaration of Conformity CE Mark FCC regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 18: Record Of Revisions
Trademark notice: All trademarks and registered trademarks are the property of their respective owners. Copyright restrictions: © 2008-2016 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic or mechanical - without written permission from Transition Networks.
