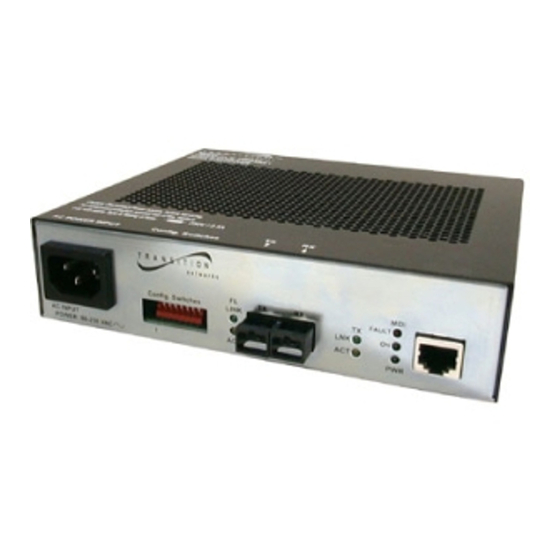

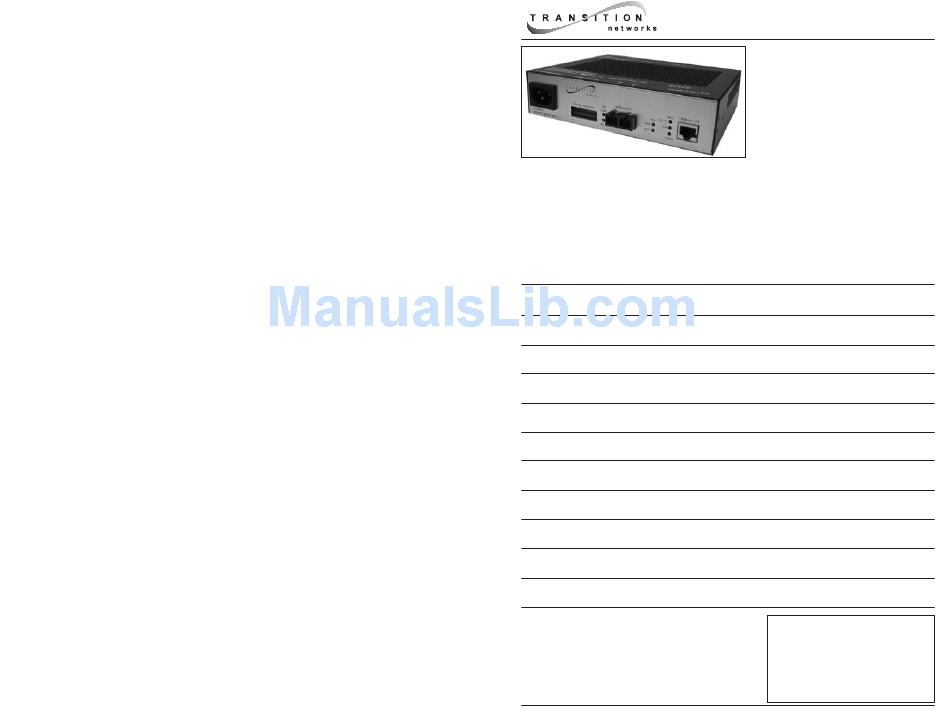

The SFEPE10xx-1xx Power Over Ethernet (POE) is a 100Base-TX to 100Base-FX
media converter capable of providing power to Data Terminal Equipment (DTE)
Power Devices (PD) via the Media Dependent Interface (MDI) twisted pair cable.
The SFEPE10xx-1xx emulates Power Sourcing Equipment (PSE) and is compatible
with Powered Devices (PD) that comply with the IEEE802.3af™ standard. The
SFEPE10xx-1xx also includes Transition Networks' proprietary PD signature sensing
and power monitoring features.
AC-Powered Models:
Part Number
Port One - Copper
100Base-TX
SFEPE1011-100 RJ-45
100 m (328 ft.)
SFEPE1013-100 RJ-45
100 m (328 ft.)
SFEPE1014-100 RJ-45
100 m (328 ft.)
SFEPE1015-100 RJ-45
100 m (328 ft.)
DC-Powered Models:
Part Number
Port One - Copper
100Base-TX
SFEPE1011-110 RJ-45
100 m (328 ft.)
SFEPE1013-110 RJ-45
100 m (328 ft.)
SFEPE1014-110 RJ-45
100 m (328 ft.)
SFEPE1015-110 RJ-45
100 m (328 ft.)
Cable distances are the typical maximum cable
distance. Actual distance is dependent upon
the physical characteristics of the network
installation.
SFEPE10xx-1xx
User's Guide
• Stand-Alone Media Converter
• Power Over Ethernet
• 100Base-TX to 100Base-FX
Port Two - Duplex Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)
SC, 1300 nm multimode
2 km (1.2 miles)
SC, 1310 nm single mode
20 km (12.4 miles)
SC, 1310 nm single mode
40 km (24.9 miles)
Port Two - Duplex Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)
SC, 1300 nm multimode
2 km (1.2 miles)
SC, 1310 nm single mode
20 km (12.4 miles)
SC, 1310 nm single mode
40 km (24.9 miles)
Installation . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . .9
Technical Specifications . . . . . .10
Cable Specifications . . . . . . . . .11
Maintenance . . . . . . . . . . . . . . .12
Troubleshooting . . . . . . . . . . . .13
Compliance Information . . . . . .16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFEPE1011-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks SFEPE1011-100

Summary of Contents for Transition Networks SFEPE1011-100

  • Page 1 AC-Powered Models: Part Number Port One - Copper Port Two - Duplex Fiber-Optic 100Base-TX 100Base-FX SFEPE1011-100 RJ-45 ST, 1300 nm multimode 100 m (328 ft.) 2 km (1.2 miles) SFEPE1013-100 RJ-45 SC, 1300 nm multimode 100 m (328 ft.) 2 km (1.2 miles)

  • Page 2: Installation And Service

    SFEPE10xx-1xx Optional Accessories (sold separately) Part Number Description WMBL Optional Wall Mount Brackets Length: 4.0 in. (102 mm), Fits converter length: 4.7in. (119mm) WMBD Optional DIN Rail Mount Bracket; Length: 5.0 in. (127 mm) WMBV Optional DIN Rail Mount Bracket; Length: 5.0 in. (127 mm) NOTE: The SEPOE10xx-1xx model is the Ethernet version of the media converter.

  • Page 3: Auto-Negotiation

    SFEPE10xx-1xx 4 - Voltage Polarity up (normal) - Selects positive (+) voltage on pairs 4 & 5 and 1 & 2 for both signal pairs and spare pairs (see switch 5). down (reverse) - Selects positive (+) voltage on pairs 7 & 8 and 3 & 6 for both signal pairs and spare pairs (see switch 5).
  • Page 4 SFEPE10xx-1xx Installation -- Continued Supplying AC Power to the SFEPE10xx-100 The SFEPE10xx-100 features under voltage lockout, which disables operation and eliminates excessive power draw from the external power source if the source falls below approximately 70 VAC. To connect AC power to the SFEPE10xx-100 Connect the female end of the AC power cord to the AC power connector on the SFEPE10xx-100.

  • Page 5: Installation

    SFEPE10xx-1xx Installation CAUTION: Associated Ethernet wiring shall be limited to inside the building. Install the Fiber Cable Locate or build 100Base-FX fiber cable with male, two-stranded TX to RX connectors installed at both ends. Connect the fiber cables to the SFEPE10xx-1xx media converter as described: •...

  • Page 6: Technical Specifications

    <10 -9 Bit Error Rate: Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm SFEPE1011-100 (AC-Powered) SFEPE1011-110 1300 nm multimode (DC-Powered) Fiber-optic Transmitter Power: min: -19.0 dBm Fiber-optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB...

  • Page 7: Maintenance

    SFEPE10xx-1xx Maintenance AC-Powered SFEPE10xx-100 CAUTION: No operator-serviceable parts inside the AC-powered SFEPE10xx-100 models. Refer all service to qualified personnel. DC-Powered SFEPE10xx-110 Catastrophic fault protection is provided by an internal 6.3 Amp fuse. CAUTION: Failure to observe the following cautions could result in damage to, and subsequent failure of, the SFEPE10xx-110 media converter, the external power supply, and any attached device.
  • Page 8 6475 City West Parkway, Minneapolis MN 55344 USA Model: SFEPE10xx-1xx Series Media Converters Part Number(s): SFEPE1011-100, SFEPE1013-100, SFEPE1014-100, SFEPE1015-100 SFEPE1011-110, SFEPE1013-110, SFEPE1014-110, SFEPE1015-110 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SFEPE10xx-1xx to which this declaration refers is in conformity with the following standards.

  • Page 9: Compliance Information

    Compliance Information CISPR22/EN55022 Class A CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
