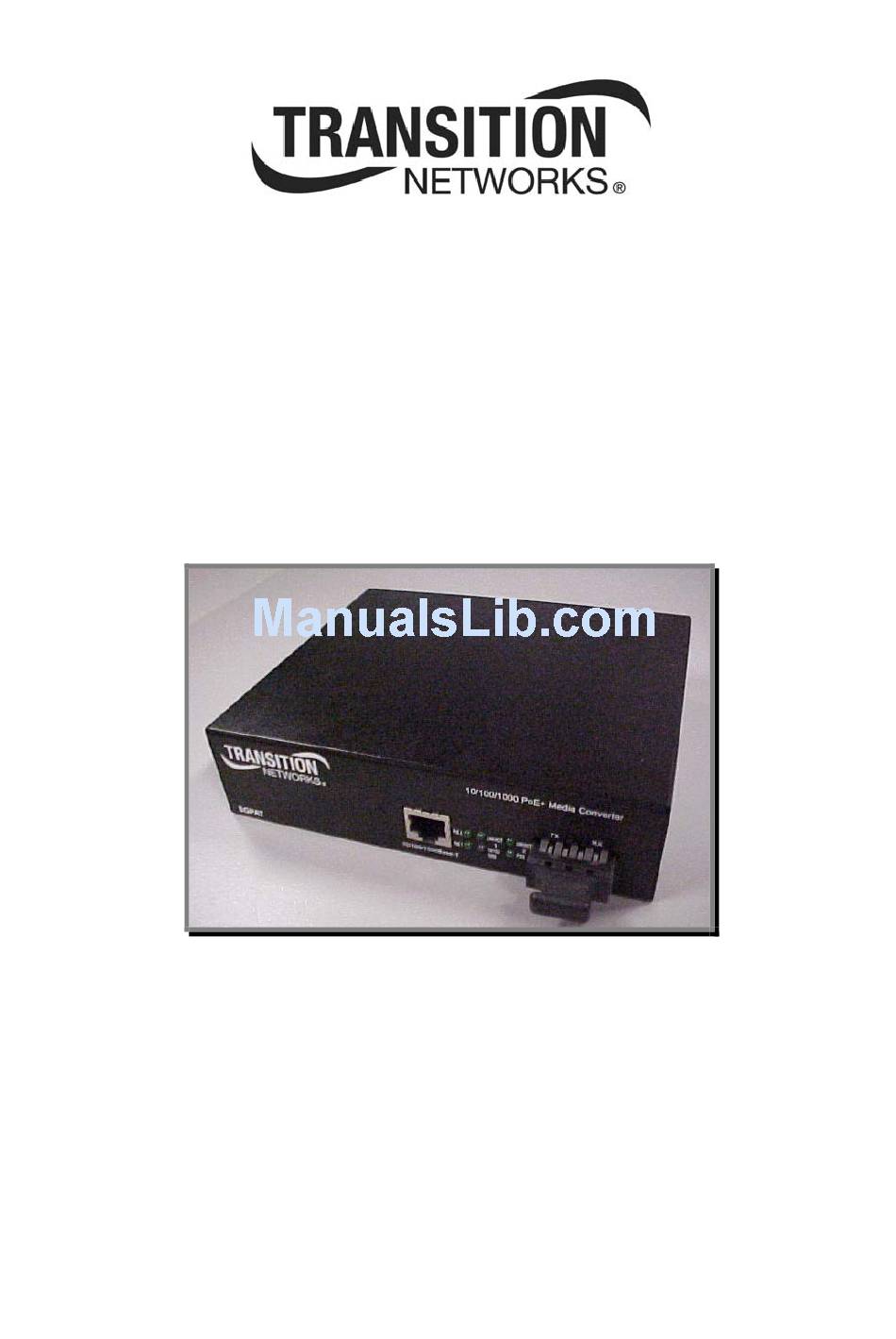

Page 1: User Guide
SGPAT10xx-100 10/100/1000Base-T to 1000Base-SX/LX PoE PSE+ GbE Media Converter User Guide 33515 Rev. A... -
Page 2: Contact Information
No part of this work may be reproduced or used in any form or by any means (graphic, electronic or mechanical) without written permission from Transition Networks. Printed in the U.S.A. SGPAT10xx-100 10/100/1000Base-T to 1000Base-SX/LX PoE PSE+ GbE Media Converter User Guide, 33515 Rev. A Contact Information... - Page 3 SGPAT10xx-100 User Guide Cautions and Warnings Definitions Cautions indicate that there is the possibility of poor equipment performance or potential damage to the equipment. Warnings indicate that there is the possibility of injury to a person. Cautions and Warnings appear here and may appear throughout this manual where appropriate. Failure to read and understand the information identified by this symbol could result in poor equipment performance, damage to the equipment, or injury to persons.
- Page 4 SGPAT10xx-100 User Guide Caution: Do not let optical fibers come into physical contact with any bare part of the body since they are fragile, and difficult to detect and remove from the body. Caution: Do not bend any part of an optical fiber/cable to a diameter that is smaller than the minimum permitted according to the manufacturer’s specification (usually about 65 mm or 2.5 in)!
-
Page 5: Table Of Contents
Wall Mount Installation (Optional) ...................14 Desktop Installation (Optional)..................14 Cabling Requirements ....................15 3. Applications ........................16 1. SGPAT10xx-100 connected to IP CAM (PD)..............16 2. SGPAT10xx-100 connect to PoE Splitter................16 LPT (Link Pass Through) Applications ..................17 1. Converter to Converter in pairs ..................17 2. -
Page 6: Caution
SGPAT10xx-100 User Guide Caution Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge. To protect your device, always touch the metal chassis of your computer to ground the static electrical charge before you pick up the circuit device. -
Page 7: Introduction
SGPAT10xx-100 User Guide 1. Introduction Overview The TN SGPAT10xx-100 is a 10/100/1000Base-T to 1000Based-SX/LX (SC/LC) IEEE802.3z/ab GbE media converter, which allows two types of network segments to be connected easily and inexpensively. It complies with IEEE802.3at (max. PoE output power consumption up to 30W) Power over Ethernet standard. -
Page 8: Features
DIP 2:LPT/LPT DIS DIP 3:PoE/PoE DIS Supports jumbo frame (Normal Mode:2KB, Cut-Through Mode:9KB) PSE RJ-45 Pin-out Alternatives A/B Auto detection RoHS Compliance Hardware Description Fig. 1-1: Full View of SGPAT10xx-100 33515 Rev. A http://www.transition.com/ Page 8 of 23... -
Page 9: Models
SGPAT10xx-100 User Guide Models Model Description 10/100/1000Base-T to 1000Base-SX PoE PSE+ GbE SGPAT1013-100 converter, SC Multi-Mode 10/100/1000Base-T to 1000Base-LX PoE PSE+ GbE SGPAT1014-100 converter, SC Single-Mode 10km 10/100/1000Base-T to 1000Base-SX PoE PSE+ GbE SGPAT1039-100 LC converter, Multi-Mode 10/100/1000Base-T to 1000Base-LX PoE PSE+ GbE... -
Page 10: Led Indicators
SGPAT10xx-100 User Guide LED Indicators There are 6 diagnostic LEDs located on the Front panel of SGPAT10xx-100 GbE Media Converter. These LED indicators provide administrators with real-time system status. The table below describes the LED indicator functions. Color Function Green... -
Page 11: User Interfaces On The Right Panel
SGPAT10xx-100 User Guide User Interfaces on the Right Panel The right panel provides access to a configuration DIP switch and a RESET switch. Fig. 1-3: Right View of SGPAT1013-100 DIP Switch and Reset button Before you make any changes to DIP switch settings, make sure that the power has been turned off. -
Page 12: Lpt And Rfd Function
TX port to the remote converter’s TX port, and the link status of the remote TX port will become off. Link status LED will also be off for both SGPAT10xx-100 and its link partner. PoE Technology... - Page 13 SGPAT10xx-100 User Guide IEEE 802.3at (Max. PoE output power consumption up to 30W) is an updated standard in progress referred to as PoE plus or 802.3at introduces increases available power. Numerous non-standard schemes had been used prior to PoE standardization to provide Power over Ethernet cabling. Some are still in active use.
-
Page 14: Installation
Power requirement: 100~240 VAC, 50~60Hz. Connect to an AC power source with AC power cord. Wall Mount Installation (Optional) For some applications, you will find it convenient to mount SGPAT10xx-100 on the wall using the wall mount holes on the side of the unit (shown below). Desktop Installation (Optional) For other applications, you will find it convenient to mount SGPAT10xx-100 using the four provided adhesive-backed rubber feet (location shown above). -
Page 15: Cabling Requirements
SGPAT10xx-100 User Guide Cabling Requirements To help ensure a successful installation and keep the network performance good, please take care on the cabling requirement. Cables with worse specification will render the LAN to work poorly. Cabling Requirements for TP The grade of the cable must be Cat. 5e with a maximum length of 100 meters. -
Page 16: Applications
1. SGPAT10xx-100 connected to IP CAM (PD) The following is a simple example to illustrate how to use SGPAT10xx-100 PoE PSE Media Converter to set up your system, and to test if your SGPAT10xx-100 functions normally. Use a suitable fiber cable to connect these two SGPAT10xx-100s, use Ethernet cables to connect the PC to the SGPAT10xx-100, and connect the IP CAM as shown in Fig. -
Page 17: Lpt (Link Pass Through) Applications
Note: The Link through (LPT) function only takes effect with the LPT DIP switch in the ‘Enable’ position. The SGPAT10xx-100 can support the following two LPT typical applications: 1. Converter to Converter in pairs Fig. 4-1: Normal status via LPT converter Fig. -
Page 18: Converter Connects To Fiber Switch
SGPAT10xx-100 User Guide 2. Converter Connects to Fiber Switch Fig. 4-4: Normal status via LPT converter Fig. 4-5: The status as TP Cable A is broken Fig.4-6: The status as Fiber Cable B or C is broken Indicates LNK/ACT LED Lit Note : ●... -
Page 19: Appendix A - General Specifications
SGPAT10xx-100 User Guide Appendix A - General Specifications Feature Description 100~240VAC, 50~60Hz Power Requirement 35 W Power Consumption 0 to 40C Operating Temperature -20 to 70C Storage Temperature 5% to 90% Humidity 158(W) x 40(H) x 133(D) mm Dimensions 0.44kg... -
Page 20: Service
This warranty is your only remedy. No other warranties, such as fitness for a particular purpose, are expressed or implied. Transition Networks is not liable for any special, indirect, incidental or consequential damages or losses, including loss of data, arising from any cause or theory. - Page 21 Non-warranted products that are repaired by Transition Networks for a fee will carry a 180-day limited warranty. All warranty claims are subject to the restrictions and conventions set forth by this document.
- Page 22 All warranty claims are subject to the restrictions and conventions set forth by this document. Transition Networks reserves the right to charge for all testing and shipping incurred, if after testing, a return is classified as “No Problem Found.”...
- Page 23 10900 Red Circle Drive Minnetonka, MN 55343 USA Tel: 952- 941-7600 or 1-800-526-9267 Fax: 952-941-2322 Copyright© 2011, 2012 Transition Networks All rights reserved. Printed in the U.S.A. SGPAT10xx-100 10/100/1000Base-T to 1000Base-SX/LX PoE PSE+ GbE Media Converter User Guide, 33515 Rev. A 33515 Rev.
