SBFTF10xx-26x
Stand Alone Media Converter
User's Guide
• 10/100 Bridging (4-Port)
• Copper to Fiber
• 10Base-T/100Base-TX to 100Base-FX

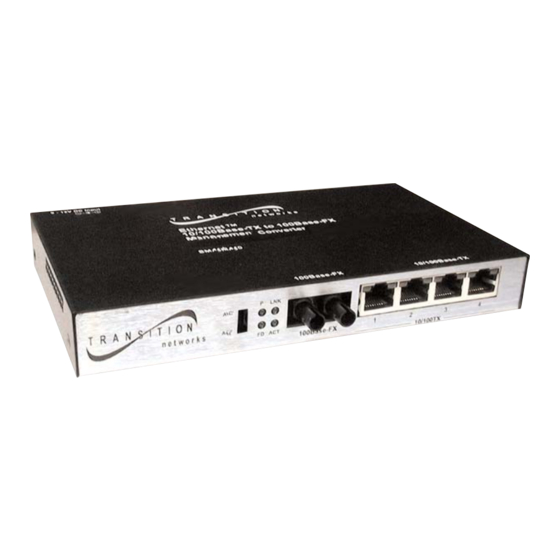

The SBFTF10xx-26x 4-port Ethernet/Fast Ethernet bridging media converter
connects 10Base-T Ethernet and/or 100Base-TX Fast Ethernet twisted-pair copper
network devices to network devices on a 100Base-FX Fast Ethernet fiber network.
Part Number
Copper
10Base-T/100Base-TX
SBFTF1011-260
RJ-45 (4 ports)
100 m (328 ft)*
SBFTF1013-260
RJ-45 (4 ports)
100 m (328 ft)*
SBFTF1014-260
RJ-45 (4 ports)
100 m (328 ft)*
SBFTF1015-260
RJ-45 (4 ports)
(long haul)
100 m (328 ft)*
SBFTF1016-260
RJ-45 (4 ports)
(extra long haul)
100 m (328 ft)*
SBFTF1017-260
RJ-45 (4 ports)
(long wavelength)
100 m (328 ft)*
* Typical maximum cable distance.
Actual distance is dependent upon the
physical characteristics of the network
installation.
Duplex Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
SC, 1310 nm single mode
60 km (37.2 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .4
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .9
Troubleshooting . . . . . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBFTF1011-260 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks SBFTF1011-260

Summary of Contents for Transition Networks SBFTF1011-260

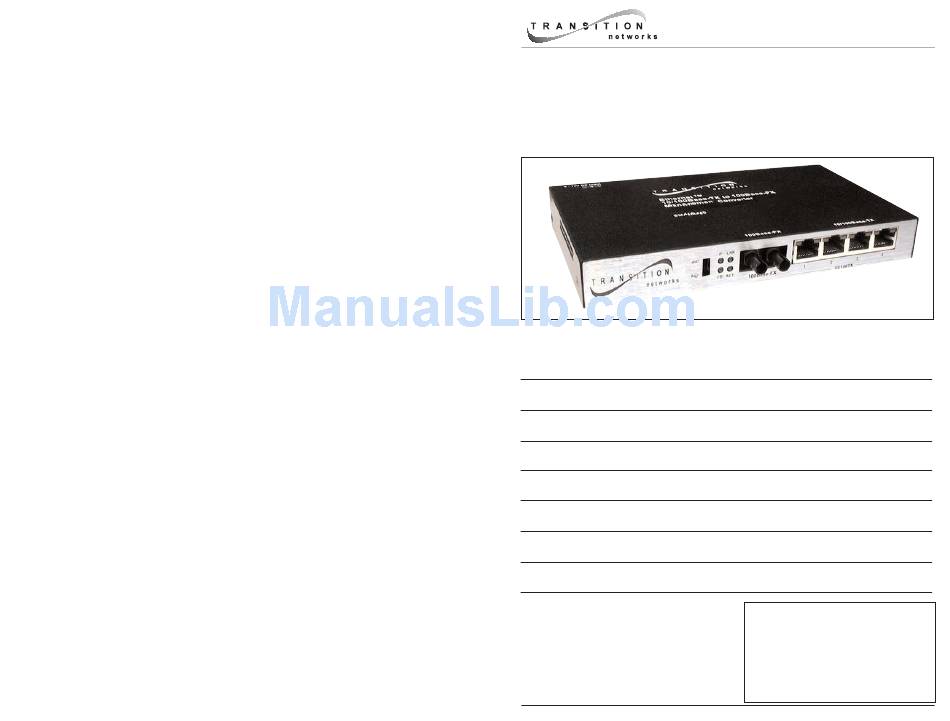

  • Page 1 10Base-T Ethernet and/or 100Base-TX Fast Ethernet twisted-pair copper network devices to network devices on a 100Base-FX Fast Ethernet fiber network. Part Number Copper Duplex Fiber-Optic 10Base-T/100Base-TX 100Base-FX SBFTF1011-260 RJ-45 (4 ports) ST, 1300 nm multimode 100 m (328 ft)* 2 km (1.2 miles)* SBFTF1013-260 RJ-45 (4 ports)

  • Page 2: Installation

    SBFTF10xx-26x Part Number Copper Simplex Fiber-Optic SBFTF1029-260 ** RJ-45 (4 ports) SC, 1310 nm (TX)/1550 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles)* SBFTF1029-261 ** RJ-45 (4 ports) SC, 1550 nm (TX)/1310 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles)* SBFTF1029-262 *** RJ-45 (4 ports)

  • Page 3: Operation

    SBFTF10xx-26x Operation Status LEDs Use the status LEDs to monitor the media converter and the network connections. P(ower) On = Connection to external AC or DC power. L(i)NK On = Fiber link connection. F(ull) D(uplex) On = Full-duplex connection on the fiber link. Off = Half-duplex connection on the fiber link.

  • Page 4: Auto-Negotiation

    <10-9 single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm SBFTF1011-260 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB...

  • Page 5: Copper Cable

    SBFTF10xx-26x Cable Specifications -- Continued Copper Cable Category 3: (Minimum requirement for 10 Mb/s operation) Gauge 24 to 22 AWG Attenuation 11.5 dB/100m @ 5-10 MHz Maximum Cable Distance 100 meters Category 5: (Minimum requirement for 100 Mb/s operation) Gauge 24 to 22 AWG Attenuation 22.0 dB /100m @ 100 MHz...

  • Page 6: Troubleshooting

    SBFTF10xx-26x Troubleshooting If the media converter fails, isolate and correct the failure by determining the answers to the following questions and then taking the indicated action: Is the “P” (power) LED illuminated? • Is the power cord properly installed in the media converter and at the external power source? •...

  • Page 7: Compliance Information

    Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: SBFTF10xx-26x Series Media Converters Part Number(s): SBFTF1011-260, SBFTF1013-260, SBFTF1014-260, SBFTF1015-260, SBFTF1016-260, SBFTF1017-260, SBFTF1029-260, SBFTF1029-261, SBFTF1029-262, SBFTF1029-263 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SBFTF10xx-26x to which this declaration refers is in conformity with the following standards.
