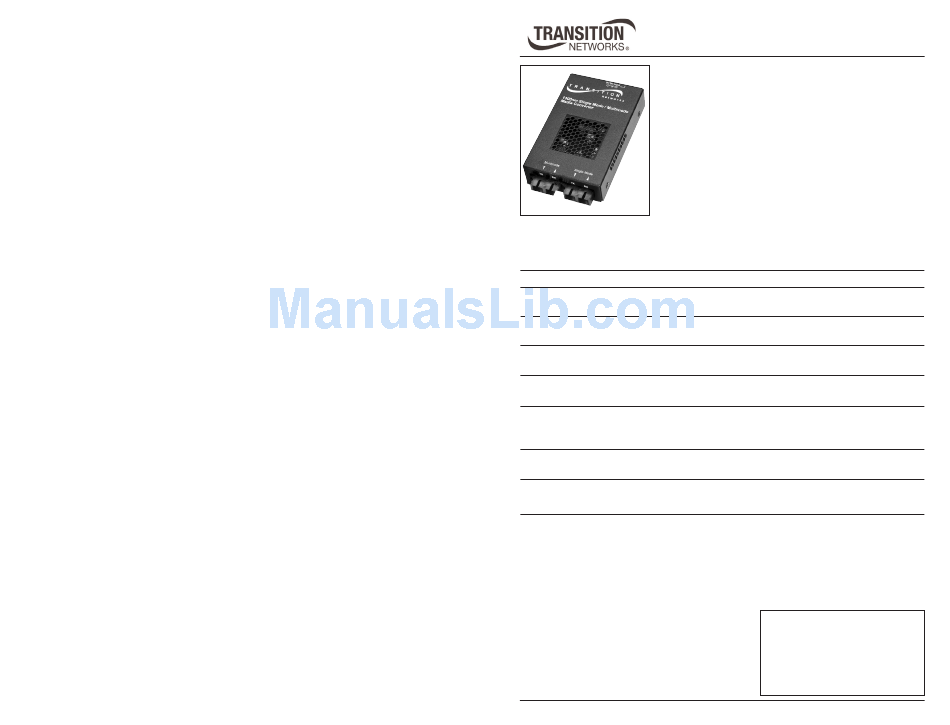

SFMFFxxxx-2xx User's Guide
•
Stand-Alone Media Converter
•
Fast Ethernet, ATM, SONET, or Gigabit

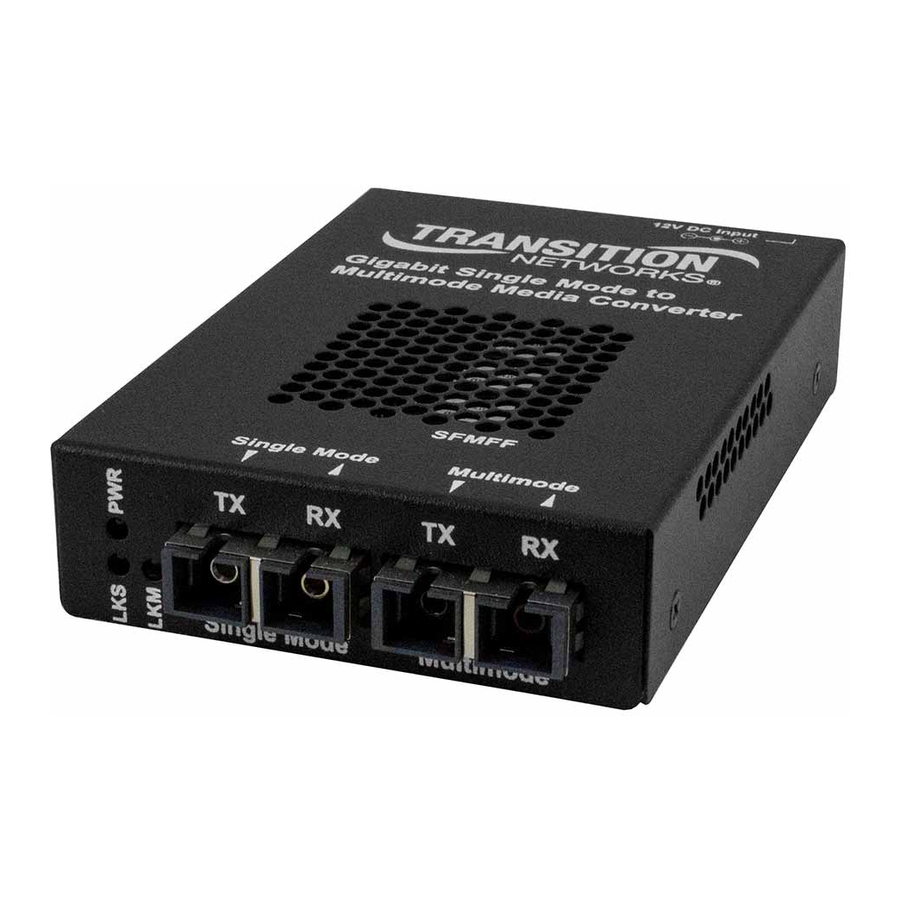

Transition Networks SFMFFxxxx-2xx series media
converters extend both multimode and single mode
interfaces to single mode fiber optic cable over Fast
Ethernet, ATM, SONET, and Gigabit networks.
1.25 Gb/s cable speed:
The models with the -22x extensions are for cable speeds of 1.25 Gb/s and can
extend gigabit Ethernet over a single mode fiber up to 125 km.
Part Number
Port One - Fiber-Optic
SFMFF1313-220 SC, 850 nm multimode
220 m (721 ft)**
SFMFF1314-220 SC, 850 nm multimode
220 m (721 ft)**
SFMFF1315-220 SC, 850 nm multimode
220 m (721 ft)**
SFMFF1317-220 SC, 850 nm multimode
220 m (721 ft)**
SFMFF1324-220 SC, 850 nm multimode
220 m (721 ft)**
SFMFF1335-220 SC, 850 nm multimode
220 m (721 ft)**
SFMFF1414-220 SC, 1310 nm, single mode
10km (6.2 miles)
*Typical maximum cable distance. The actual distances is dependent upon the
physical characteristics of the network installation. TX = transmit, RX = receive.
**Minimum cable distance: 2 meters, typical maximum cable distance:
220 meters for 160/500MHz•Km
270 meters for 200/500MHz•Km
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
Port Two - Fiber-Optic
SC, 850 nm multimode
220 m (721 ft)**
SC, 1310 nm single mode
10 km (6.2 miles)*
SC, 1310 nm single mode
25 km (15.5 miles)*
SC, 1550 nm single mode
65 km (40.3 miles)*
SC, 1300 nm extended multimode
up to 2 km (1.2 miles)*
(62.5 / 125 fiber only)
SC, 1550 nm single mode
125 km (77.5 miles)*
SC, 1310 nm, single mode
10km (6.2 miles)
Installation . . . . . . . . . . . . . . . . .6
Operation . . . . . . . . . . . . . . . . . .7
Cable Specifications . . . . . . . . . .8
Technical Specifications . . . . . .13
Troubleshooting . . . . . . . . . . . .14
Contact Us . . . . . . . . . . . . . . . .15
Compliance Information . . . . . .12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks SFMFF1313-220
Summary of Contents for Transition Networks SFMFF1313-220
- Page 1 Ethernet over a single mode fiber up to 125 km. Part Number Port One - Fiber-Optic Port Two - Fiber-Optic SFMFF1313-220 SC, 850 nm multimode SC, 850 nm multimode 220 m (721 ft)** 220 m (721 ft)** SFMFF1314-220 SC, 850 nm multimode...
- Page 2 SFMFFxxxx-2xx 1.25 Gb/s cable speed -- continued The models with the -22x extensions are for cable speeds of 1.2Gb/s and can extend gigabit Ethernet over a single mode fiber up to 125 km. SFMFF1329-220 SC, 850 nm, multimode SC, 1310 nm (TX) / 1550 nm (RX) 220 m (721 ft)** SM single fiber, 20 km (12.4 miles)* SFMFF1329-221 SC, 850 nm, multimode...
-
Page 3: Optional Accessories
SFMFFxxxx-2xx 622 Mb/s cable speed: The models with the -210 extension are for cable speeds of 622 Mb/s and extend ATM or SONET over single mode fiber up to 60 km. Part Number Port One - Fiber Optic Port Two - Fiber-Optic SFMFF1316-210 SC, 1300 nm multimode SC, 1310 nm single mode... -
Page 4: Installation
SFMFFxxxx-2xx Installation Install the fiber cable CAUTION: Both connections (Port 1 and Port 2) to the SFMFFxxxx-2xx media converter must be of the same network speed and network protocol. Failure to observe this caution will cause data transfer to fail. Locate or build IEEE 802.3™... -
Page 5: Cable Specifications
CFMFFxxxx-2xx Cable Specifications The physical characteristics must meet or exceed IEEE 802.3™ specifications. Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm 155 Mb/s fiber specifications Bit Error Rate: <10-9 SFMFF1313-200 ports 1 & 2 1310 nm single mode Fiber Optic Transmitter Power: min: -19.0 dBm... - Page 6 -7.0 dBm Port 1: Fiber-optic Transmitter Power: Fiber-optic Receiver Sensitivity: Link Budget: max: +2.0 dBm max: -7.0 dBm Port 2: SFMFF1313-220 Fiber-optic Transmitter Power: Fiber-optic Receiver Sensitivity: Link Budget: SFMFF1314-220 Fiber-optic Transmitter Power: Fiber-optic Receiver Sensitivity: Link Budget: SFMFF1315-220...
-
Page 7: Technical Specifications
SFMFFxxxx-2xx 1.25 Gb/s fiber specifications -- continued SFMFF1414-220 Ports 1 & 2 1310 nm single mode Fiber-optic Transmitter Power: min: -9.5 dBm Fiber-optic Receiver Sensitivity: min: - 20 dBm Link Budget 10.5 dB SFMFF1329-220 1310 nm (TX) / 1550 nm (RX) single mode Fiber-optic Transmitter Power: min: -8.0 dBm... -
Page 8: Troubleshooting
Model: SFMFFxxxx-2xx Series Media Converters Part Number(s): SFMFF1313-200, SFMFF1329-200, SFMFF1329-201, SFMFF1329-202, SFMFF1329-204, SFMFF1329-205, SFMFF1414-200, SFMFF1415-200, SFMFF1429-200, SFMFF1429-201,SFMFF1429-202,SFMFF1429-203, SFMFF1316-210, SFMFF1317-210, SFMFF1717-210, SFMFF1313-220, SFMFF1314-220, SFMFF1315-220, SFMFF1317-220, SFMFF1324-220, SFMFF1335-220, SFMFF1414-220, SFMFF1329-220, SFMFF1329-221 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SFMFFxxxx-2xx to which this declaration refers is in conformity with the following standards. -
Page 9: Compliance Information
Compliance Information CE Mark FCC regulations This equipment has been tested and found to comply with the limits for a Class A & B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
