Stand-alone media converter

Advertisement

Quick Links

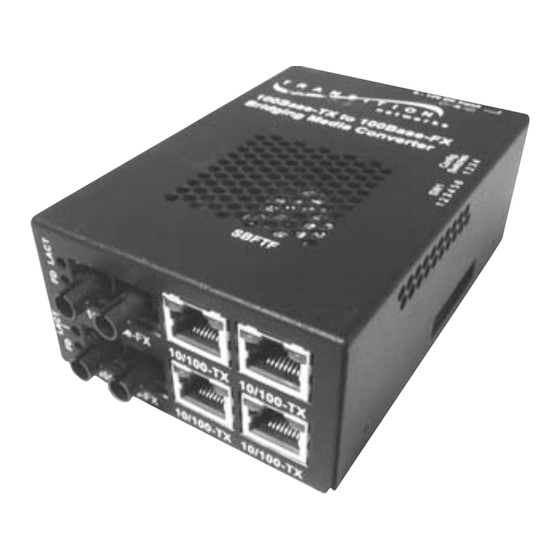

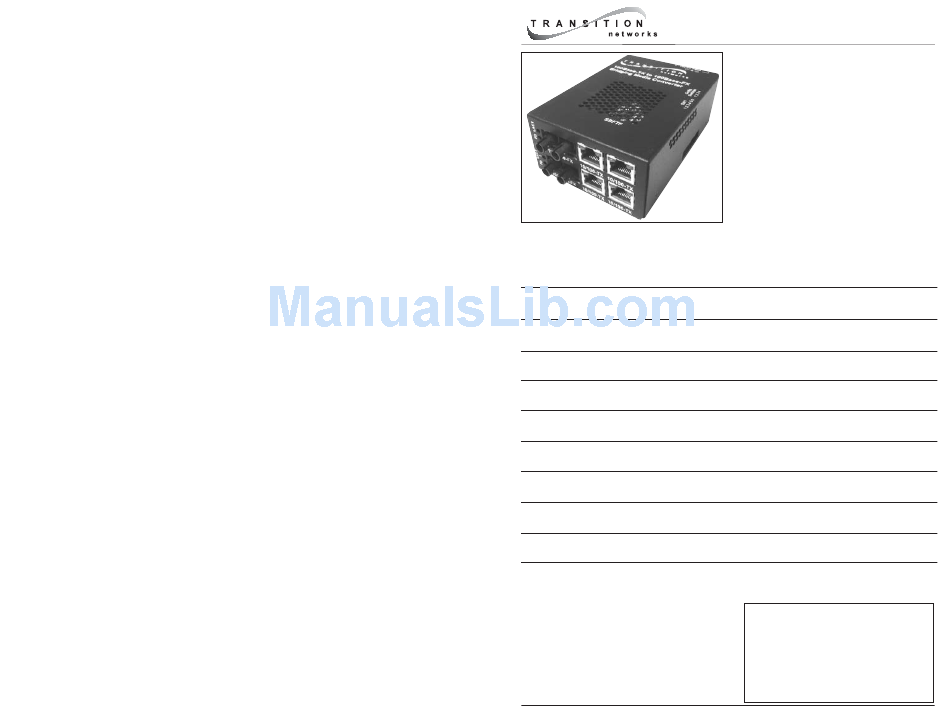

The SBFTF10xx-14x 6-port Ethernet/Fast Ethernet bridging media converter allows
connection of 10Base-T Ethernet and/or 100Base-TX Fast Ethernet twisted-pair
copper network devices to network devices on a 100Base-FX Fast Ethernet fiber
network.
Part Number
Copper - four (4) ports
10Base-T/100Base-TX
SBFTF1011-140
RJ-45
100 m (328 ft)*
SBFTF1013-140
RJ-45
100 m (328 ft)*
SBFTF1014-140
RJ-45
100 m (328 ft)*
SBFTF1015-140
RJ-45
(long haul)
100 m (328 ft)*
SBFTF1016-140
RJ-45
(extra long haul)
100 m (328 ft)*
SBFTF1017-140
RJ-45
(long wave length)
100 m (328 ft)*
SBFTF1018-140
RJ-45
100 m (328 ft)*
SBFTF1025-140
RJ-45
100 m (328 ft)*
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network.
User's Guide
SBFTF10xx-14x
Stand-Alone Media Converter
• Copper to Fiber
• 10/100 Bridging 6-Port
• (4 copper / 2 fiber)
• 10/100Base-TX to 100Base-FX
Duplex Fiber-Optic - two (2) ports
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
SC, 1310 nm single mode
60 km (37.2 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
MT-RJ, 1310 nm single mode
5 km (3.1 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .8
Cable Specifications . . . . . . . . . .12
Technical Specifications . . . . . . .13
Troubleshooting . . . . . . . . . . . . .14
Compliance Information . . . . . . .15
Contact Us . . . . . . . . . . . . . . . . .16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBFTF1011-140 and is the answer not in the manual?

Questions and answers

Summary of Contents for Transition Networks SBFTF1011-140

  • Page 1 100Base-FX Fast Ethernet fiber network. Part Number Copper - four (4) ports Duplex Fiber-Optic - two (2) ports 10Base-T/100Base-TX 100Base-FX SBFTF1011-140 RJ-45 ST, 1300 nm multimode 100 m (328 ft)* 2 km (1.2 miles)* SBFTF1013-140 RJ-45...
  • Page 2: Installation

    SBFTF10xx-14x Part Number Copper - four (4) ports Fiber-Optic - two (2) ports 10Base-T/100Base-TX Single Fiber SBFTF1029-140 RJ-45 SC, 1310 nm (TX)/1550 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles)* SBFTF1029-141 RJ-45 SC, 1550 nm (TX)/1310 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles)* SBFTF1029-142 RJ-45...
  • Page 3 SBFTF10xx-14x Installation -- Continued Set the Dip Switches -- Continued NOTE: Dip switch 4 (in the “SW” set) applies to fiber port 1 (F1). 4. Fiber Mode (Fiber Port 1) Up (Full-Duplex) - The cable distances for fiber port 1 (F1) are constrained by the cable requirements (see pages 1 and 2).
  • Page 4 SBFTF10xx-14x Installation -- Continued Set the Fiber Duplex Jumper (Fiber Port 2) CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the jumper. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter. The jumper (located on the media converter circuit board) sets the full- duplex/half-duplex mode for fiber port 2 (F2).
  • Page 5: Operation

    SBFTF10xx-14x Installation -- Continued Power the Media Converter NOTE: The external power supply provided with this product is UL listed by the power supply’s manufacturer. Connect the barrel connector on the power adapter to the media converter’s power port (located on the back of the media converter). Connect the power adapter plug to AC power.
  • Page 6 SBFTF10xx-14x Operation -- Continued Product Features -- Continued Distance Extension The SBFTF10xx-14x 6-point bridging media converter segments up to four (4) 10Base-T copper Ethernet and/or 100Base-TX copper Fast Ethernet and up to two (2) 100Base-FX fiber Fast Ethernet collision domains. In a half-duplex Ethernet or Fast Ethernet environment, the SBFTF10xx-14x media converter extends network distances by segmenting collision domains so that the 512-Bit Rule applies separately to each collision domain (see page...
  • Page 7: Cable Specifications

    <10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm SBFTF1011-140 1300 nm multimode SBFTF1013-140 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB...
  • Page 8: Troubleshooting

    SBFTF10xx-14x Troubleshooting If the media converter fails, isolate and correct the failure by determining the answers to the following questions and then taking the indicated action: Is the power LED on the media converter illuminated? • Is the power adapter the proper type of voltage and cycle frequency for the AC outlet? (See “Power Supply”...
  • Page 9 Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: SBFTF10xx-14x Series Media Converters Part Number(s): SBFTF1011-140, SBFTF1013-140, SBFTF1014-140, SBFTF1015-140, SBFTF1016-140, SBFTF1017-140, SBFTF1018-140, SBFTF1025-140, SBFTF1029-140, SBFTF1029-141, SBFTF1029-142, SBFTF1029-143, Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SBFTF10xx-14x to which this declaration refers is in conformity with the following standards.
