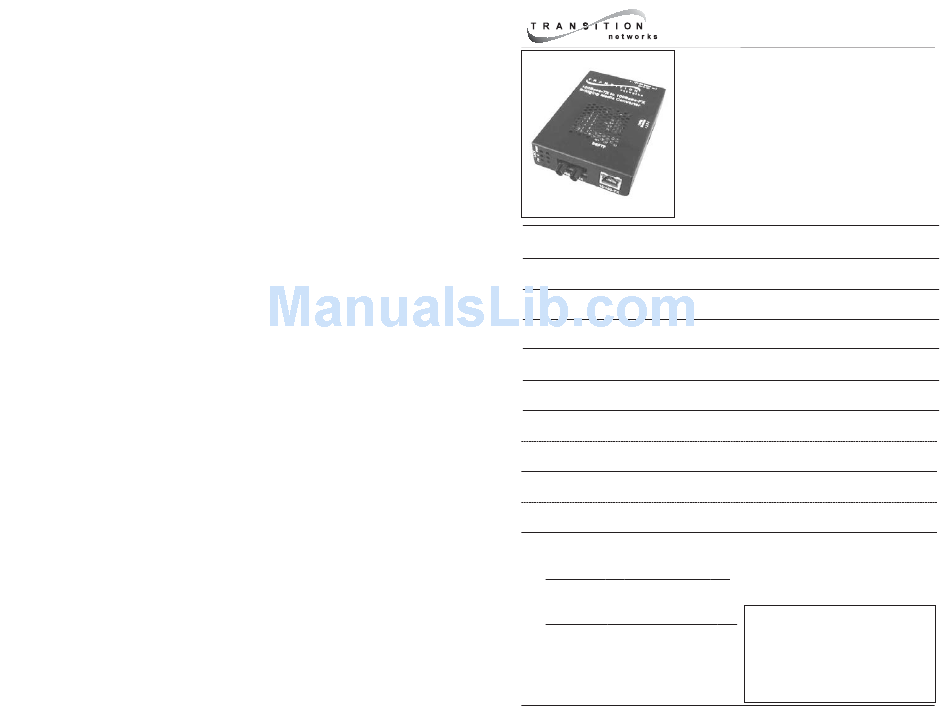

User's Guide
SBFTF10xx-15x
Stand-Alone Media Converter

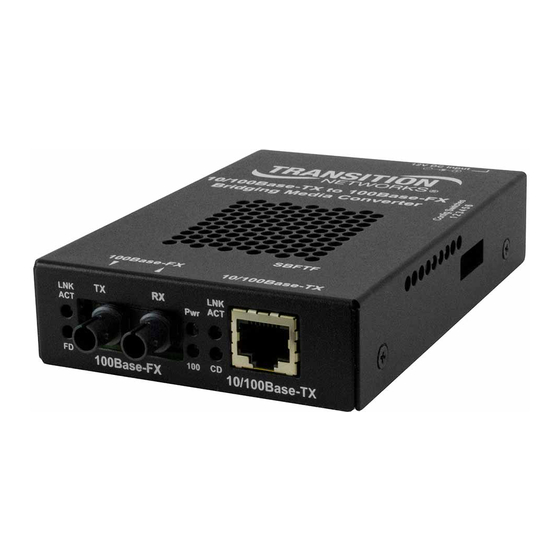

The SBFTF10xx-15x 2-port Ethernet/Fast Ethernet
bridging media converter connects 10Base-T
Ethernet or 100Base-TX Fast Ethernet twisted-pair
copper network devices to network devices on a
100Base-FX Fast Ethernet fiber network.
Part Number
Port One - Copper
10Base-T/100Base-TX
SBFTF1011-150
RJ-45
100 m (328 ft)*
SBFTF1013-150
RJ-45
100 m (328 ft)*
SBFTF1014-150
RJ-45
100 m (328 ft)*
SBFTF1015-150
RJ-45
100 m (328 ft)*
SBFTF1018-150
RJ-45
100 m (328 ft)*
SBFTF1029-150**
RJ-45
100 m (328 ft)*
SBFTF1029-151**
RJ-45
100 m (328 ft)*
SBFTF1029-152***
RJ-45
100 m (328 ft)*
SBFTF1029-153***
RJ-45
100 m (328 ft)*
*
Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network. (TX) = transmit (RX) = receive
**
SBFTF1029-150 and SBFTF1029-151 are intended to be installed in the same
network where one is the local converter and the other is the remote
converter.
*** SBFTF1029-152 and SBFTF1029-153
are intended to be installed in the
same network where one is the local
converter and the other is the remote
converter.
Copper to Fiber
10/100 Bridging (2-Port)
10Base-T/100Base-TX to 100Base-FX
Port Two - Duplex Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 mn (TX)/1550 nm (RX)
single mode, 20 km (12.4 miles)*
SC, 1550 mn (TX)/1310 nm (RX)
single mode, 20 km (12.4 miles)*
SC, 1310 mn (TX)/1550 nm (RX)
single mode, 40 km (24.8 miles)*
SC, 1550 mn (TX)/1310 nm (RX)
single mode, 40 km (24.8 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .9
Troubleshooting . . . . . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBFTF10XX-15X and is the answer not in the manual?

Questions and answers

Summary of Contents for Transition Networks SBFTF10XX-15X

  • Page 1 Copper to Fiber • 10/100 Bridging (2-Port) • 10Base-T/100Base-TX to 100Base-FX The SBFTF10xx-15x 2-port Ethernet/Fast Ethernet bridging media converter connects 10Base-T Ethernet or 100Base-TX Fast Ethernet twisted-pair copper network devices to network devices on a 100Base-FX Fast Ethernet fiber network.
  • Page 2: Installation

    SBFTF10xx-15x Installation CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the 4-position switch. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter. Set the 4-Position Switch • The 4-position switch is located...
  • Page 3: Operation

    Operation Power the Media Converter For DC power, consult the user’s guide for the Transition Networks SPS1872- xx DC external power supply for powering the media converter. NOTE: The external power supply provided with this product is UL listed by the power supply’s manufacturer.
  • Page 4: Cable Specifications

    If the result is less than or equal to 512 BT, the path is good. For more information on the 512-Bit Rule, see the white paper titled “Collision Domains” on the Transition Networks website at: www.transition.com. Copper Cable Maximum cable distance: 100 meters...
  • Page 5: Technical Specifications

    The fiber optic transmitters on this device meet Class I Laser safety requirements per IEC-825/CDRH standards and comply with 21 CFR1040.10 and 21CFR1040.11. 24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600 Technical Specifications For use with Transition Networks Model SBFTF10xx-15x or equivalent. Standards Data Rate: Dimensions Weight Power Consumption: max: -14.0 dBm...
  • Page 6: Troubleshooting

    SBFTF1029-153 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SBFTF10xx-15x to which this declaration refers is in conformity with the following standards. EMC-CISPR 22:1985 Class A; EN 55022:1988 Class A; FCC Part 15 subpart B; 22 CFR subpart J I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
  • Page 7: Compliance Information

    All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2002-2003, 2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks.
