SBFTF1035-105
Fiber-optic Transmitter Power:
Fiber-optic Receiver Sensitivity:
Link Budget: 36dB
SBFTF1039-105
Fiber-optic Transmitter Power:
Fiber-optic Receiver Sensitivity:
Link Budget:
Copper cable maximum cable distance: 100 meters
Category 3: (Minimum requirement for 10 Mb/s operation)
Gauge
Attenuation
Category 5: (Minimum requirement for 100 Mb/s operation)
Gauge
Attenuation
•

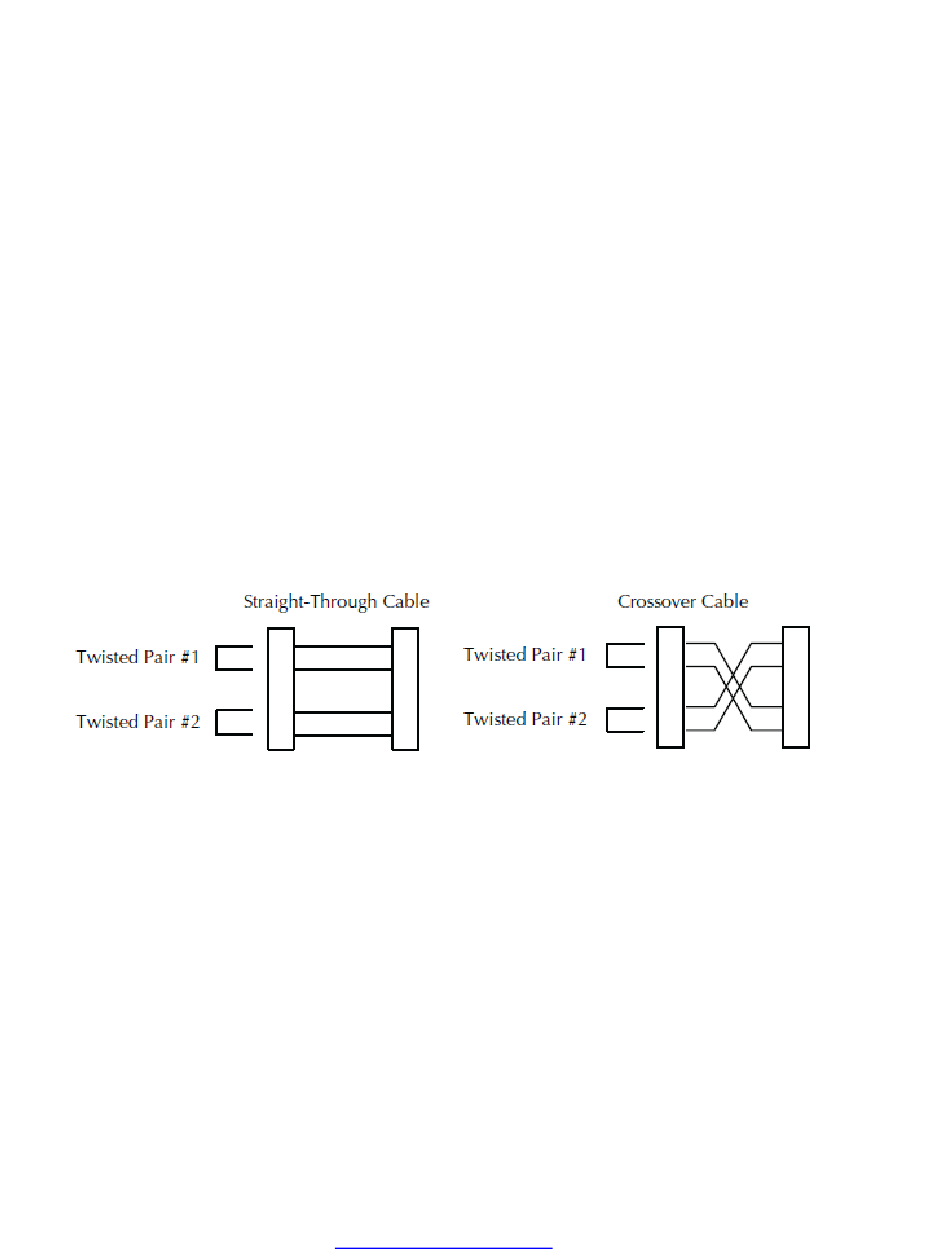

Straight-through (MDI) or crossover (MDI-X) twisted-pair cable must be used.
•
Shielded twisted-pair (STP) or unshielded twisted-pair (UTP) may be used.
•
Pins 1&2 and 3&6 are the two active pairs in an Ethernet network .
•
Use only dedicated wire pairs for the active pins (e.g., blue/white & white/blue, orange/white &
white/orange, etc.)
•
Do not use flat or silver satin wire.
33404 Rev. G
single mode
min: 0.0 dBm
min: -36.0 dBm
multimode
min: -19.0 dBm
min: -30.0 dBm
11db
24 to 22 AWG
11.5 dB/100m @ 5-10 MHz
24 to 22 AWG
22.0 dB /100m @ 100 MHz
