TAG2: Configuration of Altronix Power Supply and/or Sub-Assembly Boards and
1. Fasten standoffs (provided) to pems that match the hole pattern for Altronix power supply/chargers and sub-assemblies (Fig. 2, pg. 4).
Fasten metal standoffs in the correct locations to provide proper grounding, see below (Fig. 2, pg. 4).
Fasten standoffs (provided) to pems that match the hole pattern for AMAG M4000 modules.
2. Mount boards to standoffs utilizing 5/16" pan head screws (provided) (Fig. 2, 2a, pg. 4).
3. Fasten TAG2 backplane to Trove2 enclosure utilizing lock nuts (provided).
Boards
eFlow4NB, eFlow6NB, eFlow102NB, eFlow104NB, ACM8/ACM8CB, ACMS8/ACMS8CB or PoE201
NetWaySP4B
LINQ8PD/ LINQ8PDCB, ACM4/ACM4CB, MOM5, PD4UL/PD4ULCB, PD8UL/PD8ULCB, PDS8/PDS8CB, or VR6
AMAG M4000 Boards

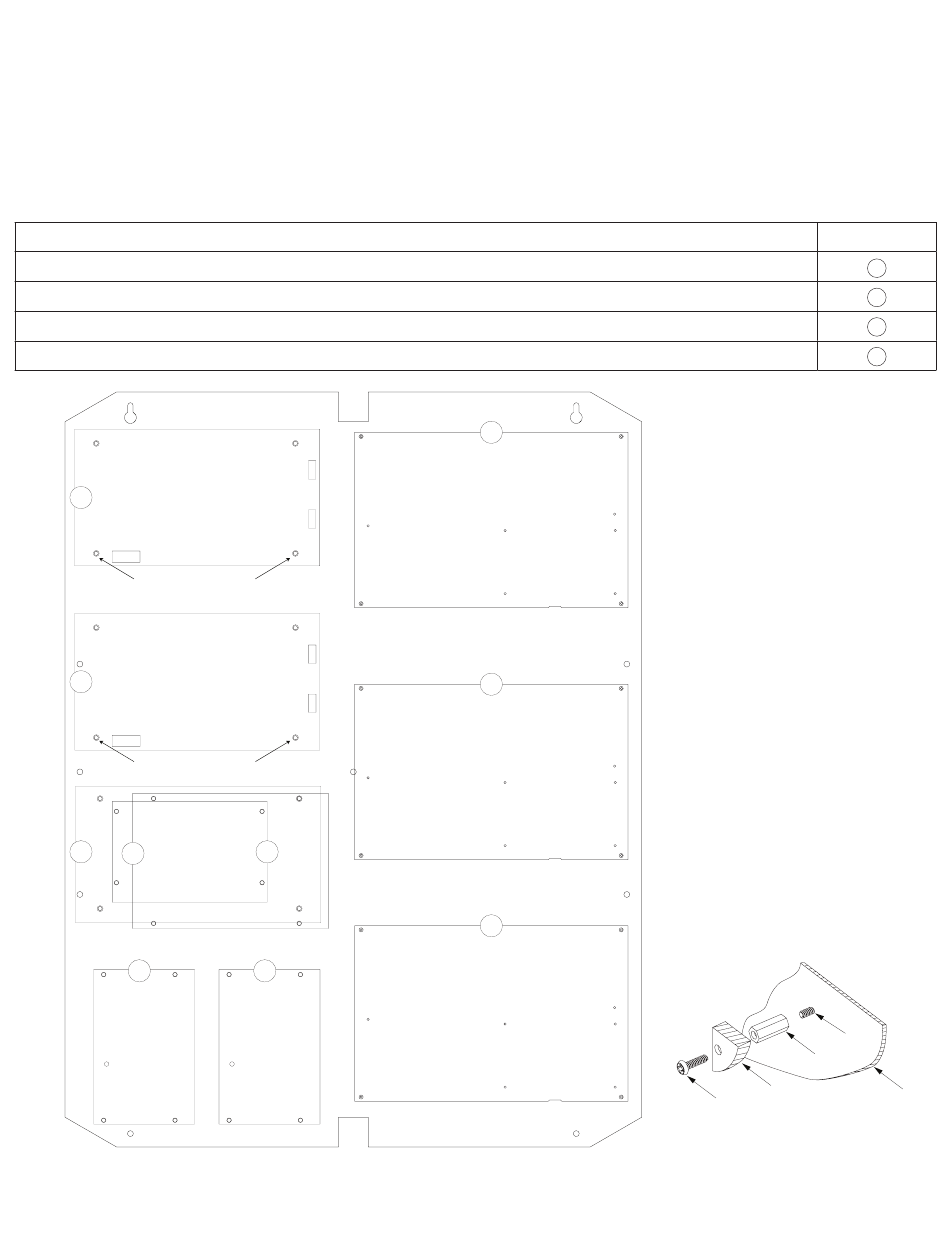

Fig. 2
A
Metal Standoff Placement
A
Metal Standoff Placement
A
B
C
- 4 -
AMAG M4000 Boards
Power Supply, Sub-Assembly and Access Controller
Position Chart for the Following Models:
C
C
D
D
D
Pem Mounting
Pem
Standoff
Power Supply or
Pan Head
Sub-Assembly
Screw
Trove2AG2 / Trove2AM2 / Trove3AM3
A
B
C
D
Fig. 2a
Backplane
