Dosing Pumps - Graf oneAdvanced Operation Manual

9.3.2

Dosing pumps

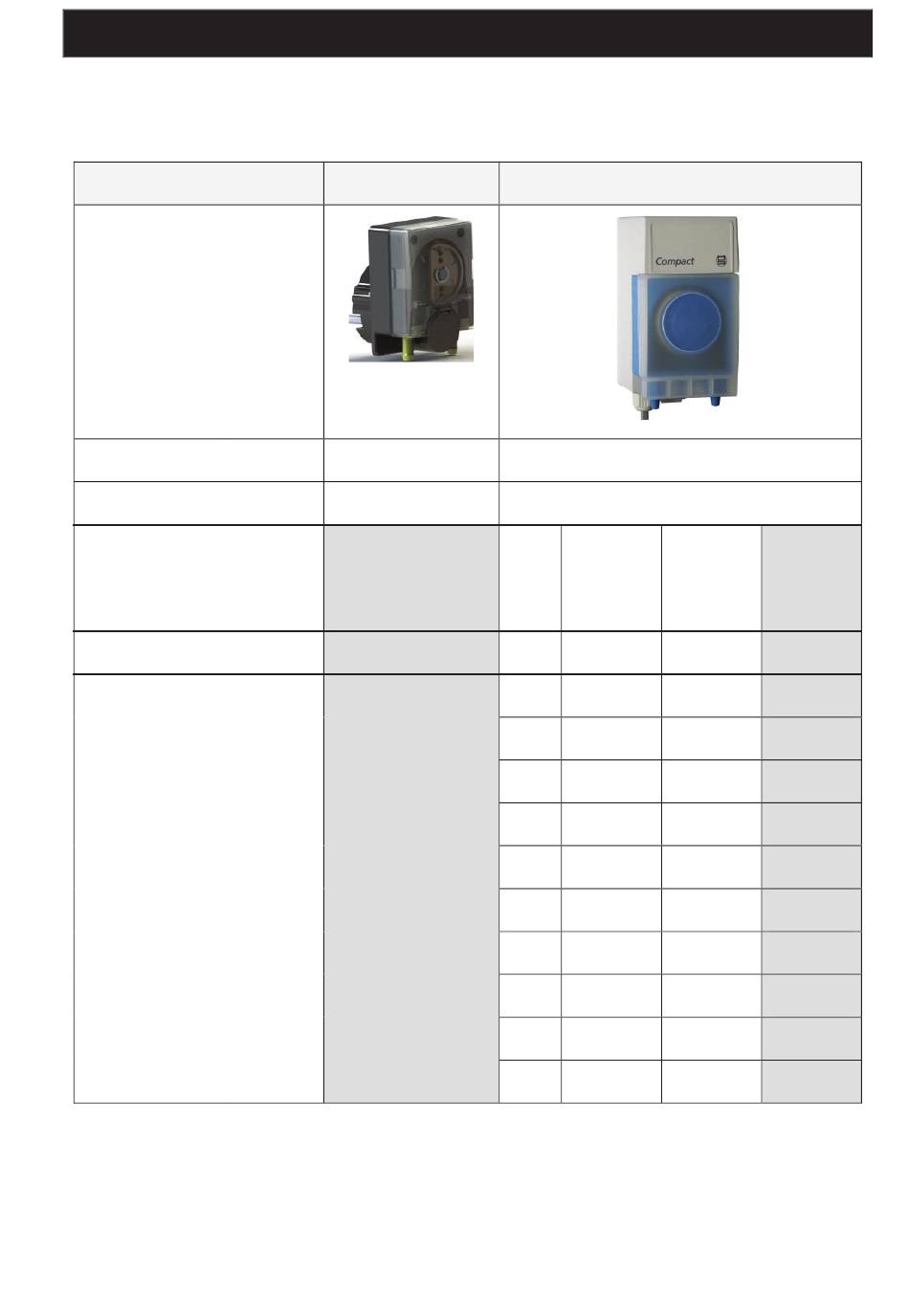

Two types of dosing pumps are used. These can be fitted with various suction lines for a range
of delivery rates. The suction lines fitted as standard are highlighted grey.
Description
Voltage [V]
Rpm [rpm]
Suction line Type
I/E diameter [mm]
Pump capacity [ml/min]
9. Additional controller functions
DP24
DC 24
5
PS 138-3.2x1.6
PH
3.2/6.4
4.4
83 / 137
Compact
DC 24
Variable
PS 138- PS 138-
1.6x1.6 3.2x1.6
PH
P 1.6/4.8 3.2/6.4
1 0.3
2 1.3
3 3.1
4 4.4
5 5.7
6 7.0
7 8.1
8 9.5
9 11.5
10 12.4
PS 140-
4.8x1.6
PH PH
4.8/8.0
1.1 2.0
5.0 10.0
10.9 20.2
16.3 32.3
20.6 39.8
24.9 48.2
29.1 57.7
34.9 69.5
39.9 77.6
44.0 83.4
