3.2.2 Layout of oneAdvanced 10–14 PE
Feed lifter
Inlet DN110
Sludge reservoir / buffer

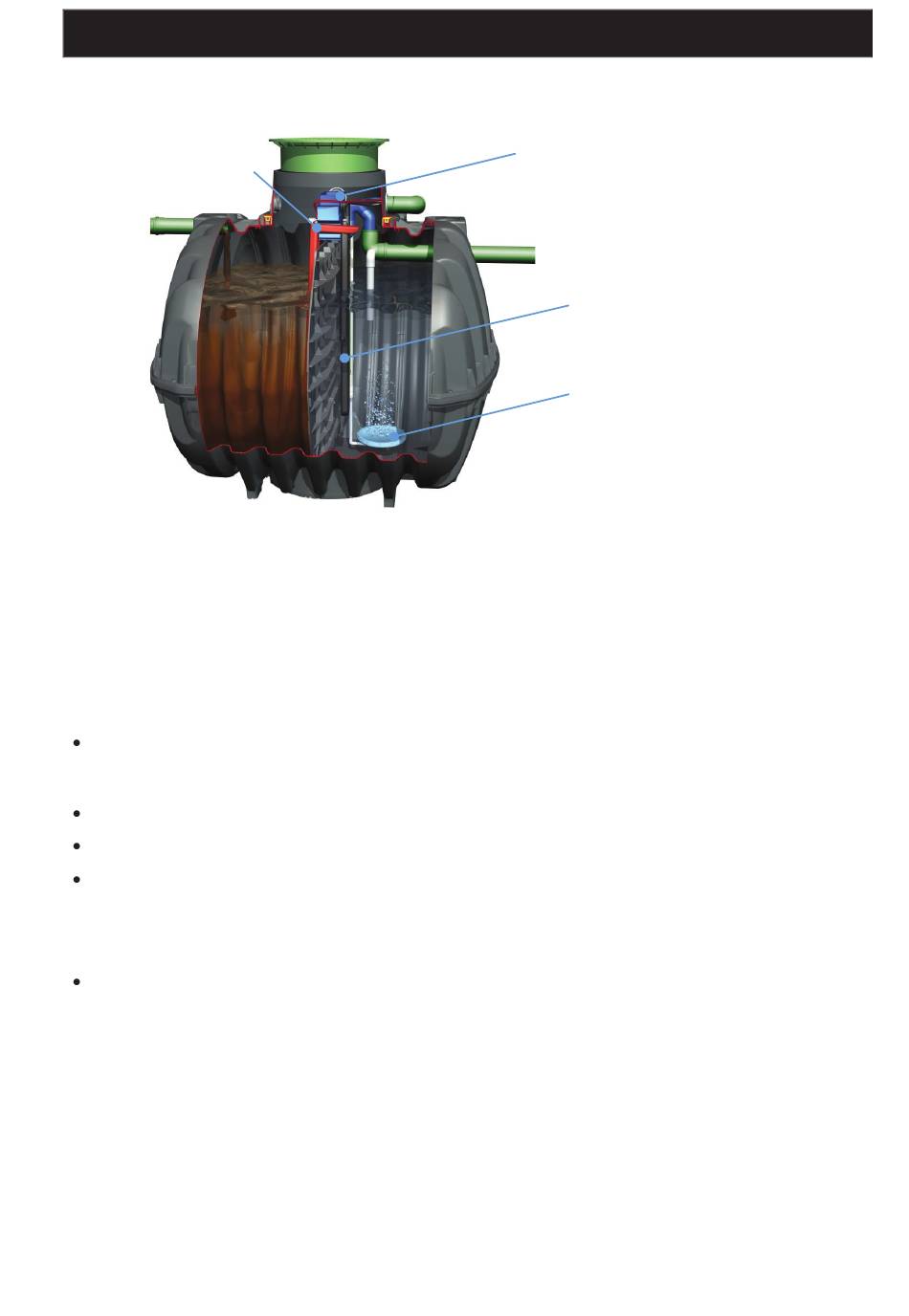

Figure 3: oneAdvanced 10–14 PE in a Carat tank (example)
The tank is split into two areas by a scum guard: a sludge reservoir and buffer in the inlet area
and an SBR reactor in the outlet area.
The wastewater treatment installation kit is fitted to the scum guard. This consists of:
on the sludge reservoir / buffer side:
feed lifter in the form of a mammoth pump with its own air supply (marked in red)
on the SBR reactor side.
a stainless steel pipe with membrane plate aerator
outflow lifter in the form of a mammoth pump with its own air supply (marked in black)
a secondary sludge lifter in the form of a mammoth pump with its own air supply (marked in
white)
above the scum guard:
an integrated water sampling point
3. General
Sampling unit
Outlet DN110
SBR reactor
16 / 137
Clear water lifter
Membrane plate aerator
