3.2 Layout and functions

The basic wastewater treatment plant consists of the following components:
one or two tanks
wastewater treatment installation kit
control cabinet
The wastewater treatment installations in the tanks are connected to the control cabinet via air
hoses laid in the ground.
In the control cabinet, you will find:
a quiet, low-maintenance air compressor
a valve unit
a control unit
3.2.1 Layout of oneAdvanced 3–9 PE
Outlet DN110

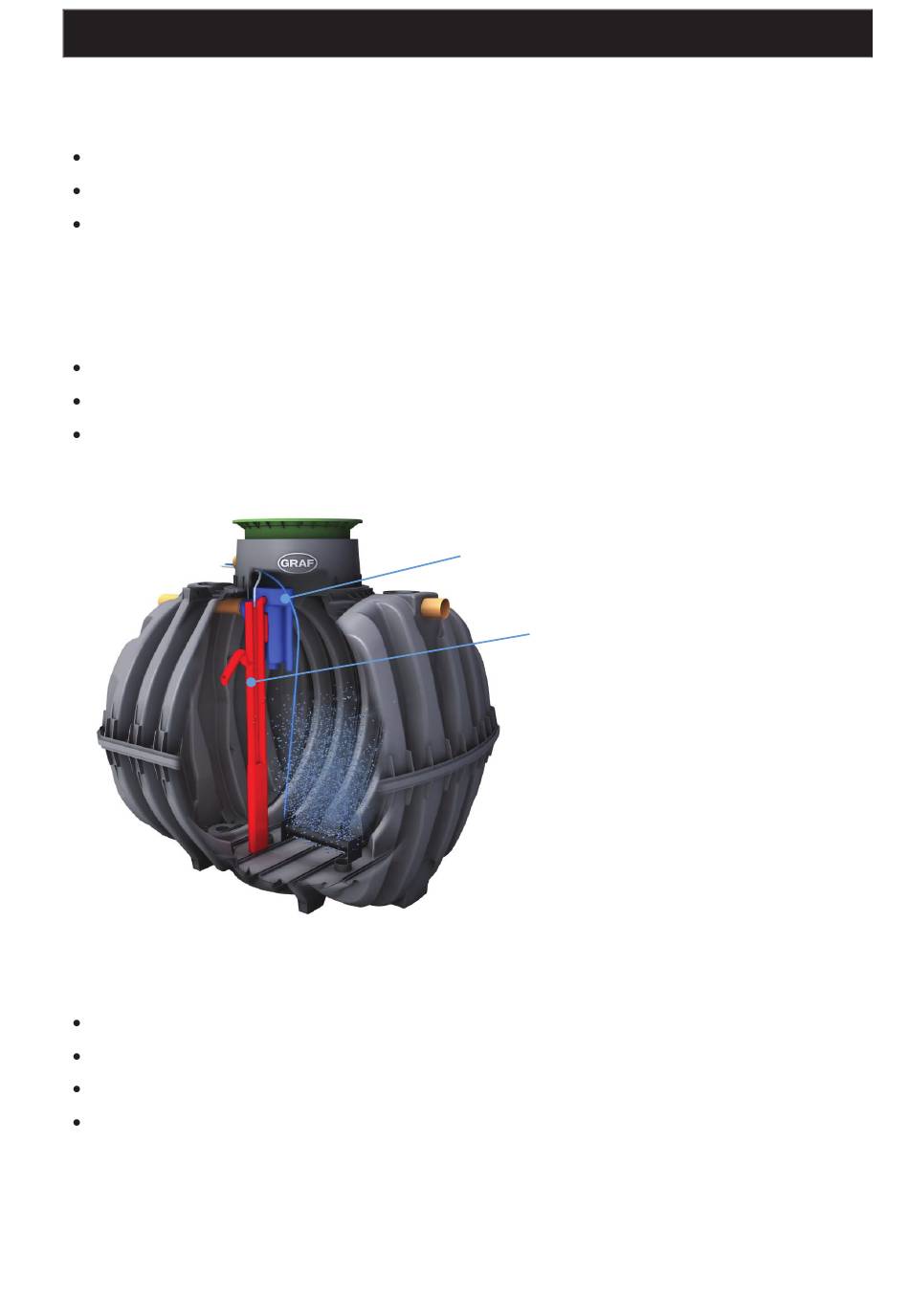

Figure 2: oneAdvanced 3–9 PE in a Carat tank (example)
The tank houses:
a scum guard
two membrane pipe aerators
outflow lifter in the form of a mammoth pump with its own air supply
an integrated water sampling point
3. General
Sampling unit
Inlet DN110
Clear water lifter
