6 Addressable Intelligent Module—AIM -200 Addressable Intelligent Module

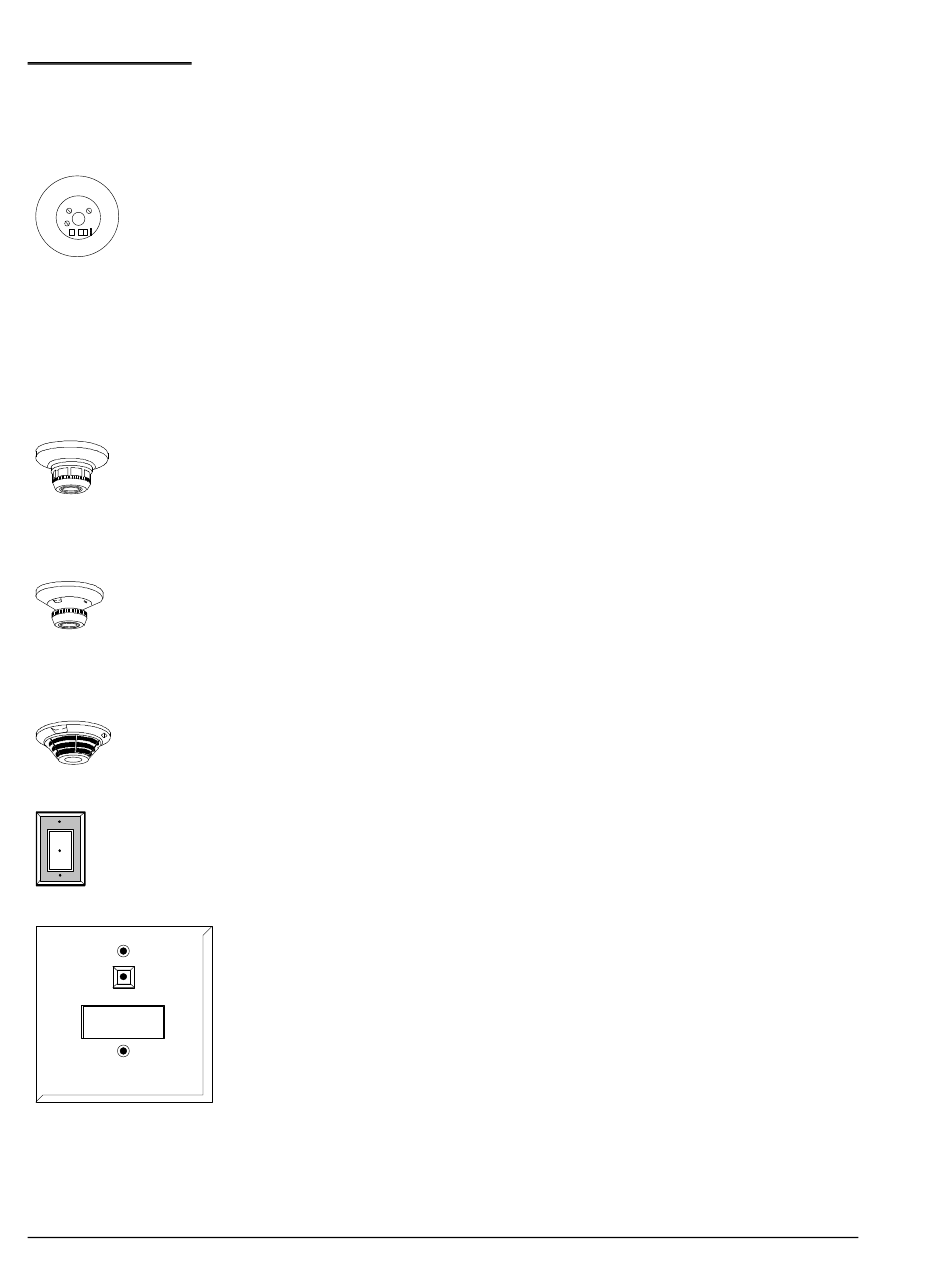

B501BJ Base
These intelligent, addressable detectors provide analog information to
the AIM-200. The AIM -200 processes this analog information and
continually makes decisions on the alarm, maintenance, or normal status
of each device. Each detector head mounts to a B501BJ base for ease of
installation or replacement. The sensitivity of each detector can be set
by the programmer at the AIM -200 for one of three levels (low,
medium, and high). Each detector responds to an address that is set in
the head via built - in rotary decimal switches.
2551J
An intelligent photoelectric smoke detector that provides analog
measurements of the optical smoke level in its chamber to the AIM
panel.
1551J
An intelligent ionization smoke detector that measures the level of
combustion products in its chamber using the ionization principle and
reports this measurement to the AIM -200.
5551J
An intelligent thermal sensor (135 -degree F fixed temperature).
RA400Z
A remote single LED annunciator that can be wired directly off of an
addressable detector for annunciation of that detector's alarm status.
Control and Monitor Modules
The M510CJ control module and the M500MJ monitor module provide
the interface between the FC -2000 and conventional initiating and
indicating devices. Both types of modules respond to an address that is
set by the installer with built -in rotary decimal switches. A flashing LED
indicates power is applied. A thermoplastic cover (illustrated at left) is
provided with each module for mounting to a 4 -inch square mounting
box.
