Unisab III Control
Version 1.10
en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Unisab III and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Johnson Controls Unisab III

Summary of Contents for Johnson Controls Unisab III

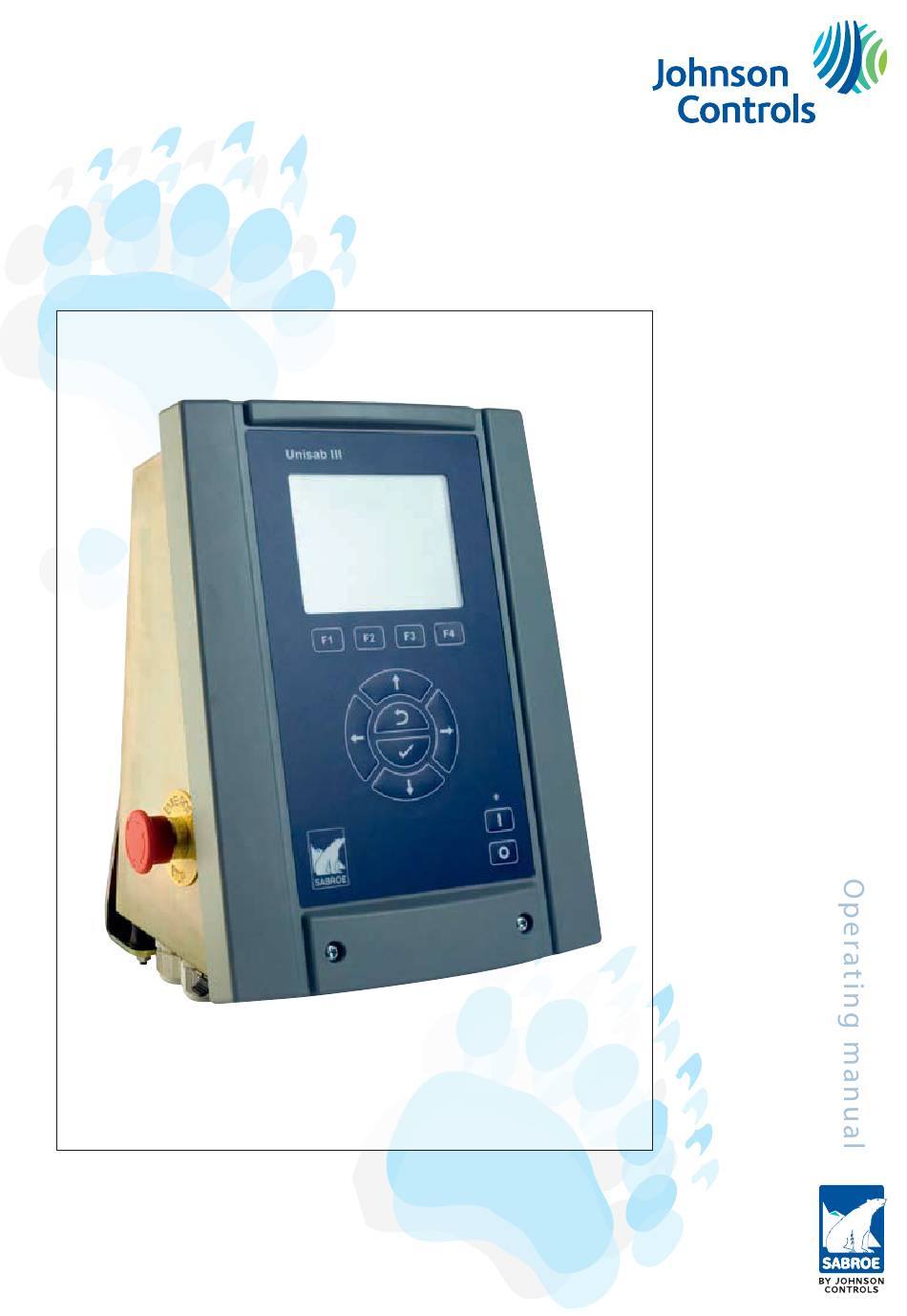

  • Page 1 Unisab III Control Version 1.10...
  • Page 2  ...
  • Page 3 Compressor type ____________________ Refrigerant ________________ Shop no. ______________________________________ Password ______________________________________ Software version ______________________________________ Operating manual - Unisab III control Control system for refrigerating compressors Version 1.10 Operating manual - Unisab III 005650-en 2013.10 1/48...
  • Page 4 Note the version number of this manual. The version number is printed on the preceding page. It is important that this number is identical to the Unisab III version number, which is shown in the picture Service/Diagnosis/Software/Software version. Never use a manual with lower version than Unisab III.
  • Page 5 Before the compressor can be restarted, deactivate the alarm by means of the /RESET key and release the emergency stop. Please note: If Unisab III is set at Remote or Auto, the compressor will restart automatically. Technical data Power supply:...

  • Page 6: Table Of Contents

    1.4. Shutdowns and alarms with identification numbers for reciprocating compressors 1.4.1 Shutdowns and alarms for reciprocating compressors 1.5. Timers 1.5.1 Timer values - screw compressors 1.5.2 Timer values - reciprocating compressors 1.6. Spare parts for Unisab III Operating manual - Unisab III 005650-en 2013.10 4/48...

  • Page 7: Operating Unisab Iii Control

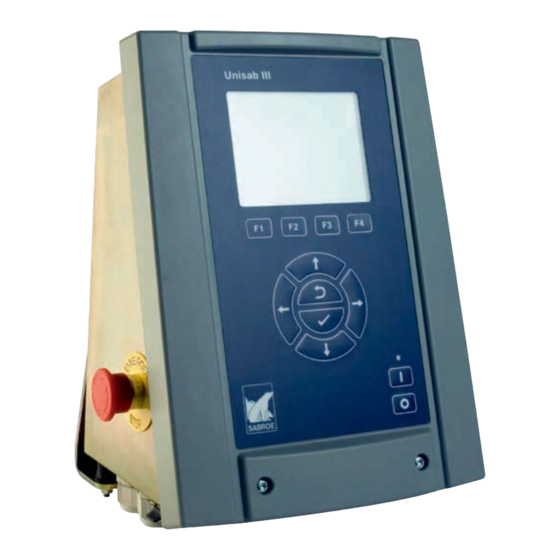

    Unisab III can be linked to and communicate with former Sabroe control units such as Unisab II. Unisab III is operated by means of a front panel as shown in Fig. 3. The front panel is well- arranged with only a few keys and a distinct display.
  • Page 8 Unisab III. Unisab III is operated exclusively by means of the front panel keys. Reading of operating con- ditions as well as changing limiting values and set points is carried out via the display. The display contains a number of different pictures.

  • Page 9: Display

    Fig. 4: Info bar in Unisab III display 1.1.3 Front panel The Unisab III front panel is divided into three sections: The control section - to control the compressor. The menu section - to select menu pictures and change values.
  • Page 10 The Enter (check) key has several functions. When changing the set values, pressing this key will enter the change into the Unisab III memory. To make changes, you must use the pass- word provided by Johnson Controls Denmark. As to the encoding of a password, see section 1.1.6.

  • Page 11: Menu Structure

    The function of each key will always be shown in the display above the key. 1.1.4 Menu structure Unisab III includes a number of different pictures for compressor operation, set values, con- figuration, etc. These pictures are built up in a menu system where a certain picture can be selected by means of the arrow keys.
  • Page 12 Menu level 2 Menu level 3 Menu level 4 Favourites Default User 1 User 2 User 3 User 4 User 5 User 6 Manage favourites Alarms Shutdown Table 1: Unisab III HMI menu tree Operating manual - Unisab III 005650-en 2013.10 10/48...
  • Page 13 (SAB 120-151, SAB 193-355, SAB 157HR) Temperature Limits Control Separator temp. Limits (SAB 120-151, SAB 193-355, SAB 157HR, SABflex) Control (SAB 120-151, SAB 193-355, SAB 157HR, SABflex) Table 2: Unisab III HMI menu tree Operating manual - Unisab III 005650-en 2013.10 11/48...
  • Page 14 Ambient temp. board (VSD/Modbus only) Capacity Values Capacity Control Cap. slide pos. (Not recip.) Vi ratio (SAB157HR, SABflex, SABcube) Vi slide pos. Control (Auto Vi only) Yield Table 3: Unisab III HMI menu tree Operating manual - Unisab III 005650-en 2013.10 12/48...
  • Page 15 Values (Two-stage recip. only) Pressure Bar Limits Pressure Deg. Limits Temperature Limits History Shutdown Control state Measured values Input state Output state No. of shutdowns Table 4: Unisab III HMI menu tree Operating manual - Unisab III 005650-en 2013.10 13/48...
  • Page 16 Zero cap. pos. (screws only) Proficom Rotatune piston (rota rec. only) Sep. velocity (Screws only) Misc. functions Superuser password Examine all parameters Remote monitor Trend Event Table 5: Unisab III HMI menu tree Operating manual - Unisab III 005650-en 2013.10 14/48...
  • Page 17 (VSD/Modbus only) Compressor Block Plant Oil system Communication Dig. in via Profibus (If Profibus Yes) Measuring External input Aux. output (Aux. limits, if aux output) R000 Table 6: Unisab III HMI menu tree Operating manual - Unisab III 005650-en 2013.10 15/48...
  • Page 18 Motor fan (VSD only) P band factor Transfer (Recip. only) Take-over (Recip. only) Session Password Serial number Remote connect User interface Function Interface E-mail Language Table 7: Unisab III HMI menu tree Operating manual - Unisab III 005650-en 2013.10 16/48...

  • Page 19: Session

    In section 1.1.6. Changing set values, you will find a detailed example of how to change a pa- rameter, e.g. a limit value. You can always log into Unisab III even if you are not prompted for a password. Simply choose Current user in the Password picture in the Session menu.
  • Page 20 LOCK symbol. Above the arrow is a number indicating the connected Unisab III compressor number. If Rem. Man Allowed is set to No in the Unisab III then the Manual Remote operation from a SabHMI application will be blocked and you will get the following indication on the SabHMI: “Remote manual operation not allowed”.
  • Page 21 When Unisab III is switched on for the first time the set language will be English (en). Contrast adjustment The display contrast can be adjusted with the keys to make the display lighter and the keys to make the display darker.

  • Page 22: Changing Set Values

    Low shutdown value. To change the low shutdown limit, press You must enter a password to continue. To change this low shutdown limit you must choose a Superuser (or higher level) password. Operating manual - Unisab III 005650-en 2013.10 20/48...
  • Page 23 Before press- you have the possibility to undo the parameter change by pressing instead of . By doing so, the changes you have just made will not be stored in the memory. Operating manual - Unisab III 005650-en 2013.10 21/48...

  • Page 24: Favourites

    In the Manage Favourites picture, press /MANAGE. You are now ready to select values, set points, limits, timers or any other parameter you want to insert or you may “bookmark” into a User favourite. Operating manual - Unisab III 005650-en 2013.10 22/48...
  • Page 25 /BOOKMARK. Unisab III automatically skips back to the Manage Favourites picture. In this picture, place the cursor on the user picture you want to insert the value into, e.g. the User 1 favourite. Press /CONFIRM to insert the actual setpoint into User 1.

  • Page 26: Manual And Auto Operation

    - depending on configuration during commissioning. The built-in capacity limiters and the alarm/shutdown supervision are also active in Auto and Remote. Operating manual - Unisab III 005650-en 2013.10 24/48...

  • Page 27: Shutdown And Alarm Acknowledgement

    An alarm does not stop the compressor. It is indicated by quick yellow flashes in the light diode above the start key. Operating manual - Unisab III 005650-en 2013.10...

  • Page 28: Factory Settings

    Unisab III will restart and display the Favourites/De- fault picture shown in Fig. 1. The reset operation is complete and Unisab III is now restored to its factory settings. Unisab III must then be adjusted to the actual operating conditions. Re- member to fill in the forms for actual settings before making a factory reset.

  • Page 29: Pressure Levels And Temperatures

    VMY Mk 3 compressors Set point 2 10.0 Oil pressure (bar) Low alarm 2+9b Calculated value Low shutdown 2+9b SAB 120-151, SAB 157HR and Set point 1 10.0 SAB 193-233-283-355 Set point 2 20.0 Operating manual - Unisab III 005650-en 2013.10 27/48...
  • Page 30 Oil pump pressure (bar) High shutdown Calculated value High alarm SAB 120-151 and SAB Low alarm 2+5+30 193-233- 283-355 Low shutdown 2+5+31 Table 8: Measured and calculated pressure levels - screw compressors Operating manual - Unisab III 005650-en 2013.10 28/48...

  • Page 31: Measured And Calculated Temperatures - Screws

    High shutdown -999.9 999.9 3+18 User input 1 High alarm -999.9 999.9 3+18 (4-20 mA) Low alarm -999.9 999.9 3+18 Low shutdown -999.9 999.9 3+18 Table 10: 4-20 m User input 1 signal Operating manual - Unisab III 005650-en 2013.10 29/48...

  • Page 32: Measured And Calculated Pressure Levels - Recips

    2+5+32 Diff. pressure across oil filter High shutdown 10.0 2+11a (bar) High alarm 2+11a Calculated value SMC100/ Low alarm TSMC/HPC Low shutdown Table 11: Measured and calculated pressure levels - reciprocating compressors Operating manual - Unisab III 005650-en 2013.10 30/48...

  • Page 33: Measured And Calculated Temperatures - Recips

    High shutdown -999.9 999.9 3+18 User input 1 High alarm -999.9 999.9 3+18 (4-20 mA) Low alarm -999.9 999.9 3+18 Low shutdown -999.9 999.9 3+18 Table 13: 4-20 m User input 1 signal Operating manual - Unisab III 005650-en 2013.10 31/48...

  • Page 34: Measured/Calculated Pressure Levels/Temp. - Hpo/Hpc

    High shutdown -999.9 999.9 3+18 User input 1 High alarm -999.9 999.9 3+18 (4-20 mA) Low alarm -999.9 999.9 3+18 Low shutdown -999.9 999.9 3+18 Table 15: 4-20 mA User input 1 signal Operating manual - Unisab III 005650-en 2013.10 32/48...

  • Page 35: Notes

    (except SAB 80, see Note 20), calculate the following: Oil pressure = Oil pressure 3 (after oil filter) - Suction pressure 1. Note 18 The limits are not active until Ext. inp. s. has been selected in the menu Setup /Configuration/External input. Operating manual - Unisab III 005650-en 2013.10 33/48...
  • Page 36 Note 27 For SABflex and SABCube, the pressure ratio is calculated as Discharge pressure (abs) / Suction pressure (abs). The alarm and shutdown is always active. Operating manual - Unisab III 005650-en 2013.10 34/48...
  • Page 37 Shutdown monitoring is only active if Oil pump is configured and operated. Shutdown is delayed 900 seconds (delay is adjustable). Note 32 Shutdown monitoring is delayed 10 seconds after compressor start (delay is adjustable). Operating manual - Unisab III 005650-en 2013.10 35/48...

  • Page 38: Oil Pressure Calculations

    Oil separator Oil filter Compressor Oil cooler Internal suction pressure Oil pressure 2 Suction pressure (SABflex and SABCube) (between pump and filter) Oil pressure Discharge pressure (before compressor) Fig. 6: Oil pressure calculations Operating manual - Unisab III 005650-en 2013.10 36/48...

  • Page 39: Shutdowns And Alarms With Identification Numbers For Screw Compressors

    Limiter process out (brine) tempera- alarm ture Cooling fan error shutdown Limiter hot water alarm VI position error shutdown Low lubricating pressure alarm + shutdown Liquid slugging shutdown Watch the oil pressure alarm Operating manual - Unisab III 005650-en 2013.10 37/48...
  • Page 40 Start RPM limiter error shutdown Low oil eco pressure alarm + shutdown Low Vi alarm Critical oil circuit pressure shutdown Lube pressure unload alarm Oil pump low pressure alarm + shutdown Operating manual - Unisab III 005650-en 2013.10 38/48...
  • Page 41 Table 16: Shutdowns and alarms with identification numbers for screw compressors For the optional protocols RS2LAN, Profibus DP and Modbus TCP you can also find the ID numbers in the dedicated manuals. Operating manual - Unisab III 005650-en 2013.10 39/48...

  • Page 42: Shutdowns And Alarms With Identification Numbers For Reciprocating Compressors

    Cooling fan error shutdown Limiter, hot water alarm Limiter, discharge temperature (recip) alarm No real time clock alarm No evaporator flow shutdown No condenser flow shutdown High process in temperature alarm + shutdown Operating manual - Unisab III 005650-en 2013.10 40/48...
  • Page 43 Table 17: Shutdowns and alarms with identification numbers for reciprocating compressors For the optional protocols RS2LAN, Profibus DP and Modbus TCP you can also find the ID numbers in the dedicated manuals. Operating manual - Unisab III 005650-en 2013.10 41/48...

  • Page 44: Timers

    39 SSSTV stop delay Sec. 40 Max. start-up time 24000 Sec. 41 Oil return open Sec. 42 Oil return close 32400 Sec. 43 By-pass start Sec. 44 Flow evaporator Sec. 45 Flow condenser Sec. Operating manual - Unisab III 005650-en 2013.10 42/48...
  • Page 45 For SAB 283, SAB 355, GSV, RWF and SAB 330 B. (“B” is short for Booster, which can be selected in the Config. menu). For SAB 330 HP. (HP means Booster = No). For SAB 120→151 and SAB 193→355 prelubrication is not used. Operating manual - Unisab III 005650-en 2013.10 43/48...
  • Page 46 For all compressors except SAB 120→151 and SAB 193→355. For SAB 120→151 and SAB 193→355. Timer 31 For FV17/19 and FV25/26. For SAB xxx HR/SABCube. SABCube Timer 34 For Gram GST and SAB 120→151. For SABCube. Operating manual - Unisab III 005650-en 2013.10 44/48...

  • Page 47: Timer Values - Reciprocating Compressors

    Sec. 46 Oil return evaporator Sec. 47 Oil return delay 1200 Sec. 48 Pump down Sec. 49 PMS delay Sec. 50 Oil pressure low-low Sec. Table 19: Timer values - reciprocating compressors Operating manual - Unisab III 005650-en 2013.10 45/48...
  • Page 48 For compressors configured with Rotatune=No, the timer can be set down to 600 sec- onds. For compressors configured with Rotatune=Yes, the timer can be set down to 60 sec- onds. Timer 17 For discharge superheat. For suction superheat. Operating manual - Unisab III 005650-en 2013.10 46/48...

  • Page 49: Spare Parts For Unisab

    Operating Unisab III control 1.6. Spare parts for Unisab III Item Part number Spare parts set Display front, Sabroe logo 1573.013 Print cassette 85-250 VAC 1573.012 Cable for display front (600 mm) 1554.545 Cable for display front (2000 mm) 1554.546 Pressure transducer Danfoss AKS 3000 -1-9 bar 1) 1373.268...
  • Page 50 Position transmitter for new SAB (XJS, SJF) compressors Description SAB 120 SAB 151 Indicator rod for SS 534B0987H01 534B0872H01 Linear transmitter (3) SS 534C1552H02 534C1552H02 (3) Short stroke, without well. Short stroke linear transmitter assembly, with well: 534C1552H01. Operating manual - Unisab III 005650-en 2013.10 48/48...
