BGX-101
Addressable
Manual Pull
Station
BGX-101L
Installation
The BGX-101L is an addressable manual pull station with a key -lock reset
feature.
1. Connect the communications loop to BGX -101L red wire (+) and
black wire ( -). If additional devices are to be connected to the SLC
loop after the BGX -101L, wire-nut the continuance of the loop to the
red and black wires.
2. The BGX-101L is factory preset with address "00." Set the address
for the pull station by using a screwdriver to turn the rotary address
switches on the back of the unit to the appropriate settings.

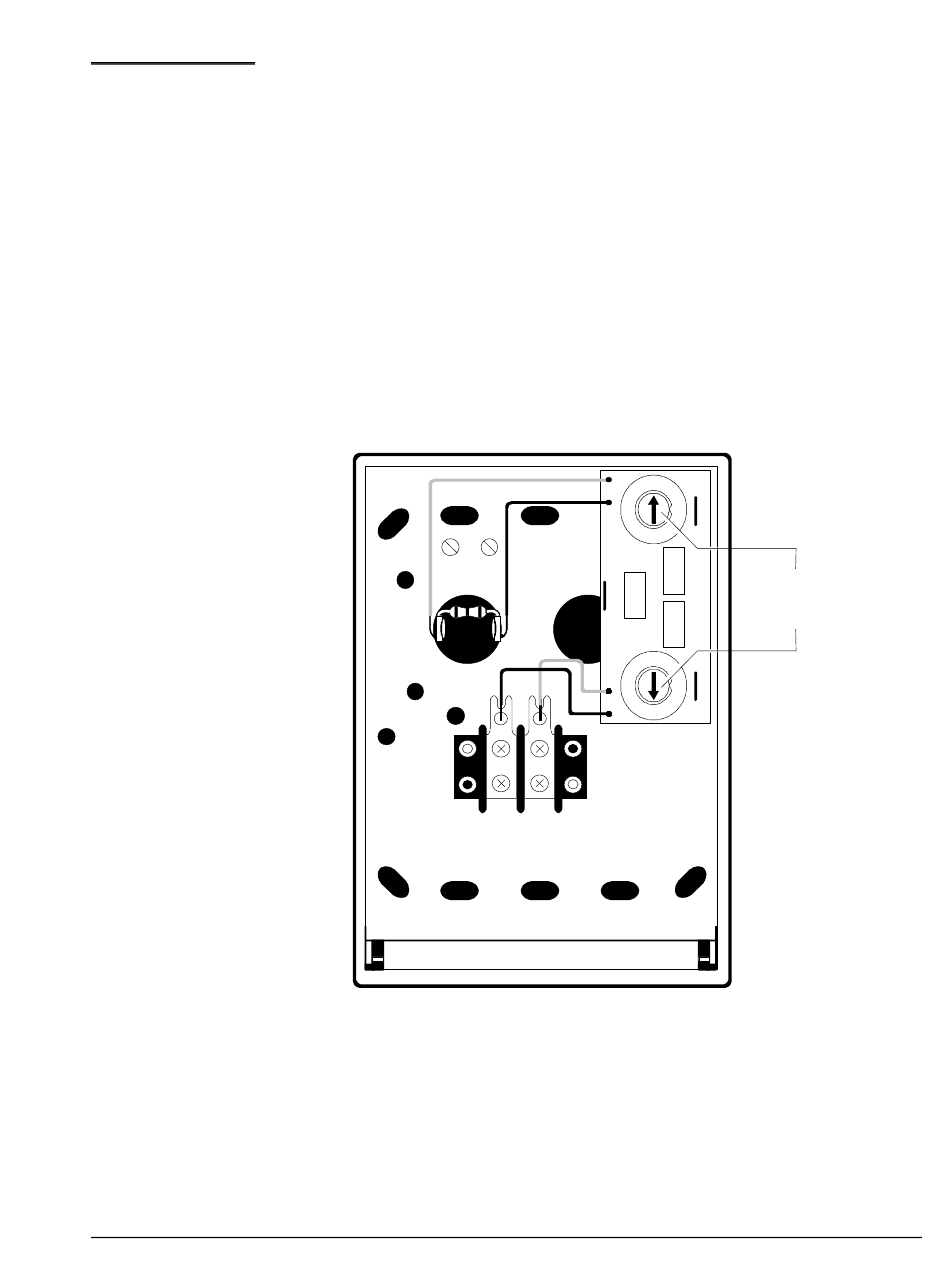

Figure 27: Wiring Addressable Manual Pull Stations
Addressable Intelligent Module—AIM -200 Addressable Intelligent Module 33
